Ford LGT-165
The Ford LGT-165 is a tractor produced by Ford Lawn Tractors. It is equipped with a 588 cc 35.89 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse (two-range). Operating weight: 853 lbs 386 kg.
Engine Power
Gasoline (gross): 16 hp / 11.9 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
infinite forward and reverse (two-range)
Operating Weight
853 lbs
386 kg
Overview
 | 1972 - 1983
Model year 1972-19761977-1983
LGT SeriesGarden tractorJacobsen built
LGT Series
Garden tractor
Jacobsen built |
|---|
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Jacobsen |
Garden tractor | |
Built in Racine, Wisconsin, USA | |
Variants | |
|---|---|
GT-16 | similar Jacobsen model |
Ford LGT-165 Engine | |
|---|---|
16HP Kohler 588cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Ford LGT-165 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Integral mechanical band brakes | |
Open operator station. All-weather cab optional. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 853 lbs
386 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Attachments for Ford Lawn and Garden Tractors published in 1973 | |
Lawn and Garden Tractors published in 1974, by Ford | |
Improve your lot with Ford Lawn and Garden Equipment published in 1976 | |
Attachments for Ford Lawn and Garden Tractors published in 1973 | |
LGT Series Repair Manual (SE 3772) |
Engine
Engine Detail — 588 cc / 35.89 ci Gasoline
Manufacturer | Kohler K341AQS |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 588 cc
35.89 ci |
Bore/Stroke | 3.75x3.25 inches
95 x 83 mm |
Power (gross) | 16 hp
11.9 kW |
Starter volts | 12 |
Oil capacity | 2.25 qts
2.1 L |
Transmission
Transmission — infinite forward and reverse (two-range) shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (two-range) |
 | |
Dimensions
Ford LGT-165 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 71.5 inches
181 cm |
Width | 42 inches
106 cm |
Height (steering wheel) | 42 inches
106 cm |
Weight | 853 lbs
386 kg |
Ground clearance | 5.75 inches (front mounts)
14 cm |
14 inches (frame)
35 cm | |
Clearance (front axle) | 9.1 inches
23 cm |
Clearance (rear axle) | 6.6 inches
16 cm |
Clearance (drawbar) | 8 inches
20 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Ford 6ft Backhoe | |
|---|---|
Backhoe type | Ford 6ft Backhoe |
Photos

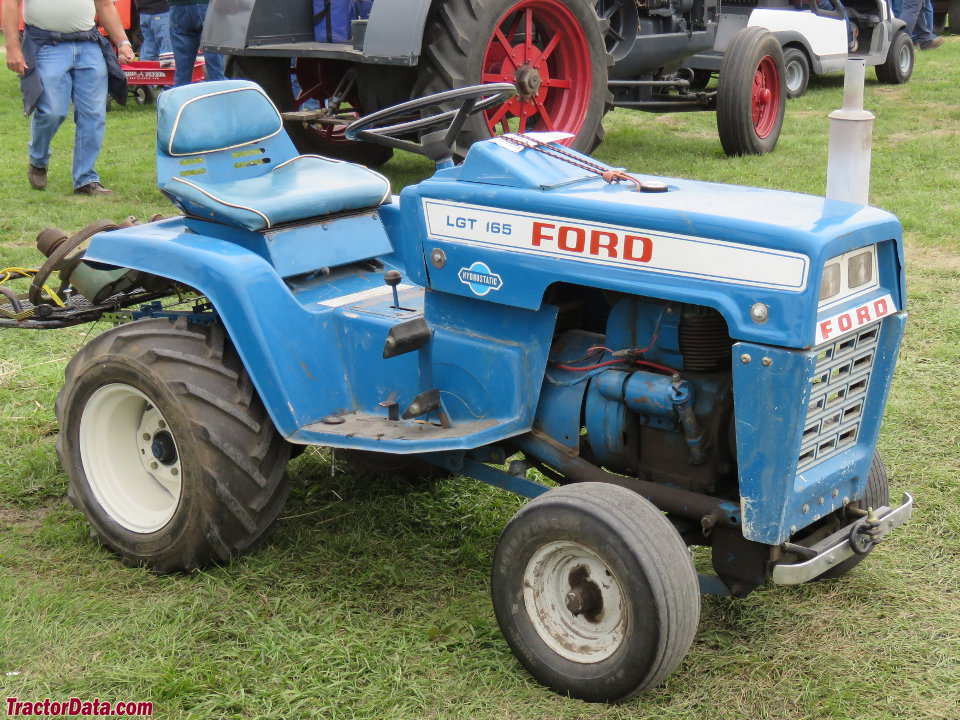

Ford LGT-165

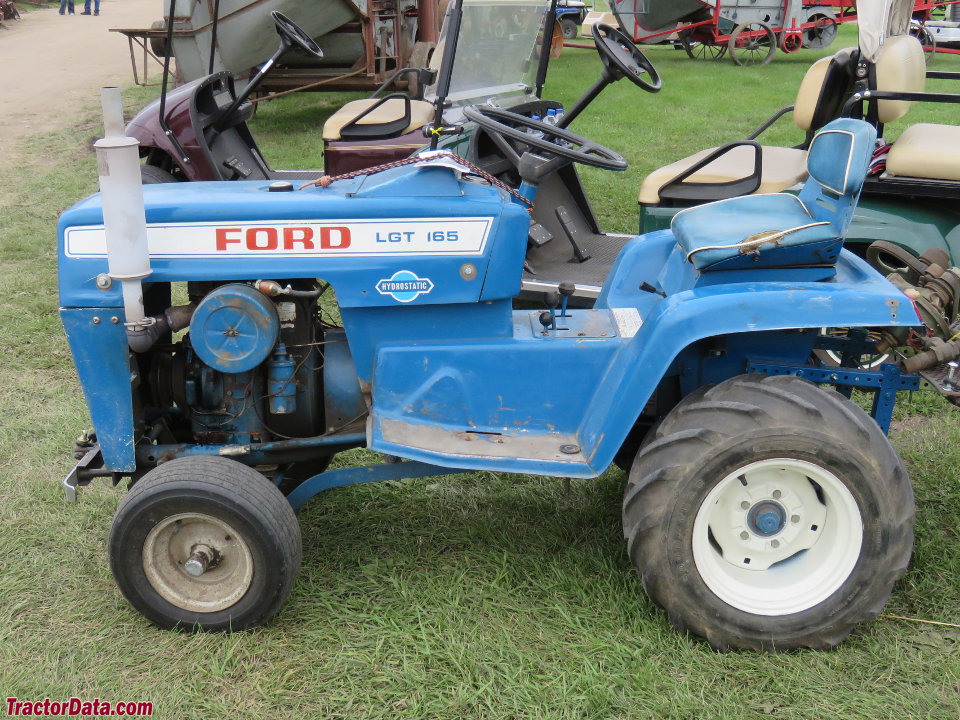

Ford LGT-165

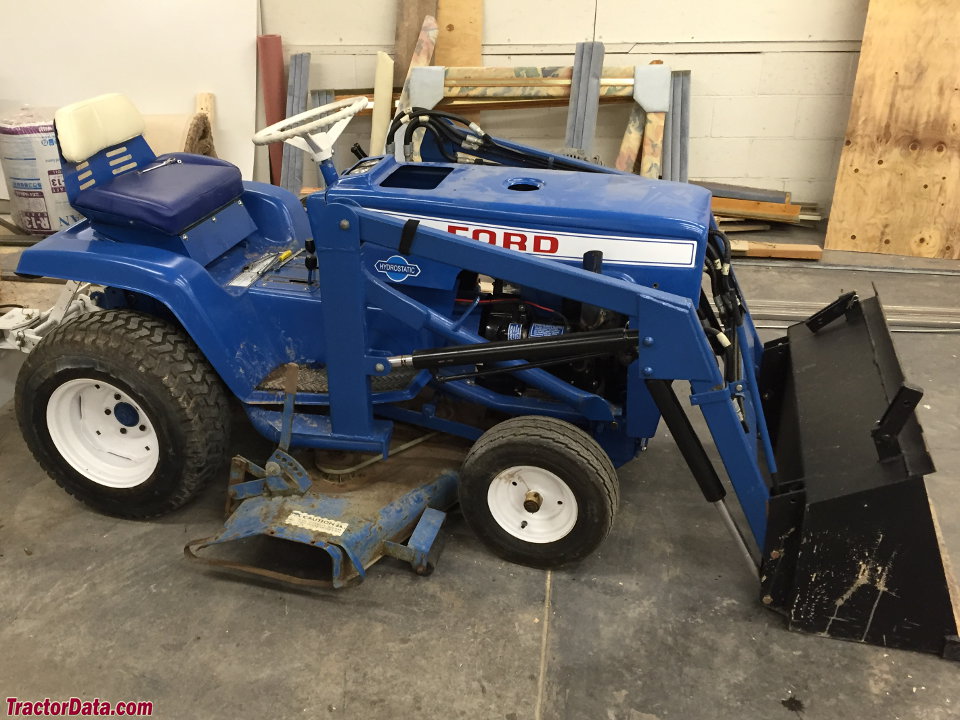

Ford LGT 165 with front-end loader.

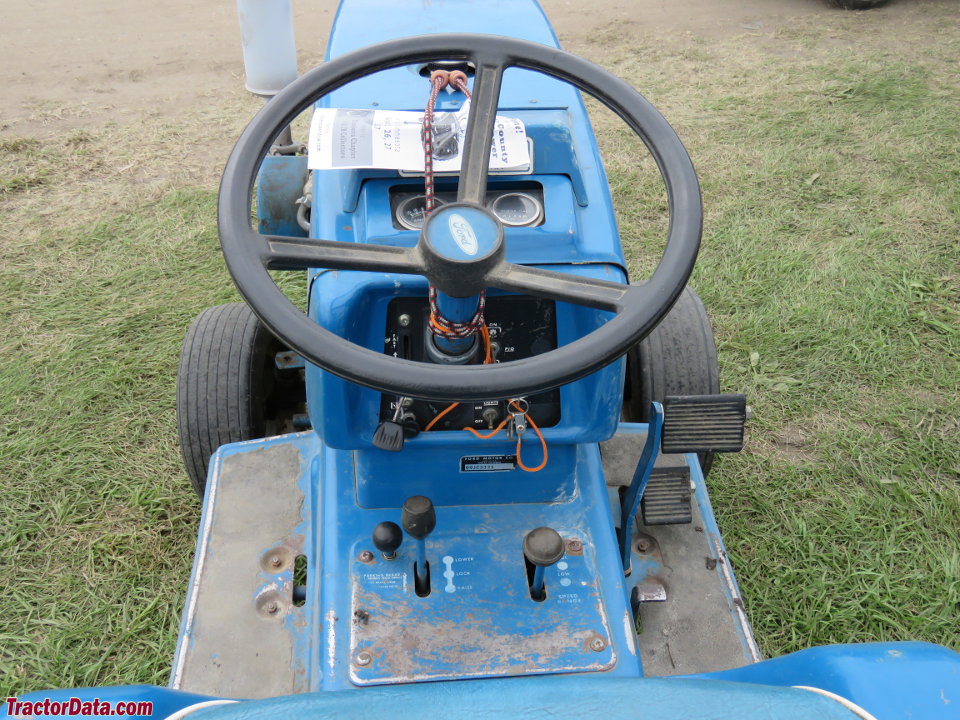

Ford LGT 165 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Ford Lawn Tractors Ford LGT-165 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford LGT-165.
Estimated Continuous Field Runtime: 2.4 hrs
Approximately 2.4 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ford Lawn Tractors Ford LGT-165 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford LGT-165.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
