Ford LGT-16D
The Ford LGT-16D is a tractor produced by Ford Lawn Tractors. It is equipped with a 676 cc 41.3 ci engine. The listed engine power is Diesel (gross): 16 hp / 11.9 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 815 lbs 369 kg.
Overview
 | 1989 - 1991
Garden tractorShibaura built
Garden tractor
Shibaura built |
|---|
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Shibaura |
Garden tractor | |
Ford LGT-16D Engine | |
|---|---|
16HP Shibaura 676cc 3-cyl diesel | |
Fuel tank | 4.2 gal
15.9 L |
Engine details ...  | |
Ford LGT-16D Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO | optional |
Rear PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 47.2 inches
119 cm |
Weight | 815 lbs
369 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 332 |
Battery volts | 12 |
References | |
|---|---|
 | |
The Leisure Pleasers published in 1991, by Ford | |
LGT-14D LGT-16D published in 1989, by Ford |
Engine
Engine Detail — 676 cc / 41.3 ci Diesel
Manufacturer | Shibaura E673 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 676 cc
41.3 ci |
Bore/Stroke | 2.54x2.52 inches
65 x 64 mm |
Power (gross) | 16 hp
11.9 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Oil capacity | 3 qts
2.8 L |
Coolant capacity | 3 qts
2.8 L |
Transmission
Transmission — infinite forward and reverse (2-range) shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 8.6 qts
8.1 L |
 | |
Dimensions
Ford LGT-16D Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x10.5-12 |
Dimensions | |
|---|---|
Wheelbase | 47.2 inches
119 cm |
Length | 70.9 inches
180 cm |
Width | 47.6 inches
120 cm |
Weight | 815 lbs
369 kg |
Ground clearance | 6.3 inches
16 cm |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

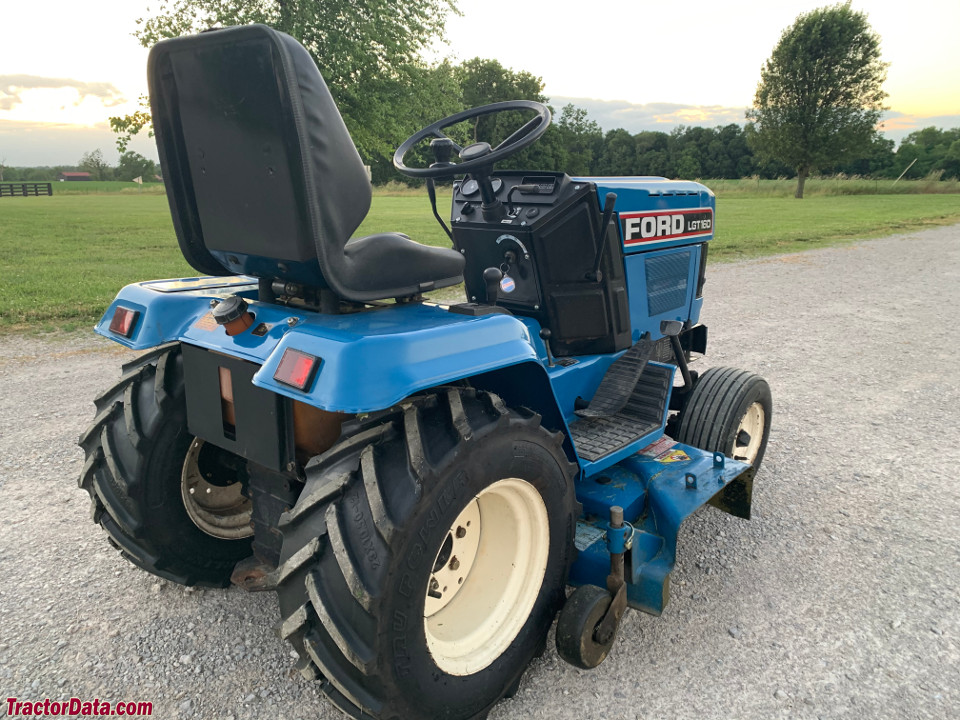

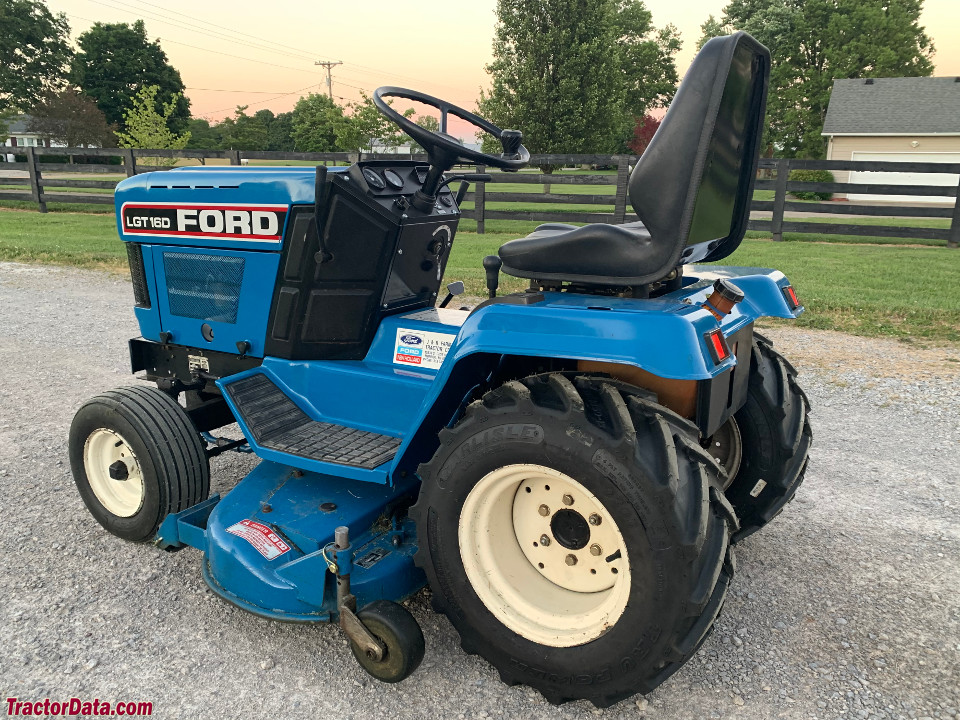

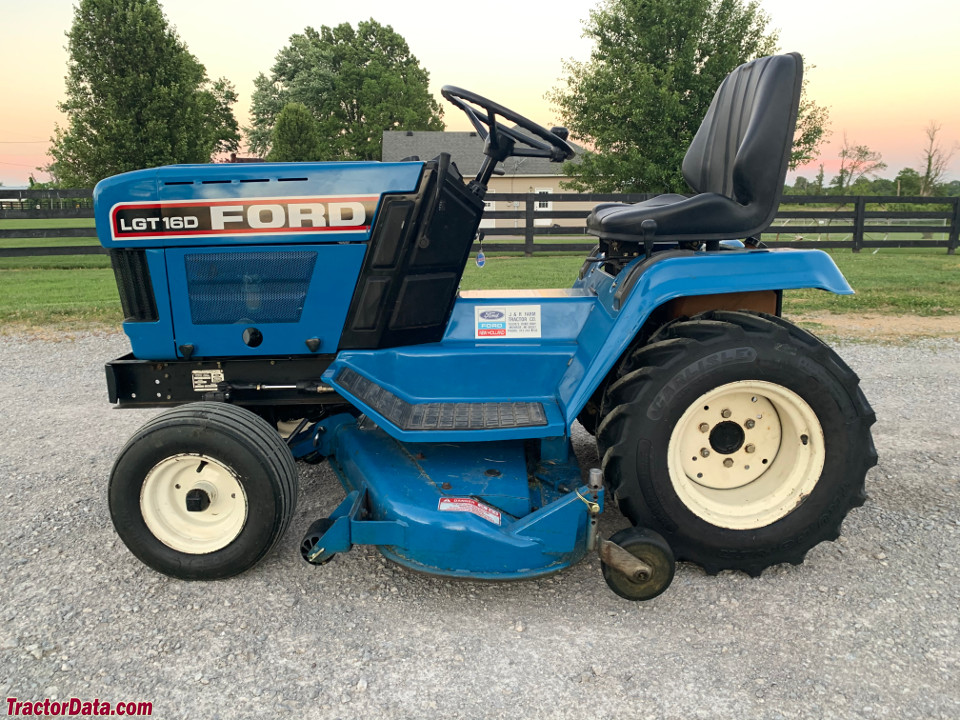

Ford LGT16D with mower deck.
Ford LGT16D with mower deck.
Ford LGT16D with mower deck.

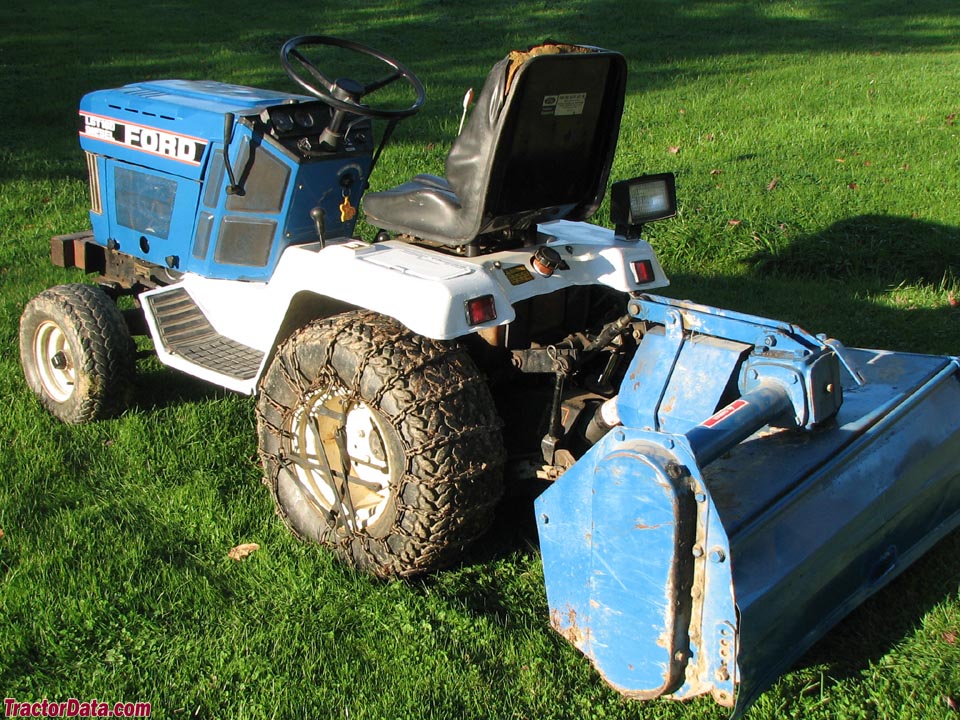

Ford LGT16D with tiller.ew
Ford LGT16D with tiller.ew
Ford LGT16D with tiller.ew

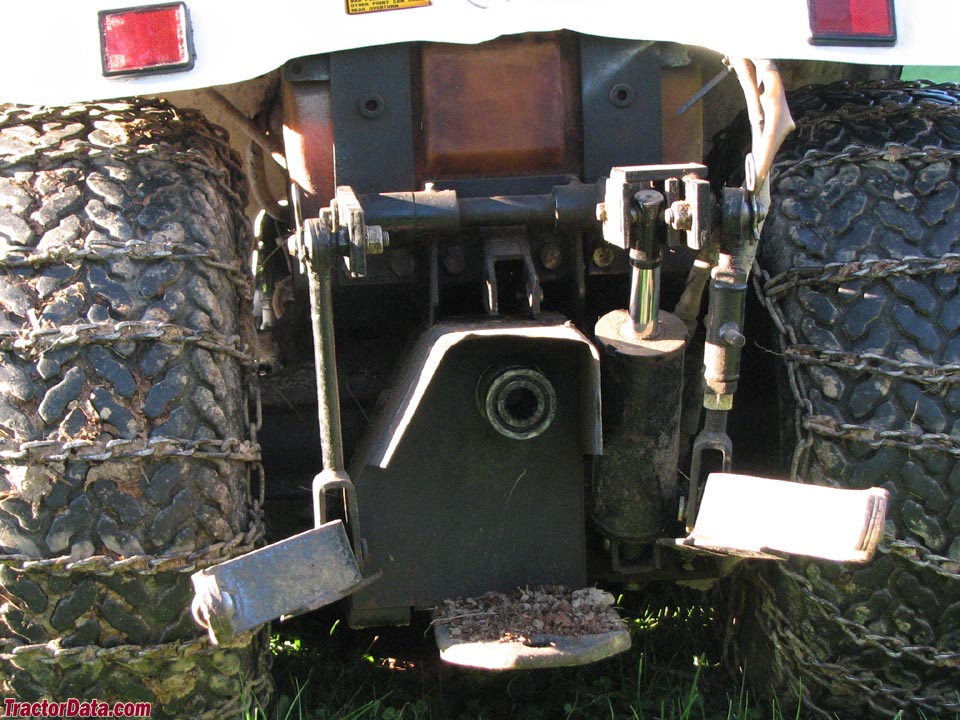

Ford LGT16D rear PTO and hitch.
Recommended Implements & Sizing Guide
Engineering recommendations for Ford Lawn Tractors Ford LGT-16D based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford LGT-16D.
Estimated Continuous Field Runtime: 5 hrs
Approximately 5 hours of continuous field operation at ~75% rated power on a full tank (4.2 gal / 15.9 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
