Holder A62

The Holder A62 is a tractor produced by Holder. It is equipped with a 143.8 ci 2.4 L engine. The rated power output is 49 hp 36.5 kW. Transmission: 12 forward and 4 reverse.

Engine Power
49 hp 36.5 kW
Fuel & Capacities
Diesel
Transmission
12 forward and 4 reverse

Holder A62 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

No photo available
Production
Manufacturer
Holder
Holder A62 Engine
2.4L 3-cyl diesel
Engine details ...
Holder A62 Transmission
12-speed
Transmission details ...
Holder A62 Power
Engine
49 hp 36.5 kW
Mechanical
Four-wheel drive
Cab standard
Dimensions & Tires
Wheelbase
63 inches 160 cm
Full dimensions and tires ...
Electrical
Charging system
alternator
Charging amps
33
Battery volts
12

Engine

Engine Detail — 143.8 ci / 2.4 L Diesel

Fuel Type
Diesel
Configuration
3-cylinder
Displacement
143.8 ci 2.4 L
Power
49 hp 36.5 kW
Rated RPM
2500
Torque
110.6 lb-ft 150.0 Nm
Torque RPM
1780

Transmission

Transmission — 12 forward and 4 reverse

Gears
12 forward and 4 reverse

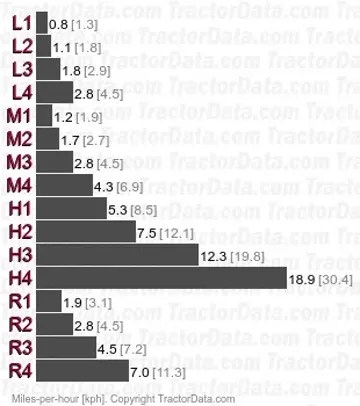

A62 speeds

Dimensions

Holder A62 Tires
Dimensions
Wheelbase
63 inches 160 cm
Length
143.7 inches 364 cm
Width
49.2 inches 124 cm
Height
85 inches (cab) 215 cm
Ground clearance
12 inches 30 cm

Holder A62 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Holder A62.

Converted Equivalents:

Horsepower (HP)49 hp
Kilowatts (kW)36.5 kW
Metric Horsepower (PS / CV)49.7 PS
