Holder A760
The Holder A760 is a tractor produced by Holder. It is equipped with a 166.7 ci 2.7 L engine. The listed engine power is Diesel (listed): 60 hp / 44.7 kW. Transmission: 12 forward and 4 reverse.
Engine Power
Diesel (listed): 60 hp / 44.7 kW
Fuel & Capacities
direct injection
Transmission
12 forward and 4 reverse
Overview
 | 1994 - 2000
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | Holder |
Four-wheel Drive (4WD) tractor | |
Holder A760 Engine | |
|---|---|
Deutz 2.7L 4-cyl diesel | |
Engine details ...  |
Holder A760 Transmission | |
|---|---|
12-speed synchronized | |
Transmission details ...  |
Holder A760 Power | |
|---|---|
Engine | 60 hp
44.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Hydraulic wet disc brakes | |
Cab standard. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Front PTO | independent |
Front PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 166.7 ci / 2.7 L Diesel
Manufacturer | Deutz BF4L 1011 |
Configuration | turbocharged diesel, 4-cylinder, air-cooled |
Displacement | 166.7 ci
2.7 L |
Bore/Stroke | 3.6x4.1 inches
91 x 104 mm |
Power | 60 hp
44.7 kW |
Fuel system | direct injection |
Torque | 136.5 lb-ft
185.1 Nm |
Torque RPM | 1600 |
Starter volts | 12 |
Transmission

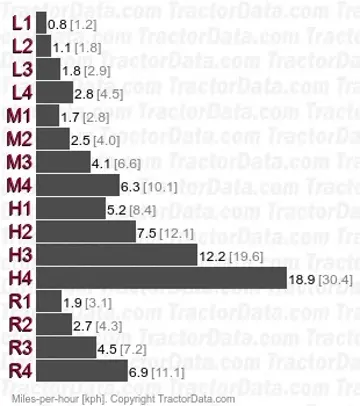

Transmission — 12 forward and 4 reverse synchronized
Type | synchronized |
Gears | 12 forward and 4 reverse |
Clutch | disc |
Four gears (1-4) in three ranges, plus reverse. | |
 | |
Dimensions
Holder A760 Tires |
|---|
Dimensions |
|---|
Photos
Holder A760 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Holder A760 based on its 60 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Holder A760.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Holder A760 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Holder A760.
Converted Equivalents:
Horsepower (HP)60 hp
Kilowatts (kW)44.7 kW
Metric Horsepower (PS / CV)60.8 PS
Direct Competitor Comparison
Compare Holder A760 against same-era industry alternatives in the same horsepower class.
Current Model
Holder
Holder A760
Engine Power:Diesel (listed): 60 hp / 44.7 kW
★ Baseline Reference
