Holder A65
The Holder A65 is a tractor produced by Holder. It is equipped with a 143.8 ci 2.4 L engine. The listed engine power is Diesel (listed): 58 hp / 43.3 kW. Transmission: 12 forward and 4 reverse.
Engine Power
Diesel (listed): 58 hp / 43.3 kW
Transmission
12 forward and 4 reverse
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | Holder |
Holder A65 Engine | |
|---|---|
2.4L 3-cyl diesel | |
Engine details ...  |
Holder A65 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Holder A65 Power | |
|---|---|
Engine | 58 hp
43.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Cab standard |
Dimensions & Tires | |
|---|---|
Wheelbase | 63 inches
160 cm |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 33 |
Battery volts | 12 |
Engine
Engine Detail — 143.8 ci / 2.4 L Diesel
Configuration | turbocharged diesel, 3-cylinder |
Displacement | 143.8 ci
2.4 L |
Power | 58 hp
43.3 kW |
Rated RPM | 2500 |
Torque | 129.8 lb-ft
176.0 Nm |
Torque RPM | 1825 |
Transmission

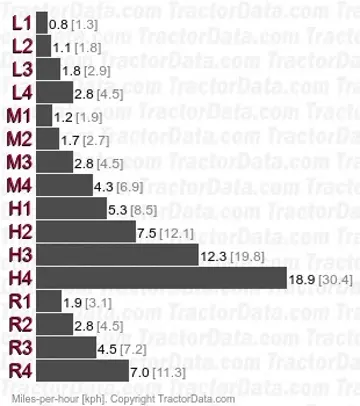

Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
 | |
Dimensions
Holder A65 Tires |
|---|
Dimensions | |
|---|---|
Wheelbase | 63 inches
160 cm |
Length | 143.7 inches
364 cm |
Width | 49.2 inches
124 cm |
Height | 85 inches (cab)
215 cm |
Ground clearance | 12 inches
30 cm |
Recommended Implements & Sizing Guide
Engineering recommendations for Holder A65 based on its 58 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Holder A65.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Holder A65 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Holder A65.
Converted Equivalents:
Horsepower (HP)58 hp
Kilowatts (kW)43.3 kW
Metric Horsepower (PS / CV)58.8 PS
Direct Competitor Comparison
Compare Holder A65 against same-era industry alternatives in the same horsepower class.
Current Model
Holder
Holder A65
Engine Power:Diesel (listed): 58 hp / 43.3 kW
★ Baseline Reference
