Ingersoll 3118
The Ingersoll 3118 is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 781 cc 47.7 ci engine. The listed engine power is Gasoline (listed): 18 hp / 13.4 kW. Transmission: Hy-Drive. Operating weight: 650 lbs 294 kg.
Engine Power
Gasoline (listed): 18 hp / 13.4 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Hy-Drive
Operating Weight
650 lbs
294 kg
Overview
 | 1992 - 1993
3100 SeriesGarden tractor
3100 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Ingersoll |
Garden tractor | |
Ingersoll 3118 Engine | |
|---|---|
18HP Onan 781cc 2-cyl gasoline | |
Engine details ...  |
Ingersoll 3118 Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Capacity | |
|---|---|
Fuel | 3 gal
11.4 L |
Hydraulic system | 1.5 gal
5.7 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 1.5 gal
5.7 L |
Pressure | 575 psi
39.6 bar |
Total flow | 11.5 gpm
43.5 lpm |
Steering press. | 720 psi
49.6 bar |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 650 lbs
294 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 20 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator;s Manual Compact Tractors 3118, 4116, 4118, 4120 (8-56800) published in 1992 |
Engine
Engine Detail — 781 cc / 47.7 ci Gasoline
Manufacturer | Onan P220 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft opposed twin |
Displacement | 781 cc
47.7 ci |
Bore/Stroke | 3.25x2.875 inches
83 x 73 mm |
Power | 18 hp
13.4 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.8 qts
1.7 L |
Transmission
Transmission — Hy-Drive
Transmission | Hy-Drive |
Type | hydraulic drive |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
Ingersoll 3118 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 65 inches
165 cm |
Width | 41 inches
104 cm |
Height (steering wheel) | 40 inches
101 cm |
Height (hood) | 35.5 inches
90 cm |
Weight | 650 lbs
294 kg |
Ground clearance | 7.125 inches
18 cm |
Front tread | 28.75 inches
73 cm |
Rear tread | 27.75 inches
70 cm |
Photos

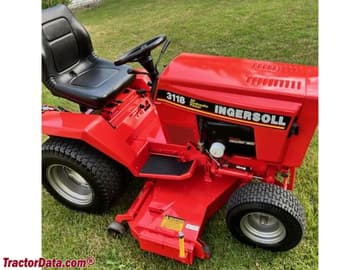

Ingersoll 3118
Ingersoll 3118
Ingersoll 3118
Recommended Implements & Sizing Guide
Engineering recommendations for Ingersoll Lawn Tractors Ingersoll 3118 based on its 18 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ingersoll Lawn Tractors Ingersoll 3118.
Estimated Continuous Field Runtime: 3.2 hrs
Approximately 3.2 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ingersoll Lawn Tractors Ingersoll 3118 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ingersoll Lawn Tractors Ingersoll 3118.
Converted Equivalents:
Horsepower (HP)18 hp
Kilowatts (kW)13.4 kW
Metric Horsepower (PS / CV)18.2 PS
Direct Competitor Comparison
Compare Ingersoll 3118 against same-era industry alternatives in the same horsepower class.
Current Model
Ingersoll Lawn Tractors
Ingersoll 3118
Engine Power:Gasoline (listed): 18 hp / 13.4 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester Type A 15HP
Engine Power:16.7
Production Years:1908 - 1911
