Ingersoll 3118D
The Ingersoll 3118D is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 699 cc 42.7 ci engine. The listed engine power is Diesel (listed): 18 hp / 13.4 kW. Transmission: infinite forward and reverse.
Engine Power
Diesel (listed): 18 hp / 13.4 kW
Fuel & Capacities
Diesel
Transmission
infinite forward and reverse
Overview
 | 1993
3100 SeriesGarden tractor
3100 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Ingersoll |
Garden tractor | |
Ingersoll 3118D Engine | |
|---|---|
18HP Perkins 699cc 3-cyl diesel | |
Engine details ...  |
Ingersoll 3118D Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Mechanical band brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 699 cc / 42.7 ci Diesel
Manufacturer | Perkins 103.07 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 699 cc
42.7 ci |
Bore/Stroke | 2.6x2.5 inches
66 x 64 mm |
Power | 18 hp
13.4 kW |
Fuel system | indirect injection |
Compression | 24:1 |
Firing order | 1-2-3 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydraulic drive
Type | hydraulic drive |
Gears | infinite forward and reverse |
Dimensions
Ingersoll 3118D Tires |
|---|
Dimensions |
|---|
Photos

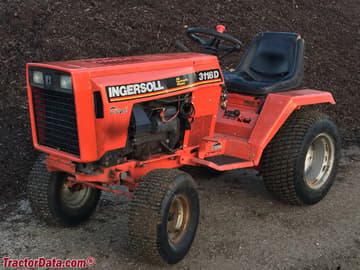

Ingersoll 3118D
Recommended Implements & Sizing Guide
Engineering recommendations for Ingersoll Lawn Tractors Ingersoll 3118D based on its 18 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ingersoll Lawn Tractors Ingersoll 3118D.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ingersoll Lawn Tractors Ingersoll 3118D Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ingersoll Lawn Tractors Ingersoll 3118D.
Converted Equivalents:
Horsepower (HP)18 hp
Kilowatts (kW)13.4 kW
Metric Horsepower (PS / CV)18.2 PS
Direct Competitor Comparison
Compare Ingersoll 3118D against same-era industry alternatives in the same horsepower class.
Current Model
Ingersoll Lawn Tractors
Ingersoll 3118D
Engine Power:Diesel (listed): 18 hp / 13.4 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester Type A 15HP
Engine Power:16.7
Production Years:1908 - 1911
