Ingersoll 4018
The Ingersoll 4018 is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 776 cc 47.4 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Hy-drive. Operating weight: 960 lbs 435 kg.
Engine Power
Gasoline (gross): 18 hp / 13.4 kW
Fuel & Capacities
Gasoline
Transmission
Hy-drive
Operating Weight
960 lbs
435 kg
Overview
 | 1989 - 1992
4000 SeriesGarden tractor
4000 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Ingersoll |
Garden tractor | |
Built in Winneconne, Wisconsin, USA | |
Ingersoll 4018 Engine | |
|---|---|
18HP Onan 776cc 2-cyl gasoline | |
Engine details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual gear and sector |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | 0 |
Dimensions & Tires | |
|---|---|
Weight | 960 lbs
435 kg |
Front tire | 16x6.5-8 |
Rear tire | 32x8-16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 776 cc / 47.4 ci Gasoline
Manufacturer | Onan P218 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft horizontally-opposed |
Displacement | 776 cc
47.4 ci |
Bore/Stroke | 3.25x2.875 inches
83 x 73 mm |
Power (gross) | 18 hp
13.4 kW |
Compression | 7:1 |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug | Champion RS14YC |
Sparkplug gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.005 inches (cold)
0.127 mm |
Exhaust valve clearance | 0.013 inches (cold)
0.330 mm |
Transmission
Transmission — Hy-drive
Transmission | Hy-drive |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
Ingersoll 4018 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 32x8-16 |
Dimensions | |
|---|---|
Length | 72 inches
182 cm |
Width | 41 inches
104 cm |
Height (steering wheel) | 43.5 inches
110 cm |
Shipping weight | 960 lbs
435 kg |
Ground clearance | 11 inches
27 cm |
Attachments
Attachment overview | |
|---|---|
44" mid-mount mower deck | |
48" mid-mount mower deck | |
60" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

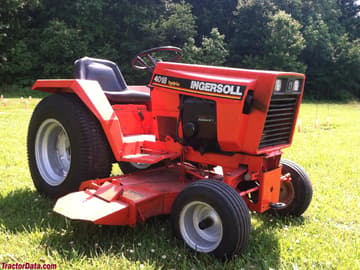

Ingersoll 4018
Ingersoll 4018
Recommended Implements & Sizing Guide
Engineering recommendations for Ingersoll Lawn Tractors Ingersoll 4018 based on its 18 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ingersoll Lawn Tractors Ingersoll 4018.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ingersoll Lawn Tractors Ingersoll 4018 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ingersoll Lawn Tractors Ingersoll 4018.
Converted Equivalents:
Horsepower (HP)18 hp
Kilowatts (kW)13.4 kW
Metric Horsepower (PS / CV)18.2 PS
