International Harvester 824
The International Harvester 824 is a tractor produced by International Harvester. It is equipped with a 238.65 ci 3.9 L engine. The listed engine power is Diesel (listed): 75 hp / 55.9 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: Agriomatic S. Operating weight: 6934 to 7596 pounds.
Engine Power
Diesel (listed): 75 hp / 55.9 kW; Diesel (listed): 4 hp / 3.0 kW
Fuel & Capacities
18.5 gal
70.0 L
Transmission
Agriomatic S
Operating Weight
6934 to 7596 pounds
Overview
 | 1971 - 1974
Model year 1971-19721972-19731973-1974
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | International Harvester |
Utility tractor | |
Built in Neuss, Germany | |
International Harvester 824 Engine | |
|---|---|
International Harvester 3.9L 4-cyl diesel | |
Fuel tank | 18.5 gal
70.0 L |
Engine details ...  | |
International Harvester 824 Power | |
|---|---|
Engine | 75 hp
55.9 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Dry disc brakes | |
Open operator station. Cab optional. |
Hydraulics | |
|---|---|
Pump flow | 7.5 gpm
28.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 5953 lbs
2700 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 83.5 inches
212 cm |
Weight | 6934 to 7596 pounds |
Front tire | 7.50-18 |
2WD Rear tire | 13.6-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | Bosch generator |
Charging amps | 11 |
16 | |
Batteries | 2 (6V) |
1 (12V) | |
Battery volts | 6 |
12 | |
References | |
|---|---|
 | |
624-724-824 |
Engine
Engine Detail — 238.65 ci / 3.9 L Diesel
Manufacturer | International Harvester D-239 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 238.65 ci
3.9 L |
Bore/Stroke | 3.875x5.06 inches
98 x 129 mm |
Power | 75 hp
55.9 kW |
Compression | 16:1 |
Rated RPM | 2300 |
Torque | 190.2 lb-ft
257.9 Nm |
Torque RPM | 1500 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Starter power | 4 hp
3.0 kW |
Oil capacity | 9.6 qts
9.1 L |
Oil change | 200 h |
Transmission
Transmission options | |
|---|---|
8-speed | |
12-speed partial power shift |
Transmission — partially synchronized
Transmission | partially synchronized |
Gears | 8 forward and 4 reverse |
Four gears (1-4) in high, low, and reverse ranges. Gear shifting is synchronized using the clutch. Tractor must be stoppped to shift range. | |
 | |

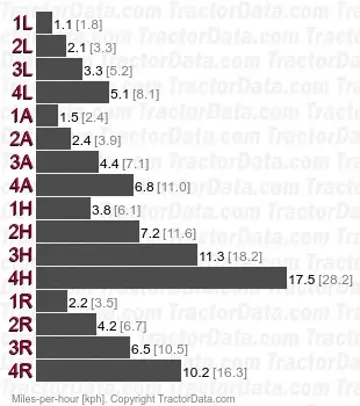

Transmission — Agriomatic S
Transmission | Agriomatic S |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle. | |
 | |
Dimensions
International Harvester 824 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.50-18. Rear: 13.6-38 |
4WD Standard tires (ag) | Front: 11.2-24. Rear: 16.9-34 |
Dimensions | |
|---|---|
Wheelbase | 83.5 inches
212 cm |
Length | 139.8 inches
355 cm |
Width | 78.2 inches
198 cm |
Height | 71.5 inches
181 cm |
2WD Weight | 6934 lbs
3145 kg |
4WD Weight | 7596 lbs
3445 kg |
Ground clearance | 15.2 inches
38 cm |
Front tread | 52 to 67.75 inches
132 to 172 cm |
Rear tread | 57.5 to 73.5 inches
146 to 186 cm |
Photos
International Harvester 824
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for International Harvester 824.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
