Iseki SX75

The Iseki SX75 is a tractor produced by Iseki. It is equipped with a 235.3 ci 3.9 L engine. The rated power output is 70 hp 52.2 kW. Transmission: Super Shift. Operating weight: 6856 to 8003 pounds.

Overview

	1985 - 1990 SX SeriesUtility tractor
1985 - 1990
SX Series
Utility tractor

1985 - 1990
SX Series
Utility tractor

Production
Manufacturer	Iseki
Utility tractor
Built in Japan

Iseki SX75 Engine
Isuzu 3.9L 4-cyl diesel
ROPS Fuel tank	22.5 gal 85.2 L
Cab Fuel tank	27.7 gal 104.8 L
Engine details ...

Iseki SX75 Transmissions
12-speed syncromesh
24-speed
Transmission details ...

Iseki SX75 Power
Engine	70 hp 52.2 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Four-post ROPS. Cab optional with air-conditioning.

Hydraulics
Pump flow	13.2 gpm 50.0 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	6834 lbs 3099 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1789
	1000@2000

Dimensions & Tires
2WD Wheelbase	88 inches 223 cm
4WD Wheelbase	88.8 inches 225 cm
Weight	6856 to 8003 pounds
Front tire	10.00-16
2WD Rear tire	18.4-30
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	110

Engine

	1985 - 1990 SX SeriesUtility tractor
1985 - 1990
SX Series
Utility tractor

1985 - 1990
SX Series
Utility tractor

Engine Detail
Isuzu 4BD1
diesel
4-cylinder
liquid-cooled
Displacement	235.3 ci 3.9 L
Bore/Stroke	4.016x4.646 inches 102 x 118 mm
Power	70 hp 52.2 kW
Fuel system	direct injection
Air cleaner	dual dry element
Pre-heating	glow plugs
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

	1985 - 1990 SX SeriesUtility tractor
1985 - 1990
SX Series
Utility tractor

1985 - 1990
SX Series
Utility tractor

Transmission options
12-speed syncromesh
24-speed

Transmission
Type	syncromesh
Gears	12 forward and 4 reverse
Clutch	330.2mm dry disc

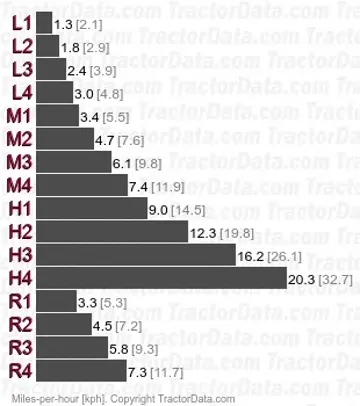

Speeds

Transmission
Transmission	Super Shift
Gears	24 forward and 8 reverse

Dimensions

	1985 - 1990 SX SeriesUtility tractor
1985 - 1990
SX Series
Utility tractor

1985 - 1990
SX Series
Utility tractor

Iseki SX75 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 18.4-30
4WD Standard tires (ag)	Front: 11.2-24. Rear: 18.4-30

Dimensions
2WD Wheelbase	88 inches 223 cm
4WD Wheelbase	88.8 inches 225 cm
Length	152.8 inches 388 cm
Height (exhaust)	104.1 inches 264 cm
Ground clearance	15.2 inches 38 cm
2WD Front tread	55.9 to 72.7 inches 141 to 184 cm
4WD Front tread	57.5 to 78 inches 146 to 198 cm
Rear tread	55.5 to 79.1 inches 140 to 200 cm

Iseki SX75 Weight
2WD ROPS	6856 lbs 3109 kg
2WD Cab	7518 lbs 3410 kg
4WD Cab	8003 lbs 3630 kg

Photos

Iseki SX75 tractor photo
