Iseki TU180

The Iseki TU180 is a tractor produced by Iseki. It is equipped with a 71.4 ci 1.2 L engine. The rated power output is 17.8 hp 13.3 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1918 to 2116 pounds.

Overview

	1984 - 1986 Landhope TU SeriesCompact Utility tractor
1984 - 1986
Landhope TU Series
Compact Utility tractor

1984 - 1986
Landhope TU Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TU180F	4WD

Iseki TU180 Engine
Iseki 1.2L 3-cyl diesel
Fuel tank	6.6 gal 25.0 L
Engine details ...

Iseki TU180 Transmission
12-speed
Transmission details ...

Iseki TU180 Power
Engine	17.8 hp 13.3 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Photos
Iseki TU180 photos...

Tractor hitch
Rear Type	0

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	553@2500
	848@2500
	1309@2500

Dimensions & Tires
Wheelbase	57.5 inches 146 cm
Weight	1918 to 2116 pounds
Front tire	400-12
2WD Rear tire	8.3-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

	1984 - 1986 Landhope TU SeriesCompact Utility tractor
1984 - 1986
Landhope TU Series
Compact Utility tractor

1984 - 1986
Landhope TU Series
Compact Utility tractor

Engine Detail
Iseki E3AF1
diesel
3-cylinder
liquid-cooled
Displacement	71.4 ci 1.2 L
Bore/Stroke	2.992x3.386 inches 76 x 86 mm
Power	17.8 hp 13.3 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

	1984 - 1986 Landhope TU SeriesCompact Utility tractor
1984 - 1986
Landhope TU Series
Compact Utility tractor

1984 - 1986
Landhope TU Series
Compact Utility tractor

Transmission
Gears	12 forward and 4 reverse
Three gears, plus reverse, in four ranges.

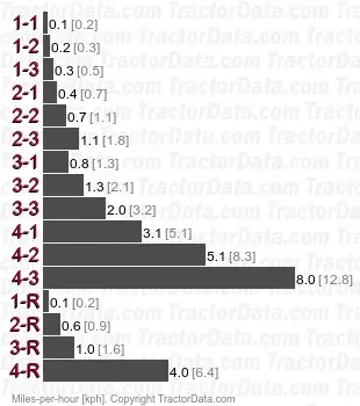

Speeds

Dimensions

	1984 - 1986 Landhope TU SeriesCompact Utility tractor
1984 - 1986
Landhope TU Series
Compact Utility tractor

1984 - 1986
Landhope TU Series
Compact Utility tractor

Iseki TU180 Tires
2WD Standard tires (ag)	Front: 400-12. Rear: 8.3-24
4WD Standard tires (ag)	Front: 6-14. Rear: 8.3-24

Dimensions
Wheelbase	57.5 inches 146 cm
Length	121.1 inches 307 cm
Width	46.5 inches 118 cm
2WD Height	74 inches 187 cm
4WD Height	74.2 inches 188 cm
2WD Weight	1918 lbs 870 kg
4WD Weight	2116 lbs 959 kg
2WD Ground clearance	10.6 inches 26 cm
4WD Ground clearance	10.8 inches 27 cm
2WD Front tread	37 to 38.6 inches 93 to 98 cm
4WD Front tread	40.2 inches 102 cm
Rear tread	37 to 43.1 inches 93 to 109 cm

Photos

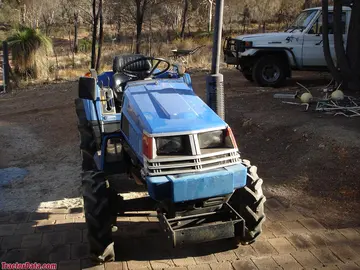

Iseki TU180F.

Iseki TU180F.

Iseki TU180F.

Iseki TU180 operator station and controls.

Iseki TU180F.

Iseki TU180F.

Iseki TU180F.

Iseki TU180F.
