Iseki TH18
The Iseki TH18 is a tractor produced by Iseki. It is equipped with a 61.4 ci 1.0 L engine. The rated power output is 17.8 hp 13.3 kW. Transmission: 12 forward and reverse. Operating weight: 1709 lbs 775 kg.
Engine Power
17.8 hp
13.3 kW
Fuel & Capacities
6.6 gal
25.0 L
Transmission
12 forward and reverse
Operating Weight
1709 lbs
775 kg
Iseki TH18 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2004 - 2010
TH SeriesCompact Utility tractor |
|---|---|
2004 - 2010 | |
TH Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Iseki TH18 Engine | |
|---|---|
Iseki 1.0L 3-cyl diesel | |
Fuel tank | 6.6 gal
25.0 L |
Engine details ...  | |
Iseki TH18 Transmission | |
|---|---|
12-speed gear | |
Transmission details ...  |
Iseki TH18 Power | |
|---|---|
Engine | 17.8 hp
13.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Tractor hitch | |
|---|---|
Rear Type | JIS0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 523@2500 |
783@2500 | |
1184@2500 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 53.4 inches
135 cm |
Weight | 1709 lbs
775 kg |
Front tire | 6.00-12 |
Rear tire | 8.3-22 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual TH Series (1716-912-003-5G) published in 2004 | |
TH Series - Sial Hunter published in 2006, by Iseki |
Engine
Engine Detail — 61.4 ci / 1.0 L Diesel
Manufacturer | Iseki E3100 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 61.4 ci
1.0 L |
Bore/Stroke | 2.91x3.07 inches
74 x 78 mm |
Power | 17.8 hp
13.3 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 12 forward and reverse gear
Type | gear |
Gears | 12 forward and reverse |
Clutch | dry disc |

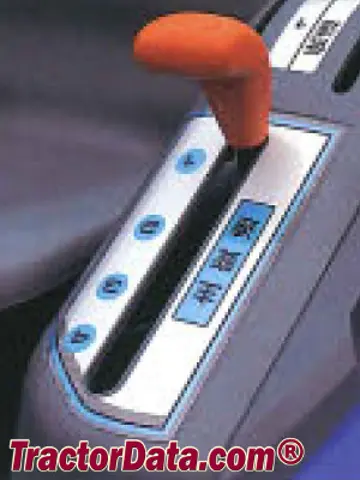

Four gears in three ranges with mechanical shuttle. | |
 | |
Dimensions
Iseki TH18 Tires | |
|---|---|
Standard tires (ag) | Front: 6.00-12. Rear: 8.3-22 |
Dimensions | |
|---|---|
Wheelbase | 53.4 inches
135 cm |
Length | 102 inches
259 cm |
Width | 43.7 inches
110 cm |
Height (ROPS) | 73.4 inches
186 cm |
Weight | 1709 lbs
775 kg |
Ground clearance | 13.2 inches
33 cm |
Front tread | 34.7 inches
88 cm |
Rear tread | 33.5/39.6 inches
85/100 cm |
Photos
Iseki TH18 tractor photo
Iseki TH18 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TH18.
Converted Equivalents:
Horsepower (HP)17.8 hp
Kilowatts (kW)13.3 kW
Metric Horsepower (PS / CV)18 PS
