Iseki TA295

The Iseki TA295 is a tractor produced by Iseki. It is equipped with a 91.3 ci 1.5 L engine. The rated power output is 28.6 hp 21.3 kW. Transmission: 16 forward and reverse. Operating weight: 3428 lbs 1554 kg.

Overview

	1987 - 1990 Landleader TA5 SeriesCompact Utility tractor
1987 - 1990
Landleader TA5 Series
Compact Utility tractor

1987 - 1990
Landleader TA5 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TA295F	4WD

Iseki TA295 Engine
Isuzu 1.5L 4-cyl diesel
Fuel tank	11.1 gal 42.0 L
Engine details ...

Iseki TA295 Transmission
16-speed shuttle
Transmission details ...

Iseki TA295 Power
Engine	28.6 hp 21.3 kW

Mechanical
Four-wheel drive
Open operator station. Cab optional.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	564@2800
	705@2800
	837@2800
	1308@2800

Dimensions & Tires
Wheelbase	72.8 inches 184 cm
Weight	3428 lbs 1554 kg
Front tire	8-16
Rear tire	12.4-26
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Landleader TA295/TA325 published in 1990, by Iseki
Operator's Manual Landleader (1564-912-006-1B) published in 1990

Engine

	1987 - 1990 Landleader TA5 SeriesCompact Utility tractor
1987 - 1990
Landleader TA5 Series
Compact Utility tractor

1987 - 1990
Landleader TA5 Series
Compact Utility tractor

Engine Detail
Isuzu 4JF1
diesel
4-cylinder
liquid-cooled
Displacement	91.3 ci 1.5 L
Bore/Stroke	2.96x3.31 inches 75 x 84 mm
Power	28.6 hp 21.3 kW
Rated RPM	2800
Starter	electric
Starter volts	12

Transmission

	1987 - 1990 Landleader TA5 SeriesCompact Utility tractor
1987 - 1990
Landleader TA5 Series
Compact Utility tractor

1987 - 1990
Landleader TA5 Series
Compact Utility tractor

Transmission
Type	shuttle
Gears	16 forward and reverse
Four gears in four ranges with left-hand shuttle. Option power shuttle (S variant).

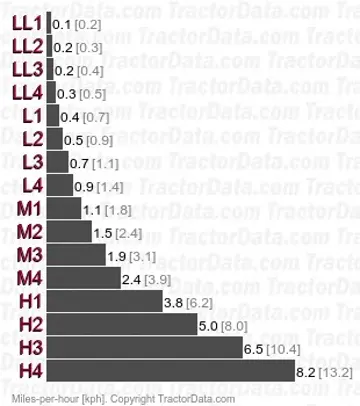

Speeds

Dimensions

	1987 - 1990 Landleader TA5 SeriesCompact Utility tractor
1987 - 1990
Landleader TA5 Series
Compact Utility tractor

1987 - 1990
Landleader TA5 Series
Compact Utility tractor

Iseki TA295 Tires
Standard tires (ag)	Front: 8-16. Rear: 12.4-26

Dimensions
Wheelbase	72.8 inches 184 cm
Length	128 inches 325 cm
Width	59.1 inches 150 cm
Height	74.8 inches 189 cm
Weight	3428 lbs 1554 kg
Ground clearance	12.4 inches 31 cm
Front tread	47.6 inches 120 cm
Rear tread	44.9/46.5/49.6/51.2/54.3/59.1 inches 114/118/125/130/137/150 cm

Photos

Iseki TA295 tractor photo
