Iseki TA317
The Iseki TA317 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 30.1 hp 22.4 kW. Transmission: 16 forward and reverse. Operating weight: 2480 to 3131 pounds.
Engine Power
30.1 hp
22.4 kW
Fuel & Capacities
7.9 gal
29.9 L
Transmission
16 forward and reverse
Operating Weight
2480 to 3131 pounds
Iseki TA317 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1989 - 1992
Landleader TA7 SeriesCompact Utility tractor |
|---|---|
1989 - 1992 | |
Landleader TA7 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TA317F | 4WD |
Iseki TA317 Engine | |
|---|---|
Iseki 1.5L 3-cyl diesel | |
Fuel tank | 7.9 gal
29.9 L |
Engine details ...  | |
Iseki TA317 Transmission | |
|---|---|
16-speed | |
Transmission details ...  |
Iseki TA317 Power | |
|---|---|
Engine | 30.1 hp
22.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. Cab optional. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 565@2800 |
732@2800 | |
1053@2800 | |
1233@2800 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 67.9 inches
172 cm |
Weight | 2480 to 3131 pounds |
Front tire | 5.50-16 |
2WD Rear tire | 12.4-26 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Land Leader 7 Series published in 1993, by Iseki |
Engine
Engine Detail — 91.4 ci / 1.5 L Diesel
Manufacturer | Iseki E3ADI |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 91.4 ci
1.5 L |
Bore/Stroke | 3.43x3.31 inches
87 x 84 mm |
Power | 30.1 hp
22.4 kW |
Rated RPM | 2800 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 5.1 qts
4.8 L |
Iseki TA317 Engine | |
|---|---|
 |
Transmission

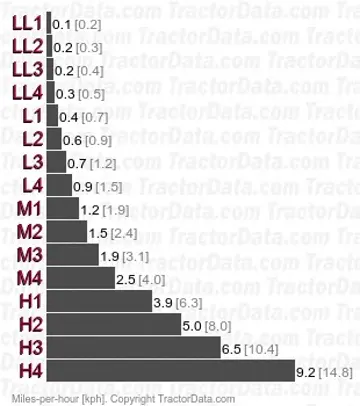

Transmission — 16 forward and reverse
Gears | 16 forward and reverse |
Four gears (1-4) in four ranges with shuttle shift. | |
 | |
Dimensions
Iseki TA317 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 5.50-16. Rear: 12.4-26 |
4WD Standard tires (ag) | Front: 8-16. Rear: 12.4-26 |
Dimensions | |
|---|---|
Wheelbase | 67.9 inches
172 cm |
Length | 120.9 inches
307 cm |
Width | 56.1 inches
142 cm |
Height (steering wheel) | 57.5 inches
146 cm |
Height (cab) | 78.5 inches
199 cm |
Ground clearance | 13.8 inches
35 cm |
2WD Front tread | 38.6 to 56.7 inches
98 to 144 cm |
4WD Front tread | 44.5 inches
113 cm |
Rear tread | 43.3 to 55.9 inches
109 to 141 cm |
Iseki TA317 Weight | |
|---|---|
2WD Open | 2480 lbs
1124 kg |
4WD Open | 2646 lbs
1200 kg |
2WD Cab | 2965 lbs
1344 kg |
4WD Cab | 3131 lbs
1420 kg |
Photos
Iseki TA317 tractor photo
Iseki TA317 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TA317.
Converted Equivalents:
Horsepower (HP)30.1 hp
Kilowatts (kW)22.4 kW
Metric Horsepower (PS / CV)30.5 PS
