Iseki TA375

The Iseki TA375 is a tractor produced by Iseki. It is equipped with a 124.4 ci 2.0 L engine. The rated power output is 36.5 hp 27.2 kW. Transmission: 16 forward and reverse. Operating weight: 3815 lbs 1730 kg.

Engine Power
36.5 hp 27.2 kW
Fuel & Capacities
12.7 gal 48.1 L
Transmission
16 forward and reverse
Operating Weight
3815 lbs 1730 kg

Iseki TA375 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Iseki TA375 tractor photo
1987 - 1990 Landleader TA5 SeriesCompact Utility tractor
1987 - 1990
Landleader TA5 Series
Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Iseki TA375 Engine
Iseki 2.0L 4-cyl diesel
Fuel tank
12.7 gal 48.1 L
Engine details ...
Iseki TA375 Transmission
16-speed shuttle
Transmission details ...
Iseki TA375 Power
Engine
36.5 hp 27.2 kW
Mechanical
Four-wheel drive
Four-post ROPS. Cab optional.
Dimensions & Tires
Wheelbase
74.8 inches 189 cm
Weight
3815 lbs 1730 kg
Front tire
8-18
Rear tire
13.6-26
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TA375 references literature
Operator's Manual Landleader (1564-912-006-1B) published in 1990
Landleader TA345/TA375 TA415/TA455 published in 1990, by Iseki

Engine

Engine Detail — 124.4 ci / 2.0 L Diesel

Manufacturer
Iseki 4JD1
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
124.4 ci 2.0 L
Bore/Stroke
3.31x3.62 inches 84 x 92 mm
Power
36.5 hp 27.2 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission — 16 forward and reverse shuttle

Type
shuttle
Gears
16 forward and reverse
Four gears in four ranges with left-hand shuttle. Option power shuttle (S variant).

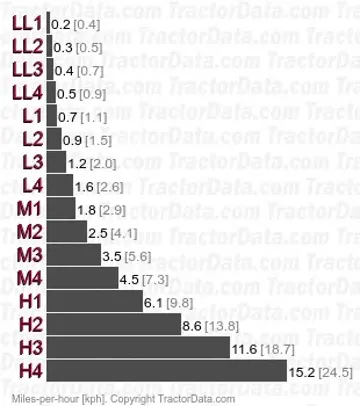

TA375 shuttle speeds

Dimensions

Iseki TA375 Tires
Standard tires (ag)
Front: 8-18. Rear: 13.6-26
Dimensions
Wheelbase
74.8 inches 189 cm
Length
129.9 inches 329 cm
Width
60 inches 152 cm
Height
86.2 inches 218 cm
Weight
3815 lbs 1730 kg
Ground clearance
14.6 inches 37 cm
Front tread
47.6 inches 120 cm
Rear tread
44.9 to 59.1 inches 114 to 150 cm

Photos

Iseki TA375 tractor photo

Iseki TA375 tractor photo

Iseki TA375 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TA375.

Converted Equivalents:

Horsepower (HP)36.5 hp
Kilowatts (kW)27.2 kW
Metric Horsepower (PS / CV)37 PS
