Iseki TG5390

The Iseki TG5390 is a tractor produced by Iseki. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 37.5 hp 28.0 kW. Transmission: 12 forward and reverse. Operating weight: 2,888 lbs 1309 kg.

Engine Power
37.5 hp 28.0 kW
Fuel & Capacities
10.6 gal 40.1 L
Transmission
12 forward and reverse
Operating Weight
2,888 lbs 1309 kg

Iseki TG5390 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

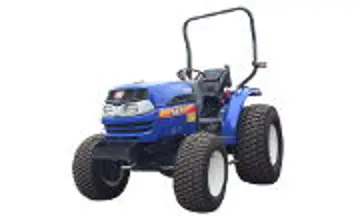

Iseki TG5390 tractor photo
2004 - ???? TG SeriesCompact Utility tractor
2004 - ????
TG Series
Compact Utility tractor
2004 - ????
TG Series
Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Iseki TG5390 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank
10.6 gal 40.1 L
Engine details ...
Iseki TG5390 Transmission
12-speed
Transmission details ...
Iseki TG5390 Power
Engine
37.5 hp 28.0 kW
PTO (claimed)
31 hp 23.1 kW
Mechanical
Two- or four-wheel drive
Differential lock
mechanical rear
Power steering
Wet discs brakes
Two-post ROPS.
Hydraulics
Pressure
2276 psi 156.9 bar
Total flow
9.1 gpm 34.4 lpm
Steering flow
4.9 gpm 18.5 lpm
6 gpm (with powershift) 22.7 lpm
Steering press.
1138 psi 78.5 bar
Tractor hitch
Rear Type
I
Rear lift (at ends)
2,800 lbs 1270 kg
Rear lift (at 24"/610mm)
2,138 lbs 969 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Mid PTO Type
2000
Dimensions & Tires
Wheelbase
69.7 inches 177 cm
Weight
2,888 lbs 1309 kg
Front tire
7-16
Rear tire
12.4-24
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
40
Battery CCA
630
Battery volts
12
Battery AH
55
References

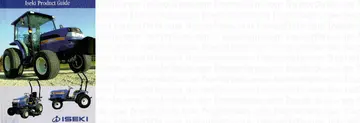

TG5390 references literature
Iseki Product Guide published in 2005

Engine

Iseki TG5390 tractor photo
2004 - ???? TG SeriesCompact Utility tractor
2004 - ????
TG Series
Compact Utility tractor
2004 - ????
TG Series
Compact Utility tractor

Engine Detail — 91.4 ci / 1.5 L Diesel

Manufacturer
Iseki E3CDT
Configuration
turbocharged diesel, 3-cylinder, liquid-cooled
Displacement
91.4 ci 1.5 L
Bore/Stroke
3.425x3.31 inches 87 x 84 mm
Power
37.5 hp 28.0 kW
Air cleaner
dry element
Compression
21.7:1
Rated RPM
2600
Firing order
1-3-2
Starter
electric
Starter volts
12
Oil capacity
5 qts 4.7 L
Coolant capacity
7.1 qts 6.7 L

Transmission

Iseki TG5390 tractor photo
2004 - ???? TG SeriesCompact Utility tractor
2004 - ????
TG Series
Compact Utility tractor
2004 - ????
TG Series
Compact Utility tractor

Transmission — 12 forward and reverse

Gears
12 forward and reverse
Oil capacity
32.8 qts 31.0 L

Dimensions

Iseki TG5390 tractor photo
2004 - ???? TG SeriesCompact Utility tractor
2004 - ????
TG Series
Compact Utility tractor
2004 - ????
TG Series
Compact Utility tractor
Iseki TG5390 Tires
Ag front
7-16
Ag rear
12.4-24
Lawn/turf front
212/80D-15
Lawn/turf rear
355/80D-20
Dimensions
Wheelbase
69.7 inches 177 cm
Length
123.6 inches 313 cm
Width
59.1 inches 150 cm
Height
101.2 inches 257 cm
Weight
2,888 lbs 1309 kg
Ground clearance
16.5 inches 41 cm

Photos

Iseki TG5390

Iseki TG5390

Iseki TG5390 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TG5390.

Converted Equivalents:

Horsepower (HP)37.5 hp
Kilowatts (kW)28 kW
Metric Horsepower (PS / CV)38 PS
