Iseki TJ75

The Iseki TJ75 is a tractor produced by Iseki. It is equipped with a 180.3 ci 3.0 L engine. The listed engine power is Diesel (listed): 74 hp / 55.2 kW. Transmission: 12 forward and reverse. Operating weight: 5600 lbs 2540 kg.

Engine Power
Diesel (listed): 74 hp / 55.2 kW
Fuel & Capacities
23.8 gal 90.1 L
Transmission
12 forward and reverse
Operating Weight
5600 lbs 2540 kg

Overview

Iseki TJ75 tractor photo
2003 - 2009 TJ SeriesUtility tractor TJ Series Utility tractor
Production
Manufacturer
Iseki
Utility tractor
Variants
TJ75
wheel tractor
TJ75C
half-track
Iseki TJ75 Engine
Iseki 3.0L 4-cyl diesel
Fuel tank
23.8 gal 90.1 L
Engine details ...
Iseki TJ75 Power
Engine
74 hp 55.2 kW
Mechanical
Two- or four-wheel drive
Differential lock
mechanical rear
Power steering
Wet discs brakes
Cab with air-conditioning.
Hydraulics
Total flow
7.7 gpm 29.1 lpm
Tractor hitch
Rear Type
JIS1
JIS2
Rear lift (at ends)
5732 lbs 2600 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540 (1.375)
Engine RPM
566@2600
733@2600
1061@2600
Dimensions & Tires
Wheelbase
84.7 inches 215 cm
Weight
5600 lbs 2540 kg
Front tire
9.5-22
Rear tire
12.4-36
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
72
References

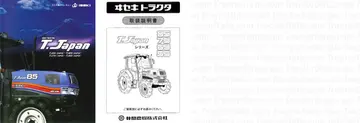

TJ75 references literature
T.Japan published in 2008, by Iseki
T.Japan 85 75 65 55 (1719-912-012-4F)

Engine

Engine Detail — 180.3 ci / 3.0 L Diesel

Manufacturer
Iseki E4DE
Configuration
wastegate turbocharged diesel, 4-cylinder, liquid-cooled
Displacement
180.3 ci 3.0 L
Bore/Stroke
3.82x3.94 inches 97 x 100 mm
Power
74 hp 55.2 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission options
24-speed 8-speed power shift
12-speed 4-speed power shift

Transmission — 24 forward and reverse 8-speed power shift

Type
8-speed power shift
Gears
24 forward and reverse
Eight push-button power shift gears in three ranges with power shuttle. Automated AT shift mode.

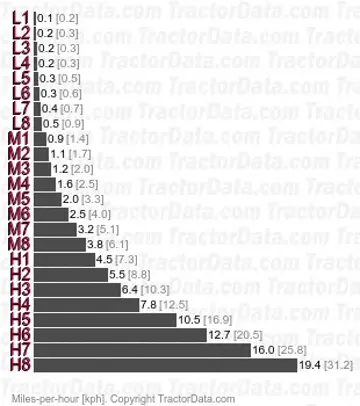

TJ75  8-speed power shift speeds

Transmission — 12 forward and reverse 4-speed power shift

Type
4-speed power shift
Gears
12 forward and reverse
Four push-button gears in three ranges with shuttle.

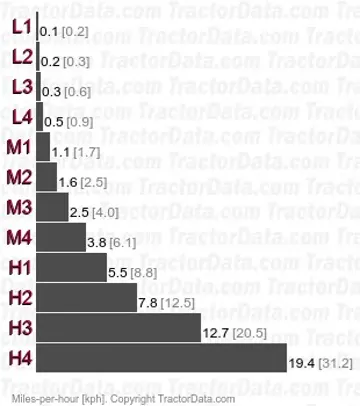

TJ75  4-speed power shift speeds

Dimensions

Iseki TJ75 Tires
Ag front
9.5-22 6PR
Ag rear
12.4-36 6PR
Dimensions
Wheelbase
84.7 inches 215 cm
Length
149.4 inches 379 cm
Width
65.8 inches 167 cm
Height
98 inches 248 cm
Weight
5600 lbs 2540 kg
Ground clearance
16.9 inches 42 cm
Front tread
47.8 to 62.2 inches 121 to 157 cm
Rear tread
48 to 63.4 inches 121 to 161 cm

Photos

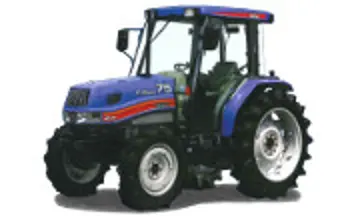

Iseki TJ75 tractor photo

Iseki TJ75 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TJ75 based on its 74 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
3 to 4 Bottom (16")3 - 4 铧 (40 cm)Heavy DutySuitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing
7 to 8 ft (84-96 in)2.1 - 2.4 mHeavy DutyHeavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep
78 to 84 in200 - 215 cmHeavy DutyHeavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机Heavy DutySilage and dry hay; 540 RPM PTO with slip-clutch.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TJ75.

Estimated Continuous Field Runtime: 6.2 hrs

Approximately 6.2 hours of continuous field operation at ~75% rated power on a full tank (23.8 gal / 90.1 L).

Estimated 75% Load Fuel Burn~3.8 gal/hr (14.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TJ75 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TJ75.

Converted Equivalents:

Horsepower (HP)74 hp
Kilowatts (kW)55.2 kW
Metric Horsepower (PS / CV)75 PS

Direct Competitor Comparison

Compare Iseki TJ75 against same-era industry alternatives in the same horsepower class.

Current Model
Iseki

Iseki TJ75

Engine Power:Diesel (listed): 74 hp / 55.2 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 265

Engine Power:66.7
Production Years:1975 - 1983
International HarvesterMarket Competitor

International Harvester Mogul 30-60

Engine Power:66.7
Production Years:1912 - 1917
DeereMarket Competitor

Deere 1650

Engine Power:67
Production Years:1984 - 1988
CaseMarket Competitor

Case 1390

Engine Power:66.7
Production Years:1980 - 1983
