Iseki TL2100
The Iseki TL2100 is a tractor produced by Iseki. It is equipped with a 79.1 ci 1.3 L engine. The listed engine power is Diesel (listed): 21 hp / 15.7 kW. Transmission: 18 forward and 6 reverse. Operating weight: 2006 to 2205 pounds.
Engine Power
Diesel (listed): 21 hp / 15.7 kW
Fuel & Capacities
7.1 gal
26.9 L
Transmission
18 forward and 6 reverse
Operating Weight
2006 to 2205 pounds
Overview
![]() | 1980 - 1985
TL SeriesCompact Utility tractor
TL Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TL2100F | 4WD |
Iseki TL2100 Engine | |
|---|---|
Isuzu 1.3L 3-cyl diesel | |
Fuel tank | 7.1 gal
26.9 L |
Engine details ... | |
Iseki TL2100 Power | |
|---|---|
Engine | 21 hp
15.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | JIS0 |
JIS1 | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 553@2600 |
731@2600 | |
906@2600 | |
1280@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Weight | 2006 to 2205 pounds |
Front tire | 4.00-15 |
2WD Rear tire | 9.5-22 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |

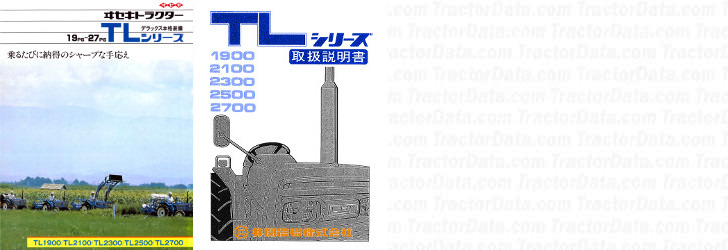

TL published in 1984, by Iseki | |
TL1900 - TL2700 |
Engine
Engine Detail — 79.1 ci / 1.3 L Diesel
Manufacturer | Isuzu E3AE1 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 79.1 ci
1.3 L |
Bore/Stroke | 3.15x3.386 inches
80 x 86 mm |
Power | 21 hp
15.7 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 7.4 qts
7.0 L |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
Transmission
Transmission options | |
|---|---|
9-speed gear | |
18-speed creeper |

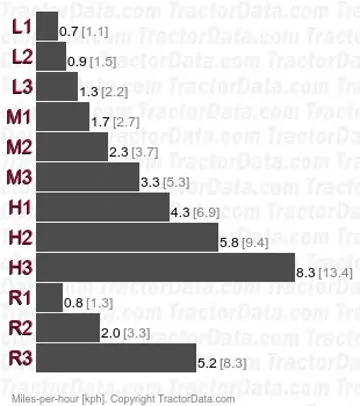

Transmission — 9 forward and 3 reverse gear
Type | gear |
Gears | 9 forward and 3 reverse |
Oil capacity | 33.8 qts
32.0 L |
Three gears (1-3) plus reverse (R) in three ranges. | |
![]() | |

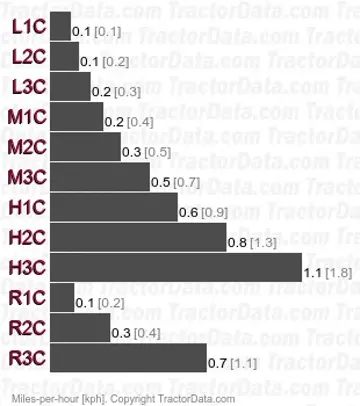

Transmission — 18 forward and 6 reverse creeper
Type | creeper |
Gears | 18 forward and 6 reverse |
Three gears (1-3) plus reverse (R) in three ranges with additional creeper range. | |
![]() | |
Dimensions
Iseki TL2100 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 4.00-15. Rear: 9.5-22 |
4WD Standard tires (ag) | Front: 6-14. Rear: 9.5-22 |
Dimensions | |
|---|---|
Wheelbase | 58.3 inches
148 cm |
Length | 109.1 inches
277 cm |
2WD Width | 47.6 inches
120 cm |
4WD Width | 48.8 inches
123 cm |
2WD Height | 76 inches
193 cm |
4WD Height | 76.4 inches
194 cm |
2WD Weight | 2006 lbs
909 kg |
4WD Weight | 2205 lbs
1000 kg |
Ground clearance | 11.4 inches
28 cm |
2WD Front tread | 35.8/40.2 inches
90/102 cm |
4WD Front tread | 39.4 inches
100 cm |
Rear tread | 37/42.9 inches
93/108 cm |

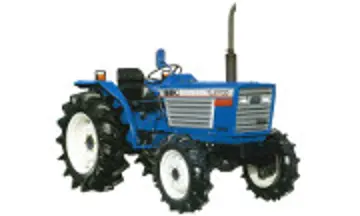

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TL2100 based on its 21 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TL2100.
Estimated Continuous Field Runtime: 6.5 hrs
Approximately 6.5 hours of continuous field operation at ~75% rated power on a full tank (7.1 gal / 26.9 L).
Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TL2100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TL2100.
Converted Equivalents:
Horsepower (HP)21 hp
Kilowatts (kW)15.7 kW
Metric Horsepower (PS / CV)21.3 PS
