Iseki TL4500
The Iseki TL4500 is a tractor produced by Iseki. It is equipped with a 144.6 ci 2.4 L engine. The rated power output is 44.4 hp 33.1 kW. Transmission: 18 forward and 6 reverse. Operating weight: 3792 to 4343 pounds.
Engine Power
44.4 hp
33.1 kW
Fuel & Capacities
13.2 gal
50.0 L
Transmission
18 forward and 6 reverse
Operating Weight
3792 to 4343 pounds
Iseki TL4500 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1980 - 1985
TL SeriesUtility tractor |
|---|---|
1980 - 1985 | |
TL Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Utility tractor | |
Iseki TL4500 Engine | |
|---|---|
Isuzu 2.4L 4-cyl diesel | |
Fuel tank | 13.2 gal
50.0 L |
Engine details ...  | |
Iseki TL4500 Transmission | |
|---|---|
18-speed | |
Transmission details ...  |
Iseki TL4500 Power | |
|---|---|
Engine | 44.4 hp
33.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Four-post ROPS with canopy. Open station available. |
Tractor hitch | |
|---|---|
Rear Type | JIS1 |
Control | position and draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 602@2600 |
734@2600 | |
959@2600 | |
1566@2600 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 78.2 inches
198 cm |
Weight | 3792 to 4343 pounds |
Front tire | 6.00-18 |
2WD Rear tire | 12.4-32 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
References | |
|---|---|
 | |
TL published in 1984, by Iseki | |
TL3700 - TL4100 - TL4500 |
Engine
Engine Detail — 144.6 ci / 2.4 L Diesel
Manufacturer | Isuzu C240 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 144.6 ci
2.4 L |
Bore/Stroke | 3.39x4.02 inches
86 x 102 mm |
Power | 44.4 hp
33.1 kW |
Rated RPM | 2600 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 18 forward and 6 reverse
Gears | 18 forward and 6 reverse |
Dimensions
Iseki TL4500 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 6.00-18. Rear: 12.4-32 |
4WD Standard tires (ag) | Front: 8.3-20. Rear: 12.4-32 |
Dimensions | |
|---|---|
Wheelbase | 78.2 inches
198 cm |
Length | 134.5 inches
341 cm |
Width | 61 inches
154 cm |
Height (ROPS) | 87.4 inches
221 cm |
Height (exhaust) | 81.1 inches
205 cm |
Ground clearance | 16.5 inches
41 cm |
2WD Front tread | 45.3 to 61 inches
115 to 154 cm |
4WD Front tread | 48 to 60.2 inches
121 to 152 cm |
Rear tread | 48 to 63.8 inches
121 to 162 cm |
Iseki TL4500 Weight | |
|---|---|
2WD Open | 3792 lbs
1720 kg |
2WD ROPS | 4001 lbs
1814 kg |
4WD Open | 4134 lbs
1875 kg |
4WD ROPS | 4343 lbs
1969 kg |
Photos

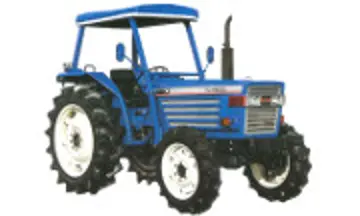

Iseki TL4500 tractor photo
Iseki TL4500 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TL4500.
Converted Equivalents:
Horsepower (HP)44.4 hp
Kilowatts (kW)33.1 kW
Metric Horsepower (PS / CV)45 PS
