Iseki TU225 Landhope

The Iseki TU225 Landhope is a tractor produced by Iseki. It is equipped with a 79.1 ci 1.3 L engine. The listed engine power is Diesel (listed): 21.7 hp / 16.2 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1885 to 2083 pounds.

Engine Power

Diesel (listed): 21.7 hp / 16.2 kW

Fuel & Capacities

6.6 gal 25.0 L

Transmission

12 forward and 4 reverse

Operating Weight

1885 to 2083 pounds

Overview

	1986 - 1990 Landhope TU SeriesCompact Utility tractor Landhope TU Series Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TU225F	4WD

Iseki TU225 Engine
Iseki 1.3L 3-cyl diesel
Fuel tank	6.6 gal 25.0 L
Engine details ...

Iseki TU225 Transmission
12-speed
Transmission details ...

Iseki TU225 Power
Engine	21.7 hp 16.2 kW

Mechanical
Two- or four-wheel drive
Power steering
Open operator station.

Tractor hitch
Rear Type	0

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	553@2500
	847@2500
	1309@2500

Dimensions & Tires
Wheelbase	60.2 inches 152 cm
Weight	1885 to 2083 pounds
Front tire	4.00-15
2WD Rear tire	9.5-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 79.1 ci / 1.3 L Diesel

Manufacturer	Iseki E3AE1
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	79.1 ci 1.3 L
Bore/Stroke	3.15x3.386 inches 80 x 86 mm
Power	21.7 hp 16.2 kW
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

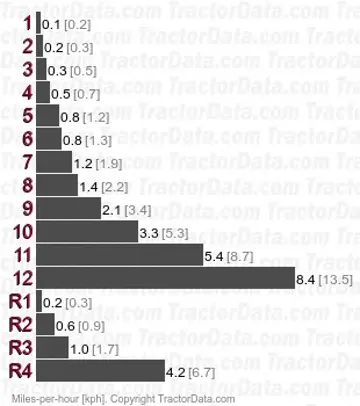

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse

Dimensions

Iseki TU225 Tires
2WD Standard tires (ag)	Front: 4.00-15. Rear: 9.5-24
4WD Standard tires (ag)	Front: 7-14. Rear: 9.5-24

Dimensions
Wheelbase	60.2 inches 152 cm
Length	114.2 inches 290 cm
Width	47.6 inches 120 cm
2WD Height	54.7 inches 138 cm
4WD Height	55.5 inches 140 cm
2WD Weight	1885 lbs 855 kg
4WD Weight	2083 lbs 944 kg
Ground clearance	11.8 inches 29 cm
2WD Front tread	37/38.6 inches 93/98 cm
4WD Front tread	41.3 inches 104 cm
Rear tread	37/43.3 inches 93/109 cm

Photos

Iseki TU225 Landhope

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TU225 Landhope based on its 21.7 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TU225 Landhope.

Estimated Continuous Field Runtime: 5.8 hrs

Approximately 5.8 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
