John Deere 6110J

The John Deere 6110J is a tractor produced by John Deere. It is equipped with a 276 ci 4.5 L engine. The rated power output is 110 hp 82.0 kW. Transmission: John Deere PowrQuad. Operating weight: 9125 to 10380 pounds.

Overview

	2010 - 6J SeriesUtility tractor
2010 -
6J Series
Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Montenegro, Brazil

John Deere 6110J Engine
John Deere 4.5L 4-cyl diesel
Fuel tank	40.15 gal 152.0 L
Engine details ...

John Deere 6110J Power
Engine	110 hp 82.0 kW
PTO (claimed)	94 hp 70.1 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Four-post ROPS. Cab optional.

Hydraulics
Type	pressure compensated
Pressure	2900 psi 200.0 bar
Valves	2
Pump flow	17.17 gpm 65.0 lpm
SCV flow	15.85 gpm 60.0 lpm
Oil type	JD Hy-Gard		JD Hy-Gard

	JD Hy-Gard

Tractor hitch
Rear Type	II
Control	electronic lower link
Rear lift (at ends)	8,378 lbs 3800 kg
Rear lift (at 24"/610mm)	5,512 lbs 2500 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000
	540

Dimensions & Tires
Wheelbase	94.5 inches 240 cm
Weight	9125 to 10380 pounds
Front tire	14.9-26
Rear tire	23.1-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Battery volts	12
Battery AH	100

Engine

Engine Detail — 276 ci / 4.5 L Diesel

Manufacturer	John Deere 4045 PowerTech
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	276 ci 4.5 L
Bore/Stroke	4.15x5.00 inches 105 x 127 mm
Power	110 hp 82.0 kW
Fuel system	rotary injection pump
Rated RPM	2300
Torque	316.4 lb-ft 429.0 Nm
Torque RPM	1400
Starter volts	12
Coolant capacity	21.1 qts 20.0 L
Oil capacity	12.7 qts 12.0 L

Transmission

Transmission options
12-speed fully synchronized
16-speed partial power shift

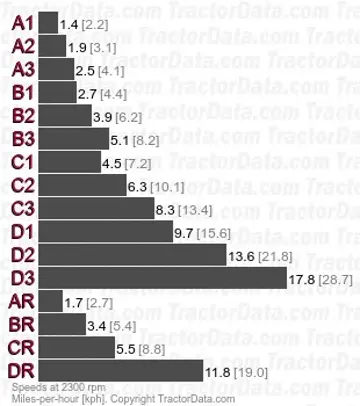

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	hydraulic wet discs
Oil type	JD Hy-Gard
Three synchronized gears (1-3) in four synchronized ranges (A-D).
With 23.1-30 R1 rear tires.

	JD Hy-Gard

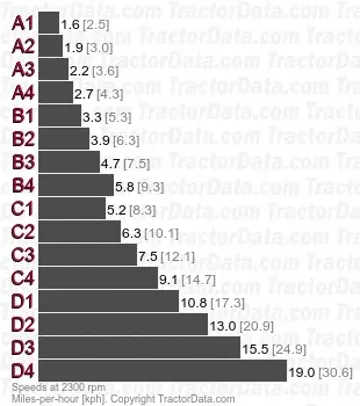

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	hydraulic wet discs
Oil type	JD Hy-Gard
Four power shift gears (1-4) in four synchronized ranges (A-D).
With 23.1-30 R1 rear tires. Reverse speeds are 15% faster than forward.

	JD Hy-Gard

Dimensions

John Deere 6110J Tires
Standard tires (ag)	Front: 14.9-26. Rear: 23.1-30
Optional tires (ag)	Front: 14.9-24. Rear: 23.1-30
	Front: 14.9-24. Rear: 18.4-34
	Front: 14.9-24. Rear: 18.4-38
	Front: 14.9-26. Rear: 18.4-38
	Front: 19.4-24. Rear: 23.1-30
	Front: 14.9-24. Rear: 15.5-38
	Front: 11.2-28. Rear: 13.6-38
	Front: 12.4-36. Rear: 13.6-46

Dimensions
Wheelbase	94.5 inches 240 cm
Length	179.8 inches 456 cm
Height	105.2 inches 267 cm
Ground clearance	19.9 inches 50 cm
Flange rear axle
Bar rear axle	3.386 by 96 inches 86 by 2438 mm
Front tread	59.8 to 81 inches 151 to 205 cm
Rear tread	71.2 inches 180 cm (flange)
Rear tread	65.3 to 94.8 inches 165 to 240 cm (bar)

John Deere 6110J Weight
	9,125 lbs (ROPS) 4139 kg
	10,380 lbs (cab) 4708 kg
Ballasted	13,230 lbs 6001 kg
