John Deere 6515

The John Deere 6515 is a tractor produced by John Deere. It is equipped with a 415 ci 6.8 L engine. The listed engine power is Diesel (net): 110 hp / 82.0 kW; Diesel (gross): 115 hp / 85.8 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: PowrReverser.

Overview

	2003 - 2005 6015 SeriesUtility tractor 6015 Series Utility tractor

Production
Manufacturer	John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 6515 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 6515 Power
Engine (gross)	115 hp 85.8 kW
Engine (net)	110 hp 82.0 kW
Engine (max)	118 hp 88.0 kW
PTO (claimed)	92 hp 68.6 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic wet disc
Power steering
Wet disc brakes
Two-post ROPS. Cab available.

Capacity
Fuel	54.7 gal 207.0 L
2WD Hydraulic system	13.7 gal 51.9 L
4WD Hydraulic system	14.5 gal 54.9 L

Hydraulics
Type	open center
2WD Capacity	13.7 gal 51.9 L
4WD Capacity	14.5 gal 54.9 L
Pressure	2540 psi 175.1 bar
Pump flow	14.3 gpm 54.1 lpm

Tractor hitch
Rear Type	IIIN/II
Control	mechanical top-link draft sensing
Rear lift	13260 lbs 6014 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	mechanical wet disc
Rear PTO Type	540
	540/1000
Engine RPM	540@2124
	1000@2208

Dimensions & Tires
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	90
Charging volts	14
Battery volts	12
Battery AH	110

Engine

Engine Detail — 415 ci / 6.8 L Diesel

Manufacturer	John Deere 6068HL270
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	415 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Stage I
Rated Power (net)	110 hp 82.0 kW
Rated Power (gross)	115 hp 85.8 kW
Maximum Power (gross)	118 hp 88.0 kW
Cooling system	viscous fan
Rated RPM	2300
Idle RPM	845-2465
Operating RPM	1000-2300
Torque	350 lb-ft 474.6 Nm
Torque RPM	1500
Firing order	1-5-3-6-2-4
Starter	electric
Starter volts	12
Starter power	4 hp 3.0 kW
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
12-speed fully synchronized
16-speed power shuttle

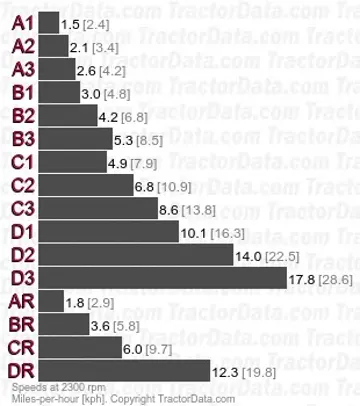

Transmission — SyncroPlus

Transmission	SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	wet disc
Three gears (1-3), plus reverse (R), in four ranges (A-D).

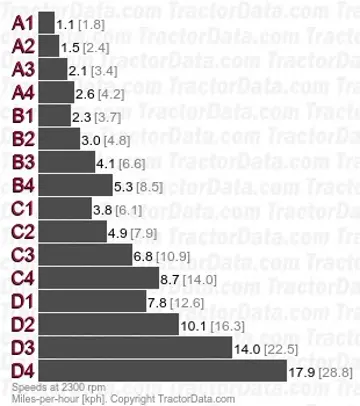

Transmission — PowrReverser

Transmission	PowrReverser
Type	power shuttle
Gears	16 forward and reverse
Clutch	wet disc
Four gears (1-4) in four ranges (A-D) with left-hand shuttle shift.
With 18.4-30 rear tires. Reverse speeds are 4% faster than forward. 30 KPH transmission shown, 40 KPH option available.
