John Deere 6530 Premium

The John Deere 6530 Premium is a tractor produced by John Deere. It is equipped with a 413.7 ci 6.8 L engine. The listed engine power is Diesel (net): 115 hp / 85.8 kW; Diesel (gross): 120 hp / 89.5 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: John Deere AutoPowr. Operating weight: 11,200 lbs 5080 kg.

Overview

	2006 - 2008

Production
Manufacturer	John Deere

John Deere 6530 Premium Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 6530 Premium Power
Engine (gross)	120 hp 89.5 kW
Engine (net)	115 hp 85.8 kW
Engine (max)	128 hp 95.4 kW
PTO (claimed)	102 hp 76.1 kW
Boost PTO (claimed)	120 hp 89.5 kW

Mechanical
Four-wheel drive
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	54.7 gal 207.0 L
Optional Fuel	66 gal 249.8 L
Hydraulic system	14 gal 53.0 L
IVT Hydraulic system	16.4 gal 62.1 L

Hydraulics
Type	load-sensing pressure-flow compensating (PFC)
Capacity	14 gal 53.0 L
IVT Capacity	16.4 gal 62.1 L
Pressure	2,901 psi 200.0 bar
Valves	4 (Max)
Pump flow	15.9 gpm 60.2 lpm
Optional Pump flow	29.1 gpm 110.1 lpm

Tractor hitch
Rear Type	IIIN
Control	15.9
Optional Control	29.1
Rear lift (at ends)	14,880 lbs 6749 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/540E/1000
Engine RPM	540@2143
	540E@1684
	1000@2208
Front PTO Type	1000
Engine RPM	1000@2185

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	11,200 lbs 5080 kg
Front tire	420/70R28
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

Engine

Engine Detail — 413.7 ci / 6.8 L Diesel

Manufacturer	John Deere 6068HL480
Configuration	turbocharged diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	413.7 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Emissions	Tier III
Emission control	exhaust gas recirculation (EGR)
Rated Power (net)	115 hp 85.8 kW
Rated Power (gross)	120 hp 89.5 kW
Maximum Power (net)	123 hp 91.7 kW
Maximum Power (gross)	128 hp 95.4 kW
Fuel system	high-pressure common rail injection
Cooling system	viscous fan
Air cleaner	dry element
Rated RPM	2300
Idle RPM	845-2465
Operating RPM	1300-2300
Torque	362 lb-ft 490.9 Nm
Torque RPM	1500
Firing order	1-5-3-6-2-4
Starter volts	12
Starter power	4 hp 3.0 kW
Oil capacity	20.6 qts 19.5 L
Oil change	500 h
Coolant capacity	29.6 qts 28.0 L
Coolant change	1500 h
Intake valve clearance	0.014 inches 0.356 mm
Exhaust valve clearance	0.018 inches 0.457 mm

Transmission

Transmission options
24-speed partial power shift
36-speed partial power shift
infinitely variable transmission (IVT)

Transmission — John Deere PowrQuad Plus

Transmission	John Deere PowrQuad Plus
Type	partial power shift
Gears	24 forward and reverse
Clutch	PermaClutch II wet disc
Oil capacity	56 qts 53.0 L
Four power shift gears (1-4) in six synchronized ranges (A-F) with left-hand power shuttle. Optional de-clutch button allows range shifting without using the foot clutch.

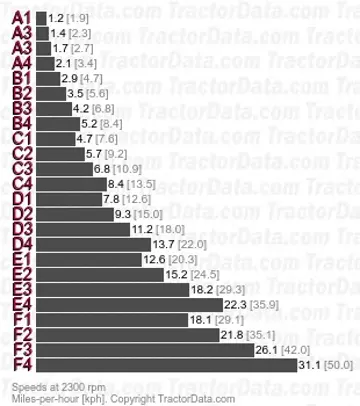

Transmission — John Deere AutoQuad Plus

Transmission	John Deere AutoQuad Plus
Type	partial power shift
Gears	24 forward and reverse
Clutch	PermaClutch II wet disc
Oil capacity	56 qts 53.0 L
AutoQuad Plus adds automatic load-matched gear shifting to the PowrQuad transmission. Available in 40kph or 50kph speeds.

Transmission — John Deere Creeper

Transmission	John Deere Creeper
Type	partial power shift
Gears	36 forward and reverse
Clutch	PermaClutch II wet disc
Oil capacity	56 qts 53.0 L
The optional creeper adds an additional twelve speeds to the PowrQuad or AutoQuad transmission.

Transmission — John Deere AutoPowr

Transmission	John Deere AutoPowr
Type	infinitely variable transmission (IVT)
Gears	infinite forward and reverse
Oil capacity	65.5 qts 62.0 L
The AutoPowr IVT is controlled by left-hand shuttle and a right-hand speed lever with speed wheel. The speed wheel sets the maximum speed. When set below 2kph, the transmission is automatically in creeper mode. AutoPowr available with 40kph and 50kph maximum speeds.

Dimensions

John Deere 6530 Premium Tires
Standard tires (ag)	Front: 420/70R28. Rear: 18.4R38

Dimensions
Wheelbase	104.3 inches 264 cm
Length	168.9 inches 429 cm
Width	91.2 inches 231 cm
Height	108 inches 274 cm
Front tread	63.9 to 83.3 inches 162 to 211 cm
Rear tread	63.9 to 79.6 inches 162 to 202 cm

John Deere 6530 Premium Weight
Shipping	11,200 lbs 5080 kg
Max capacity	20,940 lbs 9498 kg
Max rear axle	14,990 lbs 6799 kg
