John Deere 6600

The John Deere 6600 is a tractor produced by John Deere. It is equipped with a 358.8 ci 5.9 L engine. The rated power output is 110 hp 82.0 kW. Transmission: John Deere PowrQuad. Operating weight: 10,250 lbs 4649 kg.

Overview

	1993 - 1997 6000 SeriesRow-Crop tractor
1993 - 1997
6000 Series
Row-Crop tractor

Production
Manufacturer	John Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany

John Deere 6600 Engine
John Deere 5.9L 6-cyl diesel
Fuel tank	54.7 gal 207.0 L
Engine details ...

John Deere 6600 Power
Engine	110 hp 82.0 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic
Power steering
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Pressure	2900 psi 200.0 bar
Pump flow	15.9 gpm 60.2 lpm
	25.4 gpmOptOptional 96.1 lpm

Tractor hitch
Rear Type	II/IIIN
Rear lift	13620 lbs 6178 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000
	540/540E/1000
Engine RPM	540@2017
	540E@1684
	1000@2208
Front PTO	independent

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	10,250 lbs 4649 kg
Front tire	16.9R26
Rear tire	18.8R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	85
	120 OptOptional
Battery CCA	850
Battery volts	12
Battery AH	174

References
6-Cylindriga Traktorer I 6000-Serien published in 1995, by John Deere
Trattoti 6 Cilindri Serie 6000 published in 1996, by John Deere

Engine

Engine Detail — 358.8 ci / 5.9 L Diesel

Manufacturer	John Deere 6068
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	358.8 ci 5.9 L
Bore/Stroke	4.19x4.331 inches 106 x 110 mm
Power	110 hp 82.0 kW
Rated RPM	2100
Torque	335.6 lb-ft 455.1 Nm
Torque RPM	1400
Firing order	1-5-3-6-2-4
Starter	electric
Starter volts	12

Transmission

Transmission options
20-speed partial power shift
16-speed
24-speed

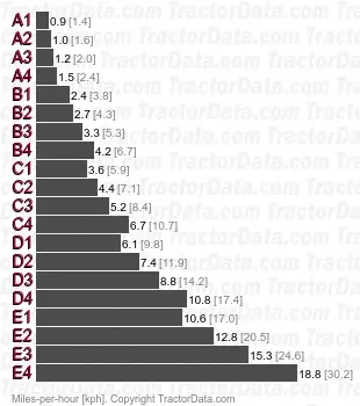

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	20 forward and reverse
Clutch	wet disc
Four power shift gears (1-4) in five ranges (A-E) with power shuttle.
With 18.4-38 rear tires.

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Gears	16 forward and 12 reverse

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Gears	24 forward and 16 reverse

Dimensions

John Deere 6600 Tires
Ag front	16.9R26
Ag rear	18.8R38

Dimensions
Wheelbase	104.3 inches 264 cm
Length	177.2 inches 450 cm
Width	91.3 inches 231 cm
Height (cab)	110.7 inches 281 cm
Weight	10,250 lbs 4649 kg
