John Deere 6605

The John Deere 6605 is a tractor produced by John Deere. It is equipped with a 414.4 ci 6.8 L engine. The rated power output is 121 hp 90.2 kW. Transmission: John Deere PowrQuad. Operating weight: 10050 to 10250 pounds.

Overview

	1998 - 2005 Utility tractor
1998 - 2005
Utility tractor

Production
Manufacturer	John Deere
Utility tractor

John Deere 6605 Engine
John Deere 6.8L 6-cyl diesel
Engine details ...

John Deere 6605 Power
Engine	121 hp 90.2 kW
PTO (claimed)	103 hp 76.8 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic
Power steering
Hydraulic wet disc brakes
Cab optional.

Capacity
Fuel	40.7 gal 154.0 L
Hydraulic system	15.1 gal 57.2 L
Front axle	7.1 qts 6.7 L
Front hubs	0.8 qts (each) 0.8 L

Hydraulics
Type	closed-center flow-compensated
Capacity	15.1 gal 57.2 L
Pressure	2900 psi 200.0 bar
Valves	2 to 3
Pump flow	17.44 gpm 66.0 lpm
	26.42 gpmOptOptional 100.0 lpm
SCV flow	15.85 gpm 60.0 lpm
Oil type	JD Hy-Gard		JD Hy-Gard

	JD Hy-Gard

Tractor hitch
Rear Type	II
Control	electronic lower link
Rear lift (at ends)	10,251 lbs 4649 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	10050 to 10250 pounds
Front tire	14.9-26
Rear tire	23.1-30
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	52
Cab Charging amps	75
Battery volts	12
Battery AH	150

Engine

Engine Detail — 414.4 ci / 6.8 L Diesel

Manufacturer	John Deere 6068T
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	414.4 ci 6.8 L
Bore/Stroke	4.19x5.00 inches 106 x 127 mm
Power	121 hp 90.2 kW
Rated RPM	2300
Torque	379 lb-ft 513.9 Nm
Torque RPM	1400
Starter volts	12
Coolant capacity	20.1 qts 19.0 L
Oil capacity	20.1 qts 19.0 L

Transmission

Transmission options
12-speed fully synchronized
16-speed partial power shift

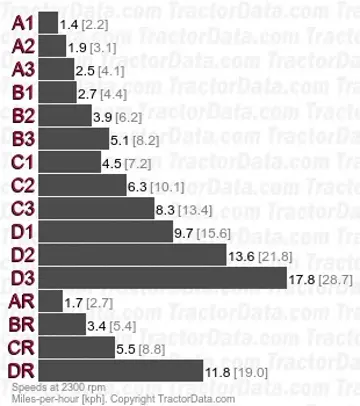

Transmission — John Deere SyncroPlus

Transmission	John Deere SyncroPlus
Type	fully synchronized
Gears	12 forward and 4 reverse
Clutch	hydraulic wet disc PermaClutch II
Oil capacity	60.2 qts 57.0 L
Oil type	JD Hy-Gard
Three synchronized gears (1-3) in four synchronized ranges (A-D). Optional creeper range provides a total of 24 forward gears.
With 18.4x34 R1 rear tires.

	JD Hy-Gard

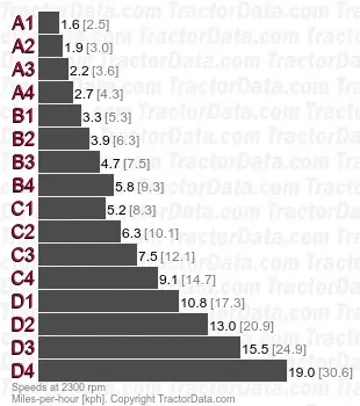

Transmission — John Deere PowrQuad

Transmission	John Deere PowrQuad
Type	partial power shift
Gears	16 forward and reverse
Clutch	hydraulic wet disc PermaClutch II
Oil capacity	60.2 qts 57.0 L
Oil type	JD Hy-Gard
Four power shift gears (1-4) in four synchronized ranges (A-D).
With 18.4-34 R1 rear tires. Reverse speeds are 15% faster than forward speeds.

	JD Hy-Gard

Dimensions

John Deere 6605 Tires
Standard tires (ag)	Front: 14.9-26. Rear: 23.1-30
Optional tires (ag)	Front: 14.9-24. Rear: 23.1-30
	Front: 14.9-24. Rear: 18.4-34
	Front: 14.9-24. Rear: 15.5-38 (duals)
	Front: 16.9-24. Rear: 18.4-38
	Front: 16.9-24. Rear: 23.1-30

Dimensions
Wheelbase	104.3 inches 264 cm
Length	193.7 inches 491 cm
Height	107.8 inches 273 cm
Flange rear axle
Rack-and-pinion rear axle
Front tread	63.6 to 84.8 inches 161 to 215 cm
Rear tread	71.3 inches 181 cm (flange)
Rear tread	61.6 to 91.2 inches 156 to 231 cm (bar)
Rear tread	64.4 to 75.5 inches 163 to 191 cm (bar with cab)

John Deere 6605 Weight
ROPS	10050 lbs 4558 kg
Cab	10250 lbs 4649 kg
Max capacity	15,430 lbs 6999 kg
