John Deere 7710

1997 - 2003

7010 Series

Row-Crop tractor

Manufacturer

John Deere

Row-Crop tractor

Built in Waterloo, Iowa, USA

John Deere 8.1L 6-cyl diesel

Engine

155 hp 115.6 kW

PTO (claimed)

135 hp 100.7 kW

Drawbar (tested)

123.87 hp 92.4 kW

PTO (tested)

151.46 hp 112.9 kW

Two- or four-wheel drive

Final drives

inboard planetary

Differential lock

electro-hydraulic

Power steering

Hydraulic wet disc brakes

Cab standard.

Fuel

71.5 gal (ROPS) 270.6 L

91 gal (cab) 344.4 L

Front axle

15.2 qts 14.4 L

Front hubs

2 qts 1.9 L

Type

closed center pressure flow compensated (PFC)

Pressure

2900 psi 200.0 bar

Valves

2 to 5

SCV flow

26 gpm 98.4 lpm

Rear Type

IIIN/II

Rear lift

8925 lbs 4048 kg

10050 lbsOptOptional 4558 kg

Front Hitch

IIIN/II OptOptional

Front lift

7700 lbs 3492 kg

Rear PTO

independent

Clutch

hydraulic wet discs

Rear PTO Type

540/1000 (1.375)

Engine RPM

540@2100

1000@2100

2WD Wheelbase

114.4 inches 290 cm

4WD Wheelbase

110.2 inches 279 cm

Weight

12352 to 15070 pounds

Front tire

11.00-16

2WD Rear tire

18.4-38

Ground

negative

Charging system

alternator

Charging amps

140

Batteries

2

Battery CCA

925

Battery volts

12

7000 TEN Series Tractors and 7405 Advantage Series Tractors Product Information Handbook published in 1998, by John Deere

7000 TEN Series Tractors and 7405 Advantage Series Tractors Product Information Handbook published in 1999, by John Deere

New 95- to 150-HP 7000 TEN Series Tractors published in 1996, by John Deere

7000 TEN Series published in 1999, by John Deere

New 7000 TEN Series Tractors - Feel The Earth Move published in 1996, by John Deere

Manufacturer

John Deere PowerTech

Configuration

turbocharged aftercooled diesel, 6-cylinder, liquid-cooled

Displacement

496 ci 8.1 L

Bore/Stroke

4.56x5.06 inches 116 x 129 mm

Power

155 hp 115.6 kW

Fuel system

direct injection

Air cleaner

dual dry element

Compression

16.5:1

Rated RPM

2100

Torque

522 lb-ft 707.8 Nm

Starter volts

12

Coolant capacity

27.5 qts 26.0 L

Oil capacity

25 qts 23.7 L

16-speed partial power shift

19-speed full power shift

Infinitely Variable Transmission (IVT)

20-speed partial power shift

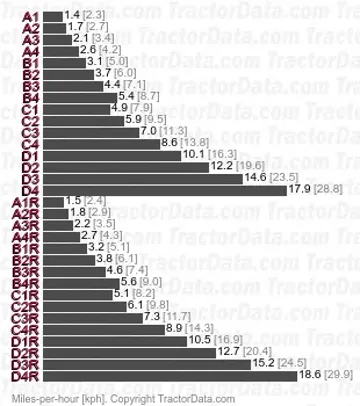

Transmission

John Deere PowrQuad

Type

partial power shift

Gears

16 forward and reverse

Oil capacity

91.6 qts (2WD) 86.7 L

103.6 qts (4WD) 98.0 L

Four speeds (1-4) in four ranges (A-D) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch. Also available as 20-speed with five ranges.

With 18.4-38 rear tires.

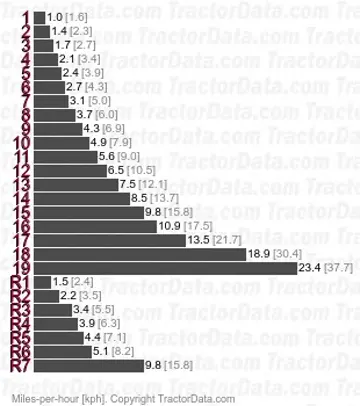

Transmission

John Deere PowerShift

Type

full power shift

Gears

19 forward and 7 reverse

Oil capacity

96 qts (2WD) 90.9 L

108 qts (4WD) 102.2 L

The power shift transmission is operated with a single right-hand shift lever. Transmission can be directly shifted up to gear 11 forward and 7 reverse.

With 18.4-38 rear tires.

Transmission

AutoPowr

Type

Infinitely Variable Transmission (IVT)

Gears

infinite forward and reverse

The AutoPowr IVT became available in 2002.

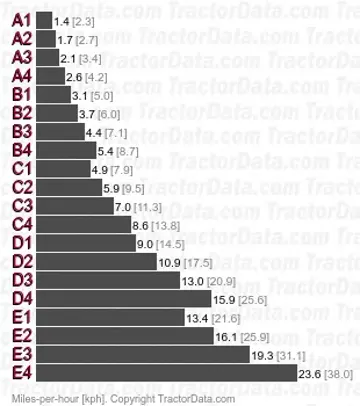

Transmission

John Deere AutoQuad

Type

partial power shift

Gears

20 forward and reverse

Oil capacity

91.6 qts (2WD) 86.7 L

103.6 qts (4WD) 98.0 L

Four speeds (1-4) in five ranges (A-E) with reverser lever. Speeds (1-4) and forward-reverse shuttle are power shifts. Ranges are synchronized, and may be shifting on the move by using the clutch. AutoQuad uses push-button gear shifting on the range shift lever. Auto mode allows for automatic gear shifting to match load.

With 18.4-38 rear tires.

2WD Standard tires (ag)

Front: 11.00-16. Rear: 18.4-38

4WD Standard tires (ag)

Front: 14.9-28. Rear: 18.4-38

2WD Wheelbase

114.4 inches 290 cm

4WD Wheelbase

110.2 inches 279 cm

Length

173 inches 439 cm

Width

110 inches 279 cm

Height

117 inches 297 cm

Rear axle

3.62 by 96 inches 91 by 2438 mm

Rear axle

3.62 by 110.5 inches 91 by 2806 mm

Rear axle

3.62 by 118.6 inches 91 by 3012 mm

Rear tread

60 to 85.7 inches 152 to 217 cm (2.5m axle)

Rear tread

60 to 100.3 inches 152 to 254 cm (2.8m axle)

Rear tread

60 to 108.3 inches 152 to 275 cm (3.0m axle)

2WD Shipping

12352 lbs 5602 kg

4WD Shipping

14142 lbs 6414 kg

Operating

15,070 lbs 6835 kg

Max Drawbar

3,150 lbs (extended) 1428 kg

6,280 lbs (short) 2848 kg

OECD 1726: diesel PowrQuad 16-speed 4WD

OECD 1727: diesel PowerShift 4WD

OECD 1788: diesel PowrQuad 20-speed 4WD

Diesel PowrQuad 16-speed 4WD May 13 - June 19, 1997 Link: OCED Tractor Test 1726 file

PTO performance

Max power

151.46 hp 112.9 kW

Fuel use

8.4 gal/hour 31.8 l/hour

Power at rated engine speed

130.79 hp 97.5 kW

Fuel use

8.1 gal/hour 30.7 l/hour

Drawbar performance

Max power

118.34 hp 88.2 kW

Fuel use

8.1 gal/hour 30.7 l/hour

Max pull

18,651 lbs 8460 kg

Diesel PowerShift 4WD May 15 - June 18, 1997 Link: OCED Tractor Test 1727 file

PTO performance

Max power

146.26 hp 109.1 kW

Fuel use

8.0 gal/hour 30.3 l/hour

Power at rated engine speed

130.91 hp 97.6 kW

Fuel use

7.9 gal/hour 29.9 l/hour

Drawbar performance

Max power

111.37 hp 83.0 kW

Fuel use

7.9 gal/hour 29.9 l/hour

Gear 9 used for power test.

Max pull

18,789 lbs 8522 kg

Gear 4 used for pull test.

Diesel PowrQuad 20-speed 4WD October 31 - November 29, 2000 Link: OCED Tractor Test 1788 file

PTO performance

Max power

150.94 hp 112.6 kW

Fuel use

8.1 gal/hour 30.7 l/hour

Power at rated engine speed

137.85 hp 102.8 kW

Fuel use

8.2 gal/hour 31.0 l/hour

Drawbar performance

Max power

123.87 hp 92.4 kW

Fuel use

8.2 gal/hour 31.0 l/hour

Max pull

19,685 lbs 8929 kg
