John Deere 9510R
The John Deere 9510R is a tractor produced by John Deere. It is equipped with a 826.7 ci 13.5 L engine. The listed engine power is Diesel (gross): 510 hp / 380.3 kW. Transmission: John Deere PowerShift. Operating weight: 41540 to 44255 pounds.
Engine Power
Diesel (gross): 510 hp / 380.3 kW
Fuel & Capacities
350 gal
1324.8 L
Transmission
John Deere PowerShift
Operating Weight
41540 to 44255 pounds
Overview
 | 2012 - 2014
9R/RT SeriesFour-wheel Drive (4WD) tractor
9R/RT Series
Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Four-wheel Drive (4WD) tractor | |
Built in Waterloo, Iowa, USA | |
Original price was $381,687 in 2014 | |
Variants | |
|---|---|
9510R | 4WD |
9510RT | crawler |
John Deere 9510R Engine | |
|---|---|
John Deere 13.5L 6-cyl diesel | |
Fuel tank | 350 gal
1324.8 L |
Engine details ...  | |
John Deere 9510R Transmission | |
|---|---|
18-speed full power shift | |
Transmission details ...  |
John Deere 9510R Power | |
|---|---|
Engine (gross) | 510 hp
380.3 kW |
Engine (max) | 561 hp
418.3 kW |
PTO (claimed) | 319 hp
237.9 kW |
Drawbar (tested) | 410.97 hp
306.5 kW |
PTO (tested) | 368.33 hp
274.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | inboard planetary with double-reduction axle |
Differential lock | fully-locking electro-hydraulic |
Steering | hydraulic power |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic optional |
CommandView II cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | closed center pressure flow compensated |
Pressure | 2900 psi
200.0 bar |
Valves | 4 to 6 |
Pump flow | 48 gpm
181.7 lpm |
78 gpm (High-Flow)
295.2 lpm | |
SCV flow | 37 gpm
140.0 lpm |
45 gpm (19.1mm SCV)
170.3 lpm | |
Tractor hitch | |
|---|---|
Rear Type | 4N/4 |
Control | electronic draft sensing |
Rear lift | 15,300 lbs
6940 kg |
20,000 lbs (optional)
9072 kg | |
Drawbar | Category 5 standard heavy-duty support and 5,440 kg load rating. (12,000 pound) |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent (optional) |
Rear PTO Type | 1000 (1.75) |
Dimensions & Tires | |
|---|---|
Wheelbase | 137.8 inches
350 cm |
Weight | 41540 to 44255 pounds |
Front tire | 710/70R42 |
Rear tire | 710/70R42 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 200 |
Charging volts | 12 |
Batteries | 3 |
Battery CCA | 925 |
Battery volts | 12 |
Engine
Engine Detail — 826.7 ci / 13.5 L Diesel
Manufacturer | John Deere PowerTech PSX |
Configuration | turbocharged diesel, 6-cylinder 24-valve, liquid-cooled inline |
Displacement | 826.7 ci
13.5 L |
Bore/Stroke | 5.197x6.496 inches
132 x 165 mm |
Emissions | Interim Tier 4 |
Emission control | exhaust gas recirculation (EGR) |
Rated Power (gross) | 510 hp
380.3 kW |
Maximum Power (gross) | 561 hp
418.3 kW |
Fuel system | electronic unit injectors |
Compression | 16:1 |
Rated RPM | 2100 |
Starter volts | 12 |
Transmission
Transmission — John Deere PowerShift
Transmission | John Deere PowerShift |
Type | full power shift |

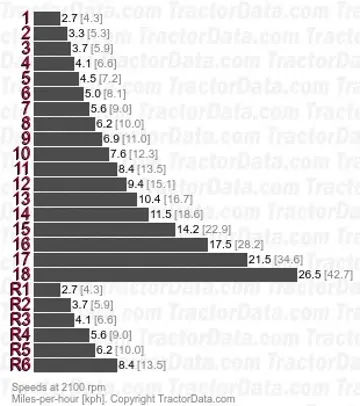

Gears | 18 forward and 6 reverse |
Clutch | hydraulic wet disc |
With Group 48 rear tires. | |
 | |
Dimensions
John Deere 9510R Tires | |
|---|---|
Ag front | 710/70R42 |
Ag rear | 710/70R42 |
Dimensions | |
|---|---|
Wheelbase | 137.8 inches
350 cm |
Length | 282 inches
716 cm |
With hitch Length | 295 inches
749 cm |
Width | 120 inches
304 cm |
Front axle | 4.72 by 120 inches
119 by 3048 mm |
Rear axle | 4.72 by 120 inches
119 by 3048 mm |
John Deere 9510R Weight | |
|---|---|
Shipping | 41540 lbs
18842 kg |
Operating | 44255 lbs (480/80R46 triples)
20074 kg |
Max capacity | 60000 lbs
27216 kg |
John Deere 9510R Height | |
|---|---|
Hood | 108 inches
274 cm |
Cab | 145 inches
368 cm |
151 inches (GPS)
383 cm | |
Exhaust | 177 inches
449 cm |
Tests
OCED Tractor Test 2042 | |
|---|---|
Diesel 18-seed 4WD
October 23 - 31, 2012
Link: OCED Tractor Test 2042 file | |
PTO performance | |
Max power | 368.33 hp
274.7 kW |
Power at rated engine speed | 320.07 hp
238.7 kW |
Fuel use | 21.0 gal/hour
79.5 l/hour |
Power at rated PTO speed | 360.20 hp
268.6 kW |
Fuel use | 21.5 gal/hour
81.4 l/hour |
Drawbar performance | |
Max power | 410.97 hp
306.5 kW |
Fuel use | 26.9 gal/hour
101.8 l/hour |
Gear 7 used for power test. | |
Max pull | 44915 lbs
20373 kg |
Gear 1 used for pull test. | |
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere 9510R based on its 510 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 9510R.
Estimated Continuous Field Runtime: 13.2 hrs
Approximately 13.2 hours of continuous field operation at ~75% rated power on a full tank (350 gal / 1324.9 L).
Estimated 75% Load Fuel Burn~26.5 gal/hr (100.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere 9510R Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere 9510R.
Converted Equivalents:
Horsepower (HP)510 hp
Kilowatts (kW)380.3 kW
Metric Horsepower (PS / CV)517.1 PS
