John Deere 115

The John Deere 115 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The rated power output is 19 hp 14.2 kW. Transmission: Tuff Torq T40. Operating weight: 450 lbs 204 kg.

Overview

	2006 Lawn tractor
2006
Lawn tractor

Production
Manufacturer	John Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
Original price was $1,599 in 2006

John Deere 115 Engine
19HP Briggs & Stratton 501cc 1-cyl gasoline
Fuel tank	2.1 gal 7.9 L
Engine details ...

John Deere 115 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Dimensions & Tires
Wheelbase	48.9 inches 124 cm
Weight	450 lbs 204 kg
Front tire	15x6-6
Rear tire	20x8-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	Regulated circuit
Charging amps	9
Battery volts	12
Battery Group	U1

References
Operator's Manual 100 Series (OMGX21821) published in 2006

Engine

Engine Detail — 501 cc / 30.6 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	501 cc 30.6 ci
Bore/Stroke	3.56x3.06 inches 90 x 78 mm
Power	19 hp 14.2 kW
Starter volts	12
Sparkplug gap	0.030 inches 0.762 mm
Point gap	0.012 inches 0.305 mm
Intake valve clearance	0.004 inches 0.102 mm
Exhaust valve clearance	0.006 inches 0.152 mm
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — Tuff Torq T40

Transmission	Tuff Torq T40
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

John Deere 115 Tires
Lawn/turf front	15x6-6
Lawn/turf rear	20x8-8

Dimensions
Wheelbase	48.9 inches 124 cm
Length	69 inches 175 cm
Width	52 inches 132 cm
Height	41 inches 104 cm
Weight	450 lbs 204 kg

Attachments

42" Mower deck
Type	mid-mount John Deere
	manual lift
Cutting width	42 inches 106 cm

Photos

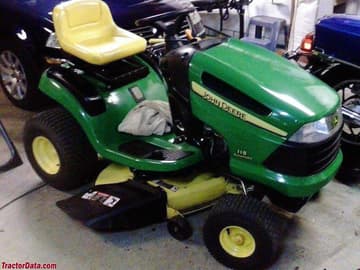

John Deere 115 lawn tractor, right side.

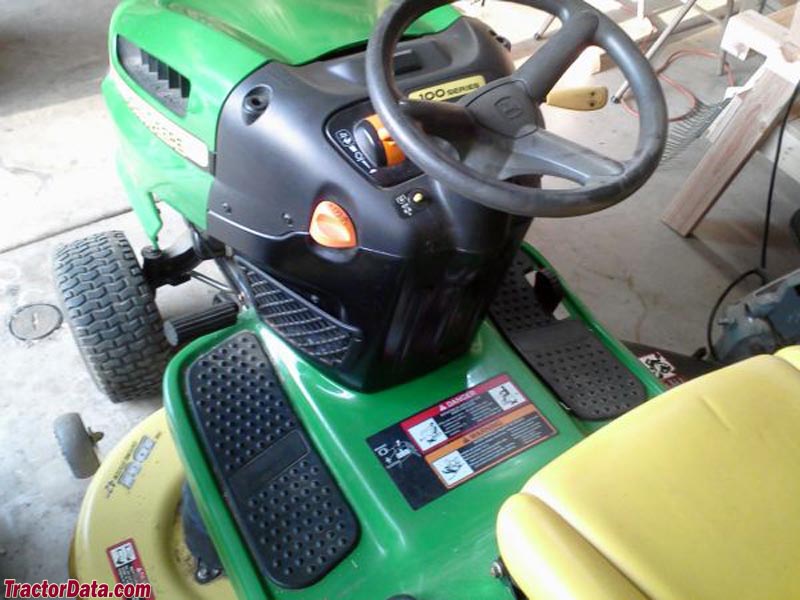

John Deere 115 lawn tractor controls.

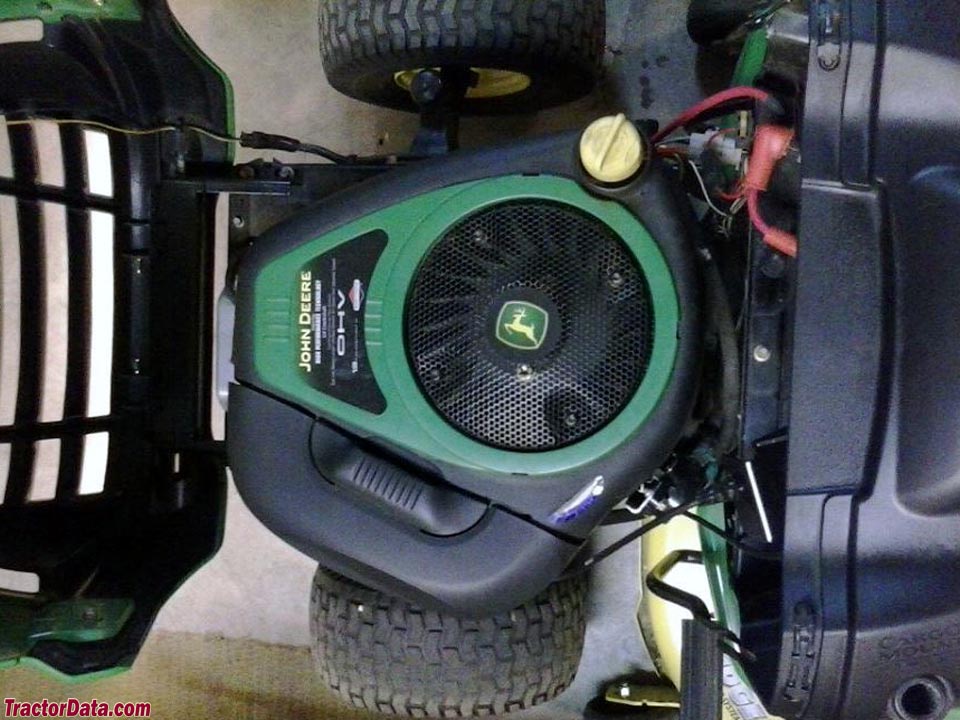

John Deere 115 engine.
