John Deere X720

The John Deere X720 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 745 cc 45.5 ci engine. The rated power output is 27 hp 20.1 kW. Transmission: Tuff Torq K92. Operating weight: 844 lbs*Weight of the tractor only. 382 kg.

Overview

	2006 - 2012 Select X700 SeriesGarden tractor
2006 - 2012
Select X700 Series
Garden tractor

Production
Manufacturer	John Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $8,749 in 2011

Variants
X720	two-wheel drive
X724	2WD, all-wheel steer
X728	four-wheel drive
X729	4WD, all-wheel steer
X720SE	upgraded seat, tires, and brush guard

John Deere X720 Engine
27HP Kawasaki 745cc 2-cyl gasoline
Fuel tank	6.5 gal (2006-2010) 24.6 L
	5.2 gal (2011-) 19.7 L
Engine details ...

John Deere X720 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Power steering
Wet disc brakes
Open operator station featuring 18-inch seat with 7-inches of adjustment. Cup holder, toolbox, tilt steering, and 12-volt outlet standard. Optional soft-side or hard cab. Special Edition seat has armrests plus tilt and lumbar adjustment.

Hydraulics
Pressure	924 psi 63.7 bar
Valves	2
Total flow	4.5 gpm 17.0 lpm

Tractor hitch
Rear Type	0 OptOptional
	1-Limited OptOptional

Power Take-off (PTO)
Rear PTO	independent (optional)
Rear PTO Type	540
Mid PTO	independent
Mid PTO Type	2000
Front PTO	optional
Front PTO Type	2000

Dimensions & Tires
Wheelbase	54.5 inches 138 cm
Weight	844 to 1139 pounds
Front tire	18x8.5-8
Rear tire	26x12-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	20
	40 OptOptional
Battery CCA	340
Battery volts	12

References
Select Series Tractors published in 2007, by John Deere
Select Series Tractors published in 2009, by John Deere
Select Series Tractors published in 2012, by John Deere
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
Riding Lawn Equipment Attachments & Accessories published in 2011, by John Deere

Engine

Engine Detail — 745 cc / 45.5 ci Gasoline

Manufacturer	Kawasaki FD750DEFI
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled V-twin
Displacement	745 cc 45.5 ci
Bore/Stroke	3.07x3.07 inches 78 x 78 mm
Power (gross)	27 hp 20.1 kW
Fuel system	electronic fuel injection
Air cleaner	paper element
Compression	8.5:1
Idle RPM	1600-3550
Starter volts	12
Starter power	1.1 hp 0.8 kW
Oil capacity	1.9 qts 1.8 L
Coolant capacity	4.2 qts 4.0 L

Transmission

Transmission — Tuff Torq K92

Transmission	Tuff Torq K92
Type	shaft-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	7 qts 6.6 L
Hydrostatic transmission with Twin Touch foot pedals and dashboard-mounted cruise control standard.
26-inch tires.

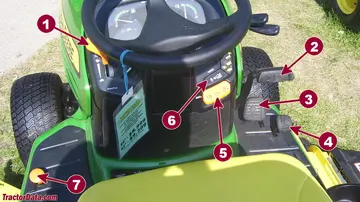

X720 Transmission Controls
1	Throttle
2	Brake
3	Forward
4	Reverse
5	Parking brake
6	Cruise control
7	Differential lock

Dimensions

John Deere X720 Tires
Lawn/turf front	18x8.5-8
Lawn/turf rear	26x12-12

Dimensions
Wheelbase	54.5 inches 138 cm
Length	78.8 inches 200 cm
Width	46.8 inches 118 cm
Height	51.2 inches 130 cm
Weight	844 lbs*Weight of the tractor only. 382 kg
Operating weight	1139 lbs*Weight with 62X deck. 516 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
62" mid-mount mower deck
60" mid-mount mower deck
Front-end loader
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

John Deere X720

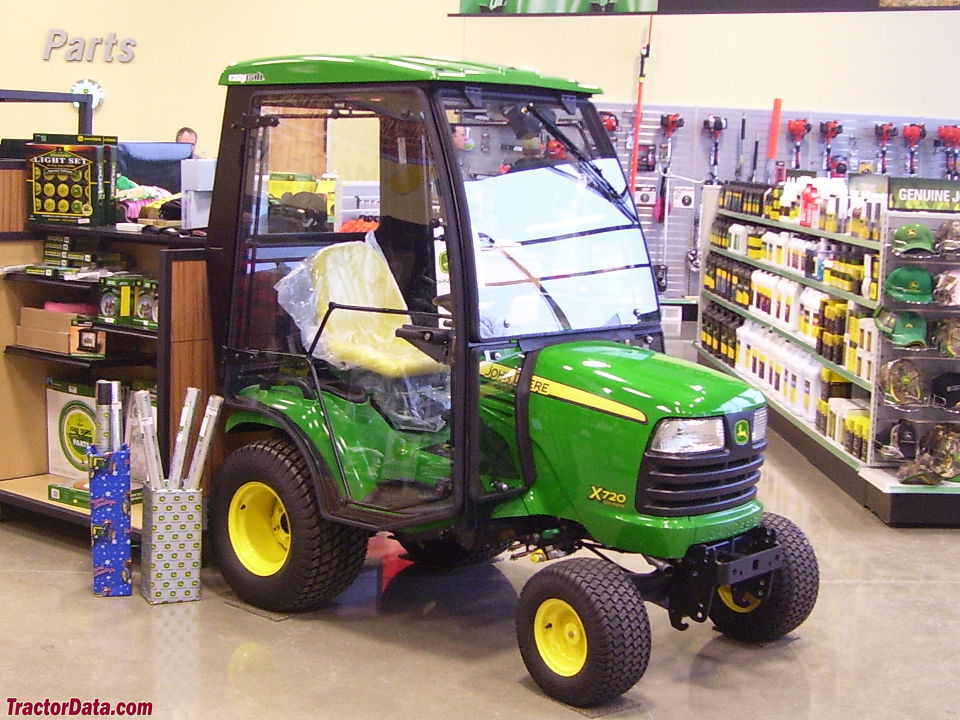

John Deere X720 with Cozy Cab built hard cab.

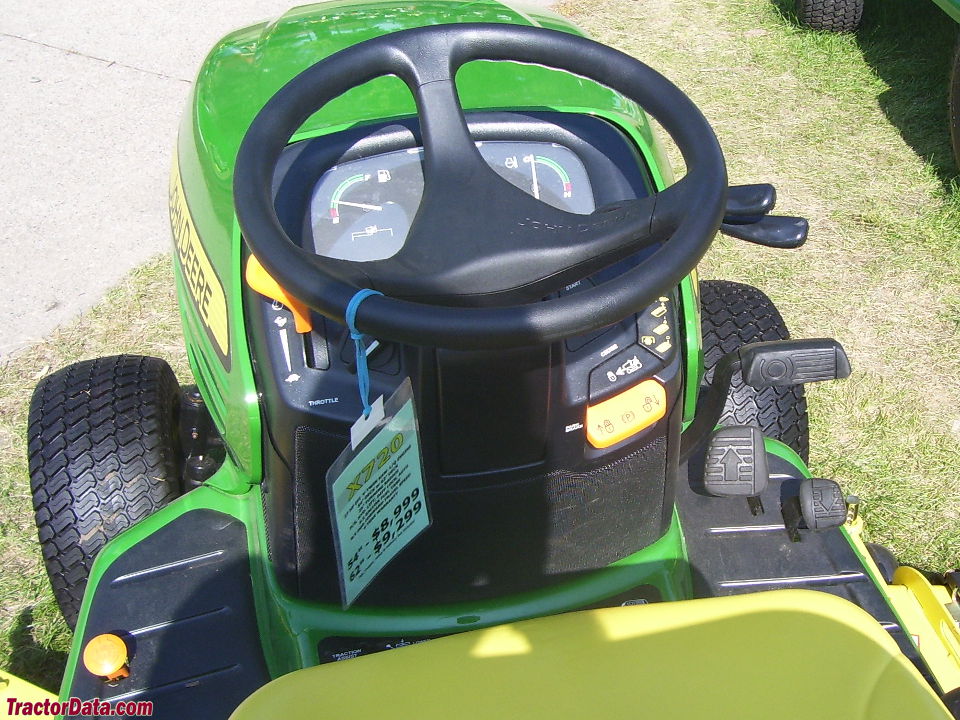

John Deere X720 operator station and controls.
