TYM T264

The TYM T264 is a tractor produced by Tym. It is equipped with a 71.7 ci 1.2 L engine. The listed engine power is Diesel (gross): 24.1 hp / 18.0 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 787 lbs*Weight without bucket. 356 kg.

Engine Power
Diesel (gross): 24.1 hp / 18.0 kW
Fuel & Capacities
6.6 gal 25.0 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
787 lbs*Weight without bucket. 356 kg

Overview

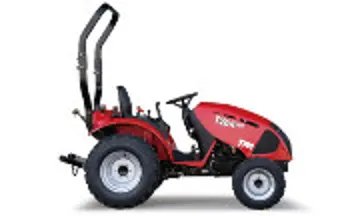

TYM T264 tractor photo
2019 - Compact Utility tractor
2019 -
Compact Utility tractor
Production
Manufacturer
TYM
Compact Utility tractor
TYM T264 Engine
Kukje 1.2L 3-cyl diesel
Fuel tank
6.6 gal 25.0 L
Engine details ...
TYM T264 Transmission
hydrostatic
Transmission details ...
TYM T264 Power
Engine (gross)
24.1 hp 18.0 kW
PTO (claimed)
18.3 hp 13.6 kW
Mechanical
Power steering
Wet disc brakes
Two-post folding ROPS.
Hydraulics
Type
open center
Pump flow
4.4 gpm 16.7 lpm
Total flow
7.1 gpm 26.9 lpm
Steering flow
2.7 gpm 10.2 lpm
Tractor hitch
Rear Type
I
Control
position control
Rear lift (at ends)
1503 lbs 681 kg
Rear lift (at 24"/610mm)
1102 lbs 499 kg
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540 (1.375)
Mid PTO
independent
Mid PTO Type
2000
Dimensions & Tires
Wheelbase
58.3 inches 148 cm
Weight
1881 lbs 853 kg
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
50
Battery volts
12

Engine

Engine Detail — 71.7 ci / 1.2 L Diesel

Manufacturer
Kukje A1100N2
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
71.7 ci 1.2 L
Bore/Stroke
3.07x3.23 inches 78 x 82 mm
Power (gross)
24.1 hp 18.0 kW
Fuel system
indirect injection
Air cleaner
dry
Rated RPM
2600
Starter
electric
Starter volts
12
Oil capacity
4.5 qts 4.3 L
Coolant capacity
5.9 qts 5.6 L

Transmission

Transmission — infinite forward and reverse (2-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (2-range)
Oil capacity
18 qts 17.0 L

Dimensions

TYM T264 Tires
Industrial front
23x8.5-12
Industrial rear
12x16.5
Dimensions
Wheelbase
58.3 inches 148 cm
Length
107.8 inches 273 cm
Width
52.8 inches 134 cm
Height (ROPS)
89.8 inches 228 cm
Weight
1881 lbs 853 kg
Ground clearance
7.7 inches 19 cm

Attachments

Attachment overview
Front-end loader
Backhoe
TYM BY200 Backhoe
Backhoe type
TYM BY200 Backhoe
Weight
787 lbs*Weight without bucket. 356 kg
Transport height
73.1 inches 185 cm
Bucket width
9 inches 22 cm
12 inches 30 cm
16 inches 40 cm
18 inches 45 cm
2-Foot flat digging depth
76.3 inches 193 cm
Reach from pivot
105.4 inches 267 cm
Loading height
63.6 inches 161 cm
Bucket Rotation
172°
Swing Arc
180°
Bucket force
2877 lbs 1305 kg
Dipperstick force
1748 lbs 792 kg

Photos

TYM T264 tractor photo

TYM T264 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Tym T264 based on its 24.1 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Tym T264.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (6.6 gal / 25 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (4.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Tym T264 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Tym T264.

Converted Equivalents:

Horsepower (HP)24.1 hp
Kilowatts (kW)18 kW
Metric Horsepower (PS / CV)24.4 PS
