Kubota L4760
The Kubota L4760 is a tractor produced by Kubota. It is equipped with a 148.5 ci 2.4 L engine. The rated power output is 47 hp 35.0 kW. Transmission: infinite (3-range). Operating weight: 3847 to 4222 pounds.
Engine Power
47 hp
35.0 kW
Fuel & Capacities
13.5 gal
51.1 L
Transmission
infinite (3-range)
Operating Weight
3847 to 4222 pounds
Kubota L4760 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2013 -
L60 SeriesCompact Utility tractor |
|---|---|
2013 - | |
L60 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Kubota |
Compact Utility tractor | |
Variants | |
|---|---|
L4760DT | Glide Shift |
L4760HST | hydrostatic |
L4760HSTC | hydro cab |
Kubota L4760 Engine | |
|---|---|
Kubota 2.4L 4-cyl diesel | |
Fuel tank | 13.5 gal
51.1 L |
Engine details ...  | |
Kubota L4760 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Kubota L4760 Power | |
|---|---|
Engine (gross) | 49 hp
36.5 kW |
Engine (net) | 47 hp
35.0 kW |
PTO (claimed) | 41 hp (gear)
30.6 kW |
39.5 hp (hydro)
29.5 kW | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Two-post foldable ROPS. Grand Cab with air-conditioning available with hydrostatic. | |
Hydraulics | |
|---|---|
Gear Pump flow | 9.8 gpm
37.1 lpm |
Hydro Pump flow | 9.4 gpm
35.6 lpm |
Gear Total flow | 14.7 gpm
55.6 lpm |
Hydro Total flow | 14.1 gpm
53.4 lpm |
Gear Steering flow | 4.9 gpm
18.5 lpm |
Hydro Steering flow | 4.7 gpm
17.8 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control, draft control optional |
Rear lift (at 24"/610mm) | 2760 lbs
1251 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Mid PTO | optional |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 74.6 inches
189 cm |
Weight | 3847 to 4222 pounds |
Front tire | 8.3-16 |
Rear tire | 14.9-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
ROPS Charging amps | 40 |
Cab Charging amps | 60 |
Battery volts | 12 |
Engine
Engine Detail — 148.5 ci / 2.4 L Diesel
Manufacturer | Kubota |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 148.5 ci
2.4 L |
Bore/Stroke | 3.4x4.0 inches
86 x 102 mm |
Emissions | Tier IV |
Emission control | exhaust gas recirculation (EGR) |
Power (net) | 47 hp
35.0 kW |
Power (gross) | 49 hp
36.5 kW |
Fuel system | direct injection |
Rated RPM | 2700 (gear) |
2600 (hydro) | |
Starter | electric |
Starter volts | 12 |
Transmission

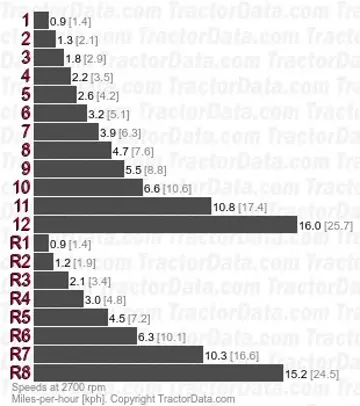

Transmission — Kubota Glide Shift
Transmission | Kubota Glide Shift |
Gears | 12 forward and 8 reverse |
Clutch | hydraulic dry disc |
 | |
Transmission — HST Plus
Transmission | HST Plus |
Gears | Hydrostatic transmission with three ranges plus Hydro Dual Speed Hi-Lo. The Dual Speed allows rapid switching between two speeds in range, either automatically or with a lever on the steering column. forward and hydrostatic reverse |
Clutch | infinite (3-range) |
 | |
Transmission — infinite (3-range)
Transmission | infinite (3-range) |
Dimensions
Kubota L4760 Tires | |
|---|---|
Ag front | 8.3-16 |
Ag rear | 14.9-24 |
Dimensions | |
|---|---|
Wheelbase | 74.6 inches
189 cm |
Length | 121.5 inches
308 cm |
Width | 66.5 inches (min)
168 cm |
Height (ROPS) | 97.6 inches
247 cm |
Height (cab) | 91.1 inches
231 cm |
Ground clearance | 12.2 inches
30 cm |
Flange rear axle | |
Front tread | 51.2 inches
130 cm |
Rear tread | 50.6/56.5/60.2 inches
128/143/152 cm |
Kubota L4760 Weight | |
|---|---|
3847 lbs (GST ROPS)
1744 kg | |
3847 lbs (hydro ROPS)
1744 kg | |
4222 lbs (hydro cab)
1915 kg | |
Attachments
Attachment overview | |
|---|---|
Snowblower | |
Blade | |
Front-end loader | |
Backhoe |
Kubota BH92 Backhoe | |
|---|---|
Backhoe type | Kubota BH92 Backhoe |
Transport height | 100.1 inches
254 cm |
Bucket width | 12 inches
30 cm |
16 inches
40 cm | |
24 inches
60 cm | |
30 inches
76 cm | |
36 inches
91 cm | |
Digging depth | 109.8 inches
278 cm |
Loading height | 84.3 inches
214 cm |
Bucket Rotation | 180° |
Swing Arc | 180° |
Bucket force | 4548 lbs
2062 kg |
Dipperstick force | 2698 lbs
1223 kg |
