Kubota MX4800

The Kubota MX4800 is a tractor produced by Kubota. It is equipped with a 148.6 ci 2.4 L engine. The listed engine power is Diesel (net): 46.9 hp (shuttle) / 35.0 kW; Diesel (gross): 49.3 hp / 36.8 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3469 to 3729 pounds.

Overview

	2014 - 2020 MX SeriesUtility tractor MX Series Utility tractor

Production
Manufacturer	Kubota
Utility tractor
Original price	$20,621 (2014 shuttle 2WD )
	$27,521 (2014 hydro 4WD )

Kubota MX4800 Engine
Kubota 2.4L 4-cyl diesel
Fuel tank	13.5 gal 51.1 L
Engine details ...

Kubota MX4800 Power
Engine (gross)	49.3 hp 36.8 kW
Engine (net)	46.9 hp 35.0 kW
PTO (claimed)	40.5 hp (shuttle) 30.2 kW
	39 hp (hydro) 29.1 kW

Mechanical
Two- or four-wheel drive
Final drives	mechanical rear
Steering	hydrostatic power
Mechanical wet disc brakes
Two-post foldable ROPS.

Hydraulics
Type	open center
Valves	up to 3
Pump flow	9.5 gpm 36.0 lpm
Steering flow	4.9 gpm 18.5 lpm

Tractor hitch
Rear Type	II/I
Control	position control
	draft control optional
Rear lift (at ends)	telescoping lbs 0 kg
Rear lift (at 24"/610mm)	2310 lbs 1047 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	wet disc
Rear PTO Type	540

Dimensions & Tires
Wheelbase	74.6 inches 189 cm
Weight	3469 to 3729 pounds
Front tire	7.5L-15
Rear tire	14.9-26 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	45
Battery volts	12

Engine

Engine Detail — 148.6 ci / 2.4 L Diesel

Manufacturer	Kubota V2403CR
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	148.6 ci 2.4 L
Emissions	Tier 4
Power (net)	46.9 hp (shuttle) 35.0 kW
	46.3 hp (hydro) 34.5 kW
Power (gross)	49.3 hp 36.8 kW
Fuel system	common rail direct injection
Air cleaner	dry dual element
Rated RPM	2700
Starter	electric
Starter volts	12

Transmission

Transmission options
8-speed synchronized shuttle
hydrostatic

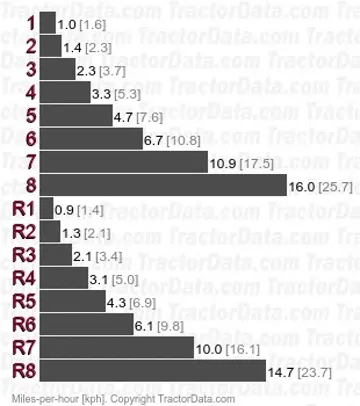

Transmission — 8 forward and reverse synchronized shuttle

Type	synchronized shuttle
Gears	8 forward and reverse
Clutch	dry disc

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

Kubota MX4800 Tires
Standard tires (ag)	Front: 7.5L-15. Rear: 14.9-26 (2WD)
	Front: 9.5-16. Rear: 14.9-26 (4WD)

Dimensions
Wheelbase	74.6 inches 189 cm
2WD Length	127.8 inches 324 cm
4WD Length	126.2 inches 320 cm
Width	69.7 inches 177 cm
Height (ROPS)	95.7 inches 243 cm
2WD Ground clearance	15.9 inches 40 cm
4WD Ground clearance	15.2 inches 38 cm
Front tread	50.4 to 62.2 inches 128 to 157 cm (2WD)
Front tread	52.2 inches 132 cm (4WD)
Rear tread	54.1 to 58.7 inches 137 to 149 cm

Kubota MX4800 Weight
	3469 lbs (2WD shuttle) 1573 kg
	3712 lbs (4WD shuttle) 1683 kg
	3729 lbs (4WD hydro) 1691 kg

Attachments

Attachment overview
Front-end loader
Backhoe

Kubota BH92 Backhoe
Backhoe type	Kubota BH92 Backhoe
2-Foot flat digging depth	109.8 inches 278 cm
Reach from pivot	150.4 inches 382 cm
Loading height	84.3 inches 214 cm
Bucket Rotation	180°

Photos

Kubota MX4800 with LA1065 front-end loader, left side.

Kubota MX4800 with LA1065 front-end loader, right side.

Kubota MX4800 tractor.

Kubota MX4800 tractor.
