Kubota MX5100

The Kubota MX5100 is a tractor produced by Kubota. It is equipped with a 148.6 ci 2.4 L engine. The listed engine power is Diesel (net): 50 hp / 37.3 kW; Diesel (gross): 52.2 hp / 38.9 kW. Transmission: infinite forward and reverse (3-range). Drive type: 4x2 2WD. Operating weight: 3369 to 3774 pounds.

Overview

	2009 - 2014 MX SeriesUtility tractor MX Series Utility tractor

Production
Manufacturer	Kubota
Utility tractor
Original price was $16,989 in 2011

Variants
MX5100F	2WD gear
MX5100DT	4WD gear
MX5100HST	4WD hydro

Kubota MX5100 Engine
Kubota 2.4L 4-cyl diesel
Engine details ...

Kubota MX5100 Power
Engine (gross)	52.2 hp 38.9 kW
Engine (net)	50 hp 37.3 kW
PTO (claimed)	44 hp (gear) 32.8 kW
	42.5 hp (hydro) 31.7 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Differential lock	rear standard
Steering	hydrostatic power
Mechanical wet disc brakes
Two-post foldable ROPS. Optional canopy.

Capacity
Fuel	13.2 gal 50.0 L
Hydraulic system	11.6 gal 43.9 L
Front axle	7.9 qts 7.5 L

Hydraulics
Type	open center
Capacity	11.6 gal 43.9 L
Valves	0 to 3
Pump flow	9.2 gpm 34.8 lpm
Total flow	14 gpm 53.0 lpm
Steering flow	4.8 gpm 18.2 lpm

Tractor hitch
Rear Type	II/I
Rear lift (at ends)	2,866 lbs 1300 kg
Rear lift (at 24"/610mm)	2,310 lbs 1047 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2700

Dimensions & Tires
Wheelbase	74.6 inches 189 cm
Weight	3369 to 3774 pounds
Front tire	7.5L-15
Rear tire	14.9-26 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	582
Battery volts	12

Engine

Engine Detail — 148.6 ci / 2.4 L Diesel

Manufacturer	Kubota V2403-M-T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	148.6 ci 2.4 L
Emissions	Interim Tier IV
Emission control	EGR
Power (net)	50 hp 37.3 kW
Power (gross)	52.2 hp 38.9 kW
Air cleaner	dual dry element
Rated RPM	2700
Starter	electric
Starter volts	12
Oil capacity	8 qts 7.6 L
Coolant capacity	7.9 qts 7.5 L

Transmission

Transmission options
8-speed partially synchronized
hydrostatic

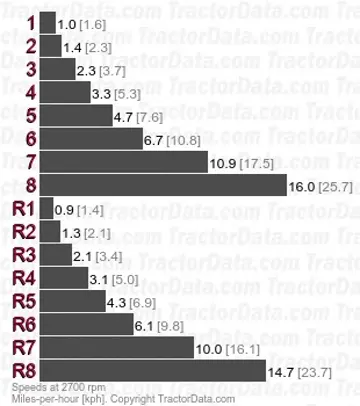

Transmission — 8 forward and reverse partially synchronized

Manufacturer	Synchro Shuttle
Type	partially synchronized
Gears	8 forward and reverse
Clutch	dry disc
Transmission is synchronized between gears 3-4 and shuttle shifting.
With 14.9-26 R1 rear tires.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
Hydrostatic transmission with three ranges and treadle foot pedal. Cruise control standard.
With 14.9-26 R1 rear tires.

Dimensions

Kubota MX5100 Tires
Standard tires (ag)	Front: 7.5L-15. Rear: 14.9-26 (2WD)
	Front: 9.5-16. Rear: 14.9-26 (4WD)
Optional tires (ag)	Front: 7.5L-15. Rear: 13.6-28 (2WD)
	Front: 9.5L-15. Rear: 13.6-28 (2WD)
	Front: 9.5L-14.9-26 . Rear: (2WD)
	Front: 9.5-16. Rear: 13.6-28 (4WD)
Lawn/turf front	29x12.50-15
	305R343
Lawn/turf rear	44x18-20
	610R470
Industrial front	12-16.5 (4WD)
Industrial rear	17.5L-24 (4WD)

Dimensions
Wheelbase	74.6 inches 189 cm
Length	127.8 inches (2WD) 324 cm
	122.8 inches (4WD) 311 cm
Width	69.7 inches 177 cm
Height (ROPS)	95.7 inches 243 cm
Ground clearance	15.9 inches (2WD) 40 cm
	15.2 inches (4WD) 38 cm
Front tread	50.4 to 62.2 inches 128 to 157 cm (2WD)
Front tread	52.5 to 52.2 inches 133 to 132 cm
Rear tread	54.1 to 58.7 inches 137 to 149 cm

Kubota MX5100 Weight
	3369 lbs (2WD gear) 1528 kg
	3620 lbs (4WD gear) 1642 kg
	3774 lbs (4WD hydro) 1711 kg

Attachments

Attachment overview
Front-end loader
Backhoe

Kubota BH92 Backhoe
Backhoe type	Kubota BH92 Backhoe

Photos

Kubota MX5100

Kubota MX5100 with LA844 front-end loader.

Kubota MX5100 with LA844 front-end loader.

Kubota MX5100 with LA844 front-end loader.

Kubota MX5100 with LA844 front-end loader.
