Kubota F3560

The Kubota F3560 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1498 cc 91.41 ci engine. The listed engine power is Diesel (gross): 33 hp / 24.6 kW. Transmission: infinite forward and reverse (2-range). Drive type: 4x4 4WD. Operating weight: 1389 lbs*Weight of machine without mower deck. 630 kg.

Engine Power
Diesel (gross): 33 hp / 24.6 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
10.6 gal 40.1 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
1389 lbs*Weight of machine without mower deck. 630 kg

Overview

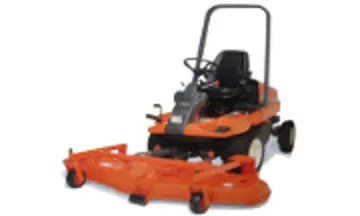

Kubota Lawn Tractors F3560 tractor photo
1997 - 2003 F60 SeriesFront-mount mower F60 Series Front-mount mower
Production
Manufacturer
Kubota
Front-mount mower
Kubota F3560 Engine
24.6KW Kubota 1498cc 4-cyl diesel
Fuel tank
10.6 gal 40.1 L
Engine details ...
Kubota F3560 Transmission
hydrostatic
Transmission details ...
Mechanical
Drive
4x4 4WD
Power steering
Wet disc brakes
Two-post ROPS
Power Take-off (PTO)
Front PTO
independent
Clutch
hydraulic wet disc
Front PTO Type
Kubota 10-tooth
Dimensions & Tires
Wheelbase
51.2 inches 130 cm
Weight
1389 lbs 630 kg
Front tire
24x8.5-12
Rear tire
18x7.00-8
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
F3560 references literature
F60 Series published in 1996, by Kubota
Operator's Manual F2260, F2560, F2560E, F3060, F3560 (K3513-6291-2) published in 1996
Workshop Manual F2260, F2560(E), F3060, F3560 (9Y011-11903) published in 1996

Engine

Kubota F3560 tractor photo
1997 - 2003 F60 SeriesFront-mount mower
1997 - 2003
F60 Series
Front-mount mower

Engine Detail — 1498 cc / 91.41 ci Diesel

Manufacturer
Kubota V1505
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
1498 cc 91.41 ci
Bore/Stroke
3.07x3.09 inches 78 x 78 mm
Power (gross)
33 hp 24.6 kW
Compression
22:1
Rated RPM
2700
Firing order
1-3-4-2
Starter
electric
Starter volts
12
Oil capacity
2.8 qts 2.6 L
Coolant capacity
4.1 qts 3.9 L

Transmission

Kubota F3560 tractor photo
1997 - 2003 F60 SeriesFront-mount mower
1997 - 2003
F60 Series
Front-mount mower

Transmission — infinite forward and reverse (2-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (2-range)
Oil capacity
14.3 qts 13.5 L
F3560  hydrostatic speeds

Dimensions

Kubota F3560 tractor photo
1997 - 2003 F60 SeriesFront-mount mower
1997 - 2003
F60 Series
Front-mount mower
Kubota F3560 Tires
Lawn/turf front
24x8.5-12
Lawn/turf rear
18x7.00-8
Dimensions
Wheelbase
51.2 inches 130 cm
Length
92.1 inches 233 cm
Width
44.5 inches 113 cm
Height (ROPS)
75.6 inches 192 cm
Weight
1389 lbs*Weight of machine without mower deck. 630 kg
Ground clearance
6.9 inches 17 cm
Front tread
36.1 inches 91 cm
Rear tread
34.4 inches 87 cm

Attachments

Kubota F3560 tractor photo
1997 - 2003 F60 SeriesFront-mount mower
1997 - 2003
F60 Series
Front-mount mower
Attachment overview
152 cm front-mount mower deck
182 cm front-mount mower deck

Photos

Kubota Lawn Tractors F3560 tractor authentic field photo (1)

High-resolution operational photo of Kubota Lawn Tractors F3560 tractor in agricultural operations

Kubota F3560 tractor photo

Kubota F3560 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota F3560 based on its 33 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota F3560.

Estimated Continuous Field Runtime: 6.2 hrs

Approximately 6.2 hours of continuous field operation at ~75% rated power on a full tank (10.6 gal / 40.1 L).

Estimated 75% Load Fuel Burn~1.7 gal/hr (6.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
