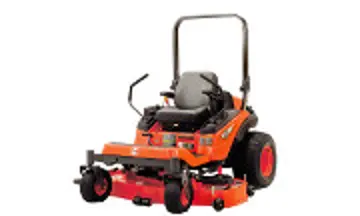

Kubota ZG327
The Kubota ZG327 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 768 cc 46.9 ci engine. The listed engine power is Gasoline (gross): 27 hp / 20.1 kW. Transmission: infinite forward and reverse. Operating weight: 1565 lbs 709 kg.
Overview
![]() | 2008 - ????
Z300 SeriesZero-turn mower |
|---|---|
2008 - ???? | |
Z300 Series | |
Zero-turn mower | |
2008 - ???? | |
|---|---|
Z300 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Kubota |
Zero-turn mower | |
Original price | $11,394 (2015 ) |
$12,099 (2021 ) | |
Kubota ZG327 Engine | |
|---|---|
27HP Kubota 768cc 2-cyl gasoline | |
Fuel tank | 12.7 gal
48.1 L |
Engine details ... | |
Kubota ZG327 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | differential power |
Wet discs brakes | |
Two-post foldable ROPS. | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | hydraulic wet disc |
Dimensions & Tires | |
|---|---|
Wheelbase | 55.5 inches
140 cm |
Weight | 1565 lbs
709 kg |
Front tire | 15x6.0-6 |
Rear tire | 26x12.0-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 13.4 |
Charging volts | 12 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Z200/Z300 Series published in 2016, by Kubota | |
ZG Series published in 2019, by Kubota |
Engine
![]() | 2008 - ????
Z300 SeriesZero-turn mower |
|---|---|
2008 - ???? | |
Z300 Series | |
Zero-turn mower | |
2008 - ???? | |
|---|---|
Z300 Series | |
Zero-turn mower |

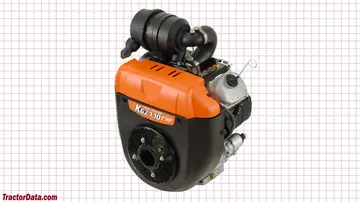

Engine Detail — 768 cc / 46.9 ci Gasoline
Manufacturer | Kubota KGZ770-E2-MA1 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 768 cc
46.9 ci |
Bore/Stroke | 3.31x2.72 inches
84 x 69 mm |
Power (gross) | 27 hp
20.1 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.1 qts
2.0 L |
Kubota ZG327 Engine | |
|---|---|
![]() |
Transmission
![]() | 2008 - ????
Z300 SeriesZero-turn mower |
|---|---|
2008 - ???? | |
Z300 Series | |
Zero-turn mower | |
2008 - ???? | |
|---|---|
Z300 Series | |
Zero-turn mower |

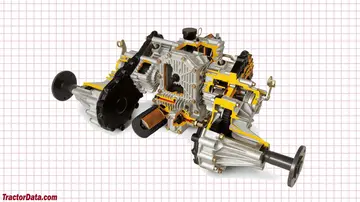

Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 12.8 qts
12.1 L |
![]() | |
Kubota ZG327 Transmission | |
|---|---|
![]() |
Dimensions
![]() | 2008 - ????
Z300 SeriesZero-turn mower |
|---|---|
2008 - ???? | |
Z300 Series | |
Zero-turn mower | |
2008 - ???? | |
|---|---|
Z300 Series | |
Zero-turn mower |
Kubota ZG327 Tires | |
|---|---|
Lawn/turf front | 15x6.0-6 |
Lawn/turf rear | 26x12.0-12 |
Dimensions | |
|---|---|
Wheelbase | 55.5 inches
140 cm |
Length | 87.8 inches
223 cm |
Width | 57.5 inches
146 cm |
Height (ROPS) | 75.4 inches
191 cm |
Height (Folded ROPS) | 61.2 inches
155 cm |
Weight | 1565 lbs
709 kg |
Front tread | 38.4 inches
97 cm |
Rear tread | 45.3 inches
115 cm |
Attachments
![]() | 2008 - ????
Z300 SeriesZero-turn mower |
|---|---|
2008 - ???? | |
Z300 Series | |
Zero-turn mower | |
2008 - ???? | |
|---|---|
Z300 Series | |
Zero-turn mower |
60" Mower deck | |
|---|---|
Type | mid-mount Kubota RCK60P-327Z |
3-blade | |
Cutting width | 60 inches
152 cm |
Overall width | 75.2 inches
191 cm |
Cut height | 1 to 5 inch
2 to 12 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota ZG327 based on its 27 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota ZG327.
Estimated Continuous Field Runtime: 9 hrs
Approximately 9 hours of continuous field operation at ~75% rated power on a full tank (12.7 gal / 48.1 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota ZG327 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZG327.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota ZG327 against same-era industry alternatives in the same horsepower class.
Kubota ZG327
