Kubota ZG227

The Kubota ZG227 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 768 cc 46.9 ci engine. The listed engine power is Gasoline (gross): 27 hp / 20.1 kW. Transmission: infinite forward and reverse. Operating weight: 1190 lbs (54-inch) 539 kg.

Overview

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower
Original price	$9,894 (2015 54 )
	$10,190 (2015 60 )
	$10,799 (2021 54 )

Kubota ZG227 Engine
27HP Kubota 768cc 2-cyl gasoline
Fuel tank	7.1 gal 26.9 L
Engine details ...

Kubota ZG227 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Wet discs brakes
Two-post foldable ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	hydraulic wet disc

Dimensions & Tires
Wheelbase	51 inches 129 cm
Weight	1190 to 1235 pounds
Front tire	13x5.0-6
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	13.4
Charging volts	12
Battery CCA	300
Battery volts	12

References
Z200/Z300 Series published in 2016, by Kubota
ZG Series published in 2019, by Kubota

Engine

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

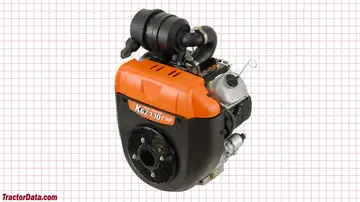

Engine Detail — 768 cc / 46.9 ci Gasoline

Manufacturer	Kubota KGZ770-E2-MA2
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft V-Twin
Displacement	768 cc 46.9 ci
Bore/Stroke	3.31x2.72 inches 84 x 69 mm
Power (gross)	27 hp 20.1 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2.1 qts 2.0 L

Kubota ZG227 Engine

Transmission

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

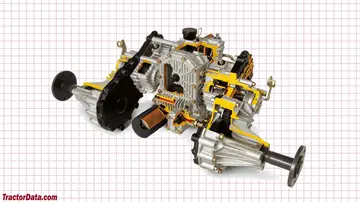

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	7.9 qts 7.5 L

Kubota ZG227 Transmission

Dimensions

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Kubota ZG227 Tires
Lawn/turf front	13x5.0-6
Lawn/turf rear	23x10.5-12

Dimensions
Wheelbase	51 inches 129 cm
Length	83.7 inches 212 cm
Width	47.7 inches 121 cm
Height (ROPS)	69.9 inches 177 cm
Height (Folded ROPS)	52.8 inches 134 cm
Weight	1190 lbs (54-inch) 539 kg
	1235 lbs (60-inch) 560 kg
Front tread	34.3 inches 87 cm
Rear tread	36.6 inches 92 cm

Attachments

	2008 - ???? Z200 SeriesZero-turn mower
2008 - ????
Z200 Series
Zero-turn mower

2008 - ????
Z200 Series
Zero-turn mower

Attachment overview
54" mid-mount mower deck
60" mid-mount mower deck

Photos

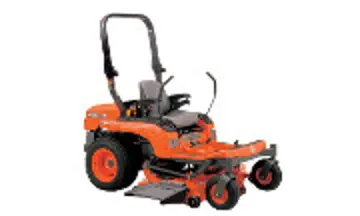

Kubota ZG227 tractor photo
