Kubota F3990

The Kubota F3990 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1498 cc 91.4 ci engine. The listed engine power is Diesel (listed): 39 hp / 29.1 kW. Transmission: infinite forward and reverse. Drive type: 4x4 4WD. Operating weight: 1716 lbs 778 kg.

Engine Power
Diesel (listed): 39 hp / 29.1 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
16.1 gal 60.9 L
Transmission
infinite forward and reverse
Operating Weight
1716 lbs 778 kg

Overview

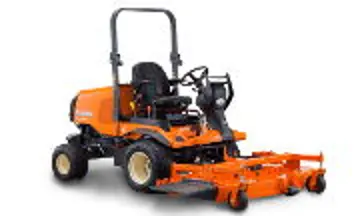

Kubota F3990 tractor photo
2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower
2014 -
F90 Series
Front-mount mower
Production
Manufacturer
Kubota
Front-mount mower
Kubota F3990 Engine
39HP Kubota 1498cc 4-cyl diesel
Fuel tank
16.1 gal 60.9 L
Engine details ...
Kubota F3990 Transmission
hydrostatic
Transmission details ...
Mechanical
Drive
4x4 4WD
Differential lock
standard
Power steering
Wet disc brakes
Two-post foldable ROPS.
Power Take-off (PTO)
Front PTO
independent
Clutch
hydraulic wet disc
Front PTO Type
2580
Engine RPM
$26,915@2015@@@@60-inch
Dimensions & Tires
Wheelbase
51.2 inches 130 cm
Weight
1716 lbs 778 kg
Front tire
24x12-12
Rear tire
18x9.5-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
60
Charging volts
12
Battery volts
12

Engine

Kubota F3990 tractor photo
2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower
2014 -
F90 Series
Front-mount mower

Engine Detail — 1498 cc / 91.4 ci Diesel

Manufacturer
Kubota V1505
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
1498 cc 91.4 ci
Bore/Stroke
3.071x3.087 inches 78 x 78 mm
Emissions
Tier IV
Power
39 hp 29.1 kW
Air cleaner
dual elment dry
Starter
electric
Starter volts
12

Transmission

Kubota F3990 tractor photo
2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower
2014 -
F90 Series
Front-mount mower

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
F3990  hydrostatic speeds

Dimensions

Kubota F3990 tractor photo
2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower
2014 -
F90 Series
Front-mount mower
Kubota F3990 Tires
Lawn/turf front
24x12-12
Lawn/turf rear
18x9.5-8
Dimensions
Wheelbase
51.2 inches 130 cm
Length
98.9 inches 251 cm
Width
78.1 inches 198 cm
Height (ROPS)
78.1 inches 198 cm
Weight
1716 lbs 778 kg
Ground clearance
9.3 inches 23 cm
Front tread
41.2 inches 104 cm
Rear tread
39.3 inches 99 cm

Attachments

Kubota F3990 tractor photo
2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower
2014 -
F90 Series
Front-mount mower
Attachment overview
60" front-mount mower deck
72" front-mount mower deck

Photos

Kubota F3990 tractor photo

Kubota F3990 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota F3990 based on its 39 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota F3990.

Estimated Continuous Field Runtime: 7.9 hrs

Approximately 7.9 hours of continuous field operation at ~75% rated power on a full tank (16.1 gal / 60.9 L).

Estimated 75% Load Fuel Burn~2 gal/hr (7.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota F3990 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota F3990.

Converted Equivalents:

Horsepower (HP)39 hp
Kilowatts (kW)29.1 kW
Metric Horsepower (PS / CV)39.5 PS

Direct Competitor Comparison

Compare Kubota F3990 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota F3990

Engine Power:Diesel (listed): 39 hp / 29.1 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota L3300

Engine Power:35.1
Production Years:1994 - 1999
Massey FergusonMarket Competitor

Massey Ferguson 1635

Engine Power:35.7
Production Years:2009 - 2013
DeereMarket Competitor

Deere 4400

Engine Power:35.7
Production Years:1998 - 2001
CO-OPMarket Competitor

CO-OP 2

Engine Power:35.2
Production Years:1936 - 1946
