Kubota Z422

The Kubota Z422 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (gross): 24 hp / 17.9 kW. Transmission: Hydro-Gear ZT3600. Operating weight: 165 lbs 74 kg.

Engine Power
Gasoline (gross): 24 hp / 17.9 kW
Fuel & Capacities
6.8 gal 25.7 L
Transmission
Hydro-Gear ZT3600
Operating Weight
165 lbs 74 kg

Overview

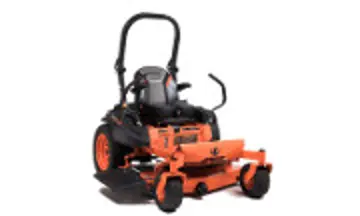

Kubota Z422 tractor photo
2020 - Z400 SeriesZero-turn mower
2020 -
Z400 Series
Zero-turn mower
2020 -
Z400 Series
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Original price was $7,149 in 2021
Variants
Z421
standard
Z422
deluxe
Kubota Z422 Engine
24HP Kawasaki 726cc 2-cyl gasoline
Fuel tank
6.8 gal 25.7 L
Engine details ...
Kubota Z422 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Two-post folding ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
49.4 inches 125 cm
Weight
918 lbs 416 kg
Front tire
13x6.5-6
Rear tire
24x9.5-14
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery CCA
300
Battery volts
12
References
Z422 references literature
Z400 Series published in 2020, by Kubota

Engine

Kubota Z422 tractor photo
2020 - Z400 SeriesZero-turn mower
2020 -
Z400 Series
Zero-turn mower
2020 -
Z400 Series
Zero-turn mower

Engine Detail — 726 cc / 44.3 ci Gasoline

Manufacturer
Kawasaki FS730V
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
726 cc 44.3 ci
Bore/Stroke
3.07x2.99 inches 78 x 76 mm
Power (gross)
24 hp 17.9 kW
Starter
electric
Starter volts
12

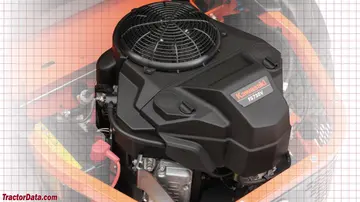

Kubota Z422 Engine
Kubota Z422 engine image

Transmission

Kubota Z422 tractor photo
2020 - Z400 SeriesZero-turn mower
2020 -
Z400 Series
Zero-turn mower
2020 -
Z400 Series
Zero-turn mower

Transmission — Hydro-Gear ZT3600

Transmission
Hydro-Gear ZT3600
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Z422 ZT3600 belt-driven hydrostatic speeds

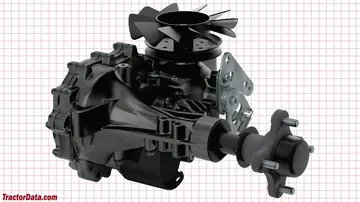

Kubota Z422 Transmission
Kubota Z422 transmission image

Dimensions

Kubota Z422 tractor photo
2020 - Z400 SeriesZero-turn mower
2020 -
Z400 Series
Zero-turn mower
2020 -
Z400 Series
Zero-turn mower
Kubota Z422 Tires
Lawn/turf front
13x6.5-6
Lawn/turf rear
24x9.5-14
Dimensions
Wheelbase
49.4 inches 125 cm
Length
80.9 inches 205 cm
Width
48.7 inches 123 cm
Height (ROPS)
69.8 inches 177 cm
Height (Folded ROPS)
49.8 inches 126 cm
Weight
918 lbs 416 kg
Front tread
37.2 inches 94 cm
Rear tread
39.4 inches 100 cm

Attachments

Kubota Z422 tractor photo
2020 - Z400 SeriesZero-turn mower
2020 -
Z400 Series
Zero-turn mower
2020 -
Z400 Series
Zero-turn mower
54" Mower deck
Type
mid-mount Kubota RCK54P-400Z
3-blade with manual lift
Cutting width
54 inches 137 cm
Weight
165 lbs 74 kg
Overall width
67.3 inches 170 cm
Cut height
1.5 to 5 inch 3 to 12 cm

Photos

Kubota Z422 tractor photo

Kubota Z422 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota Z422 based on its 24 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z422.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (6.8 gal / 25.7 L).

Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota Z422 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z422.

Converted Equivalents:

Horsepower (HP)24 hp
Kilowatts (kW)17.9 kW
Metric Horsepower (PS / CV)24.3 PS

Direct Competitor Comparison

Compare Kubota Z422 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota Z422

Engine Power:Gasoline (gross): 24 hp / 17.9 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota T22

Engine Power:21.6
Production Years:1999 - 1999
Allis ChalmersMarket Competitor

Allis Chalmers C

Engine Power:21.6
Production Years:1940 - 1949
MitsubishiMarket Competitor

Mitsubishi GSK226

Engine Power:21.6
Production Years:2018 - 2026
IsekiMarket Competitor

Iseki RTS22

Engine Power:21.6
Production Years:2016 - 2023
