Kubota G1900
The Kubota G1900 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 719 cc 43.88 ci engine. The listed engine power is Diesel (gross): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 706 to 750 pounds.
Overview
![]() | 1989 - 2000
G SeriesGarden tractor
G Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Garden tractor | |
Variants | |
|---|---|
G1900 | two-wheel steer |

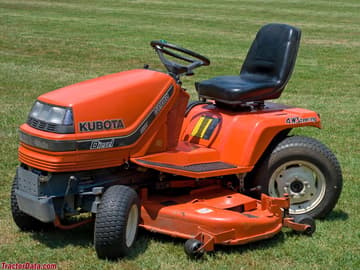

G1900S | four-wheel steer |
Kubota G1900 Engine | |
|---|---|
18HP Kubota 719cc 3-cyl diesel | |
Fuel tank | 5 gal
18.9 L |
Engine details ... | |
Kubota G1900 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Internal expanding shoe brakes | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 51 inches
129 cm |
Weight | 706 to 750 pounds |
Front tire | 16x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 12.5 |
Battery volts | 12 |
Battery AH | 45 |
References | |
|---|---|
![]() | |
Product Catalog published in 1990, by Kubota | |
1999 Products published by Kubota |
Engine
Engine Detail — 719 cc / 43.88 ci Diesel
Manufacturer | Kubota D722 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled horizontal-shaft inline |
Displacement | 719 cc
43.88 ci |
Power (gross) | 18 hp
13.4 kW |
Fuel system | indirect injection |
Air cleaner | paper element |
Starter volts | 12 |

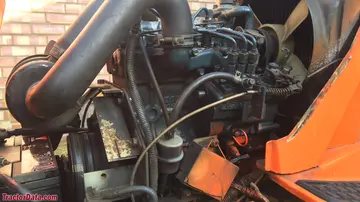

Kubota G1900 Engine | |
|---|---|
![]() | |
Image courtesy of Sorin Lungoci |
Transmission
Transmission — infinite forward and reverse shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
Kubota G1900 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x10.5-12 |
23x8.5-12 | |
Dimensions | |
|---|---|
Wheelbase | 51 inches
129 cm |
Length | 73.4 inches
186 cm |
Width | 40.7 inches
103 cm |
Height | 45.7 inches
116 cm |
G1900 Weight | 706 lbs
320 kg |
G1900S Weight | 750 lbs
340 kg |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
54" mid-mount mower deck | |
60" mid-mount mower deck | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota G1900 based on its 18 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota G1900.
Estimated Continuous Field Runtime: 5.3 hrs
Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota G1900 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota G1900.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota G1900 against same-era industry alternatives in the same horsepower class.
Kubota G1900
International Harvester Type A 15HP
