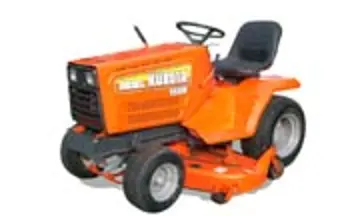

Kubota G3200

The Kubota G3200 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 399 cc 24.4 ci engine. The listed engine power is Diesel (gross): 10 hp / 7.5 kW; Diesel (listed): 0.94 hp / 0.7 kW. Transmission: 3 forward and 1 reverse. Operating weight: 683.5 lbs 310 kg.

Overview

	1983 - 1988 G SeriesGarden tractor G Series Garden tractor

Production
Manufacturer	Kubota
Garden tractor

Kubota G3200 Engine
10HP Kubota 399cc 2-cyl diesel
Fuel tank	2.1 gal 7.9 L
Engine details ...

Kubota G3200 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	2000
Front PTO	independent
Clutch	manual idler pulley
Front PTO Type	1-inch

Dimensions & Tires
Wheelbase	47.2 inches 119 cm
Weight	683.5 lbs 310 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	35

References
Diesel Lawn and Garden Tractors published in 1984, by Kubota*
*Publication contains known errors.

Engine

Engine Detail — 399 cc / 24.4 ci Diesel

Manufacturer	Kubota Z400
Fuel Type	Diesel
Configuration	2-cylinder, liquid-cooled horizonal-shaft
Displacement	399 cc 24.4 ci
Bore/Stroke	2.52x2.45 inches 64 x 62 mm
Power (gross)	10 hp 7.5 kW
Pre-heating	glow plugs
Rated RPM	3200
Starter	electric
Starter volts	12
Starter power	0.94 hp 0.7 kW
Coolant capacity	2 qts 1.9 L

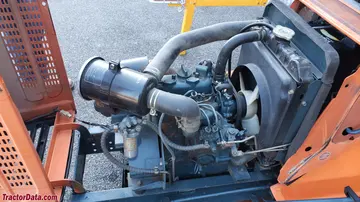

Kubota G3200 Engine
Image courtesy of J. McCracken

Transmission

Transmission — 3 forward and 1 reverse gear

Type	gear
Gears	3 forward and 1 reverse
Clutch	double dry disc
Oil capacity	8.5 qts 8.0 L

Dimensions

Kubota G3200 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	47.2 inches 119 cm
Length	70.9 inches 180 cm
Min Width	37.8 inches 96 cm
Max Width	40.2 inches 102 cm
Height	44.3 inches 112 cm
Ground clearance	6.7 inches 17 cm
Front tread	29.1 inches 73 cm
Rear tread	27.4/29.7 inches 69/75 cm

Kubota G3200 Weight
	683.5 lbs 310 kg
Max capacity	1540 lbs 698 kg
Max front axle	660 lbs 299 kg
Max rear axle	1210 lbs 548 kg

Attachments

Attachment overview
40" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

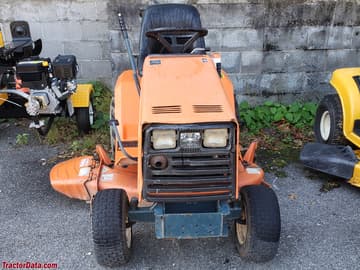

Kubota G3200
