Kubota Z231BR

The Kubota Z231BR is a tractor produced by Kubota Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (listed): 22 hp / 16.4 kW. Transmission: Hydro-Gear ZT3100. Operating weight: 737 lbs 334 kg.

Engine Power
Gasoline (listed): 22 hp / 16.4 kW
Fuel & Capacities
4.3 gal 16.3 L
Transmission
Hydro-Gear ZT3100
Operating Weight
737 lbs 334 kg

Overview

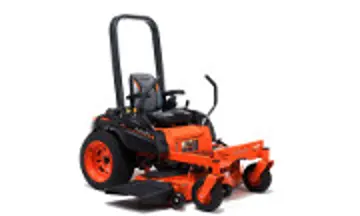

Kubota Z231BR tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Original price was $4,699 in 2021
Kubota Z231BR Engine
22HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank
4.3 gal 16.3 L
Engine details ...
Kubota Z231BR Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Two-post fixed ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
45.5 inches 115 cm
Weight
737 lbs 334 kg
Front tire
11x4-5
Rear tire
22x10-14
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
16
Battery CCA
300
Battery volts
12

Engine

Kubota Z231BR tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer
Briggs & Stratton 44S6
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
724 cc 44.2 ci
Bore/Stroke
3.12x2.89 inches 79 x 73 mm
Power
22 hp 16.4 kW
Starter
electric
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Kubota Z231BR tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower

Transmission — Hydro-Gear ZT3100

Transmission
Hydro-Gear ZT3100
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil capacity
2.4 qts 2.3 L
Z231BR ZT3100 belt-driven hydrostatic speeds

Dimensions

Kubota Z231BR tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower
Kubota Z231BR Tires
Lawn/turf front
11x4-5
Lawn/turf rear
22x10-14
Dimensions
Wheelbase
45.5 inches 115 cm
Length
76.4 inches 194 cm
Width
47.5 inches 120 cm
Height (ROPS)
65 inches 165 cm
Weight
737 lbs 334 kg
Front tread
31.3 inches 79 cm
Rear tread
37.6 inches 95 cm

Attachments

Kubota Z231BR tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower
48" Mower deck
Type
mid-mount Kubota RCK48P-124Z
3-blade with manual lift
Cutting width
48 inches 121 cm
Overall width
61.1 inches 155 cm
Cut height
1.5 to 4.25 inch 3 to 10 cm

Photos

Kubota Z231BR tractor photo

Kubota Z231BR tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota Z231BR based on its 22 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z231BR.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.3 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota Z231BR Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z231BR.

Converted Equivalents:

Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS

Direct Competitor Comparison

Compare Kubota Z231BR against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota Z231BR

Engine Power:Gasoline (listed): 22 hp / 16.4 kW
★ Baseline Reference
FordMarket Competitor

Ford 1500

Engine Power:19.8
Production Years:1979 - 1982
New HollandMarket Competitor

New Holland 1320

Engine Power:20
Production Years:1996 - 1998
Massey FergusonMarket Competitor

Massey Ferguson 205

Engine Power:20
Production Years:1978 - 1984
CaseIHMarket Competitor

CaseIH 244

Engine Power:20
Production Years:1984 - 1986
