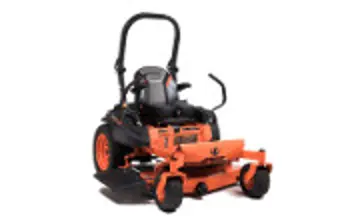

Kubota Z422T
The Kubota Z422T is a tractor produced by Kubota Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (gross): 24 hp / 17.9 kW. Transmission: Hydro-Gear ZT3600. Operating weight: 165 lbs 74 kg.
Overview
![]() | 2020 -
Z400 SeriesZero-turn mower |
|---|---|
2020 - | |
Z400 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
Z400 Series | |
Zero-turn mower |
Production | |
|---|---|
Manufacturer | Kubota |
Zero-turn mower | |
Original price was $7,649 in 2021 | |
Variants | |
|---|---|
Z421T | standard |
Z422T | deluxe |
Kubota Z422T Engine | |
|---|---|
24HP Kawasaki 726cc 2-cyl gasoline | |
Fuel tank | 6.8 gal
25.7 L |
Engine details ... | |
Kubota Z422T Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Two-post folding ROPS. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49.4 inches
125 cm |
Weight | 954 lbs
432 kg |
Front tire | 13x6.5-6 |
Rear tire | 24x12-14 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 15 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
![]() | |
Z400 Series published in 2020, by Kubota |
Engine
![]() | 2020 -
Z400 SeriesZero-turn mower |
|---|---|
2020 - | |
Z400 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
Z400 Series | |
Zero-turn mower |

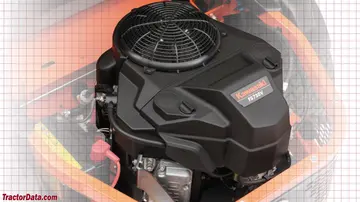

Engine Detail — 726 cc / 44.3 ci Gasoline
Manufacturer | Kawasaki FS730V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
Displacement | 726 cc
44.3 ci |
Bore/Stroke | 3.07x2.99 inches
78 x 76 mm |
Power (gross) | 24 hp
17.9 kW |
Starter | electric |
Starter volts | 12 |
Kubota Z422T Engine | |
|---|---|
![]() |
Transmission
![]() | 2020 -
Z400 SeriesZero-turn mower |
|---|---|
2020 - | |
Z400 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
Z400 Series | |
Zero-turn mower |

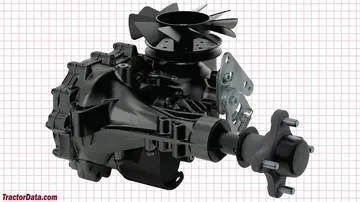

Transmission — Hydro-Gear ZT3600
Transmission | Hydro-Gear ZT3600 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Kubota Z422T Transmission | |
|---|---|
![]() |
Dimensions
![]() | 2020 -
Z400 SeriesZero-turn mower |
|---|---|
2020 - | |
Z400 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
Z400 Series | |
Zero-turn mower |
Kubota Z422T Tires | |
|---|---|
Lawn/turf front | 13x6.5-6 |
Lawn/turf rear | 24x12-14 |
Dimensions | |
|---|---|
Wheelbase | 49.4 inches
125 cm |
Length | 80.9 inches
205 cm |
Width | 54.2 inches
137 cm |
Height (ROPS) | 69.8 inches
177 cm |
Height (Folded ROPS) | 49.8 inches
126 cm |
Front tread | 37.2 inches
94 cm |
Rear tread | 42.1 inches
106 cm |
Kubota Z422T Weight | |
|---|---|
954 lbs
432 kg | |
Max capacity | 1473 lbs
668 kg |
Max Drawbar | 75 lbs
34 kg |
Max front axle | 249 lbs
112 kg |
Max rear axle | 1225 lbs
555 kg |
Tow capacity | 250 lbs
113 kg |
Attachments
![]() | 2020 -
Z400 SeriesZero-turn mower |
|---|---|
2020 - | |
Z400 Series | |
Zero-turn mower | |
2020 - | |
|---|---|
Z400 Series | |
Zero-turn mower |
60" Mower deck | |
|---|---|
Type | mid-mount Kubota RCK60P-400Z |
3-blade with manual lift | |
Cutting width | 60 inches
152 cm |
Weight | 165 lbs
74 kg |
Overall width | 73.6 inches
186 cm |
Cut height | 1.5 to 5 inch
3 to 12 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota Z422T based on its 24 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z422T.
Estimated Continuous Field Runtime: 5.4 hrs
Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (6.8 gal / 25.7 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota Z422T Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z422T.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota Z422T against same-era industry alternatives in the same horsepower class.
