Kubota G6200

The Kubota G6200 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 637 cc 38.9 ci engine. The listed engine power is Diesel (gross): 16 hp / 11.9 kW; Diesel (listed): 1.1 hp / 0.8 kW. Transmission: infinite forward and reverse. Operating weight: 738.5 lbs 334 kg.

Overview

	1986 - 1990 G SeriesGarden tractor G Series Garden tractor

Production
Manufacturer	Kubota
Garden tractor
Original price	$5,480 (1987 )
	$6,400 (1989 )

Kubota G6200 Engine
16HP Kubota 637cc 3-cyl diesel
Fuel tank	2.1 gal 7.9 L
Engine details ...

Kubota G6200 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Dimensions & Tires
Weight	738.5 lbs 334 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	45

Engine

Engine Detail — 637 cc / 38.9 ci Diesel

Manufacturer	Kubota D640
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	637 cc 38.9 ci
Bore/Stroke	2.60x2.45 inches 66 x 62 mm
Power (gross)	16 hp 11.9 kW
Pre-heating	glow plugs
Rated RPM	3200
Starter volts	12
Starter power	1.1 hp 0.8 kW
Oil capacity	3.2 qts 3.0 L
Coolant capacity	2.2 qts 2.1 L

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	8.0 qts 7.6 L

Dimensions

Kubota G6200 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Length	70.9 inches 180 cm
Min Width	37.8 inches 96 cm
Max Width	40.2 inches 102 cm
Height	45.3 inches 115 cm
Ground clearance	6.7 inches 17 cm
Front tread	29.1 inches 73 cm
Rear tread	27.4/29.7 inches 69/75 cm

Kubota G6200 Weight
	738.5 lbs 334 kg
Max capacity	1540 lbs 698 kg
Max front axle	660 lbs 299 kg
Max rear axle	1210 lbs 548 kg

Attachments

Attachment overview
40" mid-mount mower deck
44" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

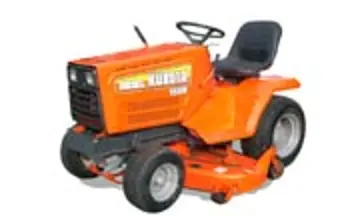

Kubota G6200
