Kubota GF1800

The Kubota GF1800 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 719 cc 43.9 ci engine. The listed engine power is Diesel (listed): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Drive type: 4x2 2WD. Operating weight: 880 to 1100 pounds.

Overview

	1994 - 2005 GF SeriesFront-mount mower GF Series Front-mount mower

Production
Manufacturer	Kubota
Front-mount mower

Variants
GF1800	4WD
GF1800E	2WD

Kubota GF1800 Engine
18HP Kubota 719cc 3-cyl diesel
Fuel tank	5.3 gal 20.1 L
Engine details ...

Kubota GF1800 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	4x2 2WD
	4x4 4WD
Manual steering
Two-post ROPS

Power Take-off (PTO)
Front PTO	independent
Clutch	electro-hydraulic

Dimensions & Tires
Wheelbase	33.5 inches 85 cm
Weight	880 to 1100 pounds
Front tire	20x10.8-8
Rear tire	16x6.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Diesel Front Mower GF1800/GF1800E published in 1995, by Kubota
Diesel Front Mower GF1800E published in 1993, by Kubota
1999 Products published by Kubota

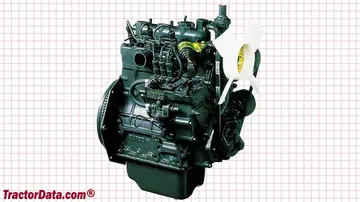

Engine

Engine Detail — 719 cc / 43.9 ci Diesel

Manufacturer	Kubota D722
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	719 cc 43.9 ci
Bore/Stroke	2.64x2.68 inches 67 x 68 mm
Power	18 hp 13.4 kW
Rated RPM	3200
Starter	electric
Starter volts	12

Kubota GF1800 Engine

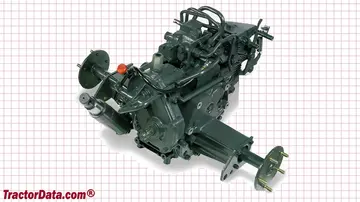

Transmission

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Kubota GF1800 Transmission

Dimensions

Kubota GF1800 Tires
Lawn/turf front	20x10.8-8
Lawn/turf rear	16x6.50-8

Dimensions
Wheelbase	33.5 inches 85 cm
Length	93.1 inches 236 cm
Width	38 inches 96 cm
Height (ROPS)	75.2 inches 191 cm
2WD Weight	880 lbs 399 kg
4WD Weight	1100 lbs 498 kg
Front tread	28.5 inches 72 cm
Rear tread	31.7 inches 80 cm

Attachments

Attachment overview
48" front-mount mower deck
54" front-mount mower deck
60" front-mount mower deck
Snowblower
Blade

Photos

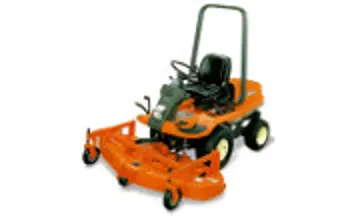

Kubota GF1800 tractor photo
