Kubota T1880

The Kubota T1880 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 596 cc 36.4 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW; Gasoline (gross): 18 hp / 13.4 kW. Transmission: Hydro-Gear G7. Operating weight: 617 lbs*Weight with 42-inch mower deck. 279 kg.

Overview

	2008 - 2017 T80 SeriesLawn tractor T80 Series Lawn tractor

Production
Manufacturer	Kubota
Lawn tractor
Original price	$3,598 (2011 )
	$3,699 (2019 )

Kubota T1880 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Dimensions & Tires
Wheelbase	50.8 inches 129 cm
Weight	617 lbs 279 kg
Front tire	15x6.00-6
Rear tire	22x11.00-10
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery volts	12

References
T Series published in 2014, by Kubota
Operator's Manaul Models T1880, T2080, T2380 (K1032-7122-1) published in 2014

Engine

Engine options
18HP Kohler 534cc 1-cyl gasoline
18HP Kohler 596cc 1-cyl gasoline

Engine Detail — 534 cc / 32.6 ci Gasoline

Manufacturer	Kohler GH540V
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	534 cc 32.6 ci
Power (gross)	18 hp 13.4 kW
Starter	electric
Starter volts	12
Oil capacity	1.6 qts 1.5 L

Engine Detail — 596 cc / 36.4 ci Gasoline

Manufacturer	Kohler
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	596 cc 36.4 ci
Power (gross)	18 hp 13.4 kW
Air cleaner	dual element
Rated RPM	3200
Starter	electric
Starter volts	12

Transmission

Transmission — Hydro-Gear G7

Transmission	Hydro-Gear G7
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.9 qts 2.7 L
Hydrostatic transmission controlled by treadle foot pedal. Cruise control optional.

Dimensions

Kubota T1880 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	22x11.00-10

Dimensions
Wheelbase	50.8 inches 129 cm
Length	72.8 inches 184 cm
Width	54.8 inches 139 cm
Height	42.9 inches 108 cm
Weight	617 lbs*Weight with 42-inch mower deck. 279 kg
Front tread	30.8 inches 78 cm
Rear tread	28.6 inches 72 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade

42" Mower deck
Type	mid-mount Kubota RCK42-LT20
	2-blade with manual lift
Cutting width	42 inches 106 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

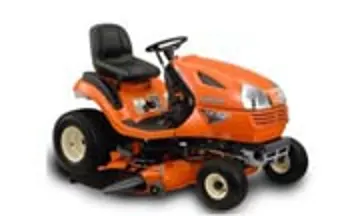

Kubota T1880 tractor photo
