Kubota T2290KWT

The Kubota T2290KWT is a tractor produced by Kubota Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (gross): 21.5 hp / 16.0 kW. Transmission: Hydro-Gear G730. Operating weight: 250 lbs 113 kg.

Engine Power
Gasoline (gross): 21.5 hp / 16.0 kW
Fuel & Capacities
3.6 gal 13.6 L
Transmission
Hydro-Gear G730
Operating Weight
250 lbs 113 kg

Overview

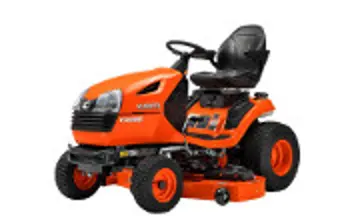

Kubota T2290KWT tractor photo
2018 - T90 SeriesLawn tractor
2018 -
T90 Series
Lawn tractor
Production
Manufacturer
Kubota
Lawn tractor
Original price was $5,169 in 2019
Kubota T2290KWT Engine
21.5HP Kawasaki 726cc 2-cyl gasoline
Fuel tank
3.6 gal 13.6 L
Engine details ...
Kubota T2290KWT Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
51 inches 129 cm
Weight
661 lbs 299 kg
Front tire
16x6.0-8
Rear tire
22x10.0-10
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery CCA
300
Battery volts
12
References
T2290KWT references literature
T Series published in 2017, by Kubota

Engine

Engine Detail — 726 cc / 44.3 ci Gasoline

Manufacturer
Kawasaki FR651V
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
726 cc 44.3 ci
Bore/Stroke
3.071x2.992 inches 78 x 76 mm
Power (gross)
21.5 hp 16.0 kW
Air cleaner
dual dry element
Torque
39.3 lb-ft 53.3 Nm
Torque RPM
2200
Starter
electric
Starter volts
12
Oil capacity
2.2 qts 2.1 L

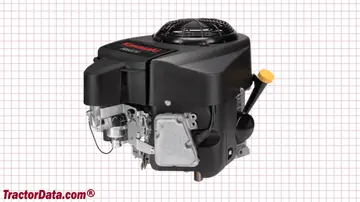

Kubota T2290KWT Engine
Kubota T2290KWT engine image

Transmission

Transmission — Hydro-Gear G730

Transmission
Hydro-Gear G730
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
T2290KWT G730 belt-driven hydrostatic speeds

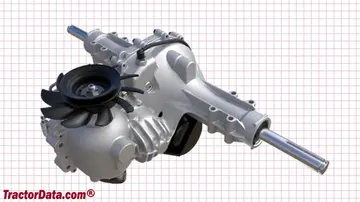

Kubota T2290KWT Transmission
Kubota T2290KWT transmission image

Dimensions

Kubota T2290KWT Tires
Lawn/turf front
16x6.0-8
Lawn/turf rear
22x10.0-10
Dimensions
Wheelbase
51 inches 129 cm
Length
75.2 inches 191 cm
Width
39.8 inches 101 cm
Height (steering wheel)
51.6 inches 131 cm
Weight
661 lbs*Weight with mower deck. 299 kg
Ground clearance
5.7 inches 14 cm
Front tread
32.1 inches 81 cm
Rear tread
29.7 inches 75 cm

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade
48" Mower deck
Type
mid-mount Kubota RCK48P-90T
3-blade with manual lift
Cutting width
48 inches 121 cm
Weight
250 lbs 113 kg
Overall width
60.6 inches 153 cm
Cut height
1 to 4 inch 2 to 10 cm

Photos

Kubota T2290KWT lawn tractor.

Kubota T2290KWT lawn tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota T2290KWT based on its 21.5 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota T2290KWT.

Estimated Continuous Field Runtime: 3.2 hrs

Approximately 3.2 hours of continuous field operation at ~75% rated power on a full tank (3.6 gal / 13.6 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota T2290KWT Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota T2290KWT.

Converted Equivalents:

Horsepower (HP)21.5 hp
Kilowatts (kW)16 kW
Metric Horsepower (PS / CV)21.8 PS

Direct Competitor Comparison

Compare Kubota T2290KWT against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota T2290KWT

Engine Power:Gasoline (gross): 21.5 hp / 16.0 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota B2050

Engine Power:19.7
Production Years:2014 - 2024
MahindraMarket Competitor

Mahindra eMax 20S

Engine Power:19.4
Production Years:2017 - 2026
YanmarMarket Competitor

Yanmar F15D

Engine Power:19.5
Production Years:1983 - 1986
KiotiMarket Competitor

Kioti LB1914

Engine Power:19.5
Production Years:1995 - 2008
