Kubota TG1860

The Kubota TG1860 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 719 cc 43.9 ci engine. The listed engine power is Diesel (listed): 18 hp / 13.4 kW. Transmission: infinite forward and reverse. Operating weight: 959 lbs 435 kg.

Engine Power
Diesel (listed): 18 hp / 13.4 kW
Fuel & Capacities
4 gal 15.1 L
Transmission
infinite forward and reverse
Operating Weight
959 lbs 435 kg

Overview

Kubota TG1860 tractor photo
1998 - 2003 TG SeriesLawn tractor TG Series Lawn tractor
Production
Manufacturer
Kubota
Lawn tractor
Variants
TG1860
diesel
TG1860G
gasoline
Kubota TG1860 Engine
18HP Kubota 719cc 3-cyl diesel
Fuel tank
4 gal 15.1 L
Engine details ...
Kubota TG1860 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
power
Open operator station.
Power Take-off (PTO)
Front PTO
independent
Clutch
electric
Dimensions & Tires
Weight
959 lbs 435 kg
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
TG1860 references literature
1999 Products published by Kubota

Engine

Engine Detail — 719 cc / 43.9 ci Diesel

Manufacturer
Kubota D722E
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled horizontal-shaft
Displacement
719 cc 43.9 ci
Bore/Stroke
2.638x2.677 inches 67 x 68 mm
Power
18 hp 13.4 kW
Starter volts
12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse
TG1860  belt-driven hydrostatic speeds

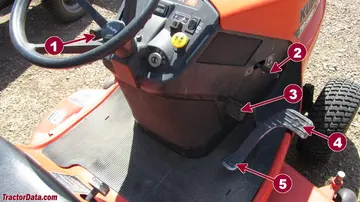

TG1860 Transmission Controls
Kubota TG1860 transmission controls
1
Throttle
2
Parking brake
3
Brake
4
Forward
5
Reverse

Dimensions

Kubota TG1860 Tires
Dimensions
Length
75.8 inches 192 cm
Width
40.2 inches 102 cm
Weight
959 lbs 435 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
Snowblower
Blade

Photos

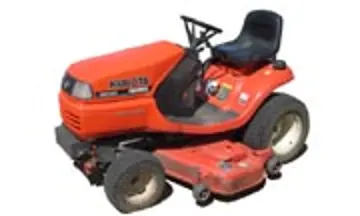

Kubota TG1860

Kubota TG1860

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota TG1860 based on its 18 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota TG1860.

Estimated Continuous Field Runtime: 4.3 hrs

Approximately 4.3 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota TG1860 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota TG1860.

Converted Equivalents:

Horsepower (HP)18 hp
Kilowatts (kW)13.4 kW
Metric Horsepower (PS / CV)18.2 PS

Direct Competitor Comparison

Compare Kubota TG1860 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota TG1860

Engine Power:Diesel (listed): 18 hp / 13.4 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota B72

Engine Power:16.2
Production Years:1998 - 2001
Massey FergusonMarket Competitor

Massey Ferguson 1120

Engine Power:16.6
Production Years:1993 - 1996
International HarvesterMarket Competitor

International Harvester Type A 15HP

Engine Power:16.7
Production Years:1908 - 1911
MitsubishiMarket Competitor

Mitsubishi GF17

Engine Power:16.2
Production Years:2004 - 2005
