Kubota Z122E

The Kubota Z122E is a tractor produced by Kubota Lawn Tractors. It is equipped with a 724 cc 44.2 ci engine. The listed engine power is Gasoline (gross): 22 hp / 16.4 kW. Transmission: Hydro-Gear ZT3100. Operating weight: 737 lbs 334 kg.

Overview

	2014 - 2019 Z100 SeriesZero-turn mower Z100 Series Zero-turn mower

Production
Manufacturer	Kubota
Zero-turn mower
Original price was $5,018 in 2015

Kubota Z122E Engine
22HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	4.3 gal 16.3 L
Engine details ...

Kubota Z122E Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	differential power
Two-post fixed ROPS.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric dry disc

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	737 lbs 334 kg
Front tire	11x4-5
Rear tire	22x10-14
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	16
Battery CCA	300
Battery volts	12

References
Z100 Series published in 2014, by Kubota

Engine

Engine Detail — 724 cc / 44.2 ci Gasoline

Manufacturer	Briggs & Stratton Professional
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	724 cc 44.2 ci
Power (gross)	22 hp 16.4 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

Transmission

Transmission — Hydro-Gear ZT3100

Transmission	Hydro-Gear ZT3100
Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.4 qts 2.3 L

Dimensions

Kubota Z122E Tires
Lawn/turf front	11x4-5
Lawn/turf rear	22x10-14

Dimensions
Wheelbase	45.5 inches 115 cm
Length	76.4 inches 194 cm
Width	47.5 inches 120 cm
Height (ROPS)	65 inches 165 cm
Weight	737 lbs 334 kg
Front tread	31.3 inches 79 cm
Rear tread	37.6 inches 95 cm

Attachments

48" Mower deck
Type	mid-mount Kubota RCK48P-124Z
	3-blade
Cutting width	48 inches 121 cm
Overall width	61.1 inches 155 cm
Cut height	1.5 to 4.5 inch 3 to 11 cm

Photos

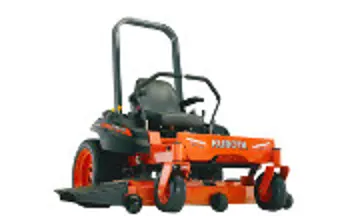

Kubota Z122E tractor photo
