Kubota Z231KW

The Kubota Z231KW is a tractor produced by Kubota Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (listed): 21.5 hp / 16.0 kW. Transmission: Hydro-Gear ZT2200. Operating weight: 621 lbs 281 kg.

Engine Power
Gasoline (listed): 21.5 hp / 16.0 kW
Fuel & Capacities
3.6 gal 13.6 L
Transmission
Hydro-Gear ZT2200
Operating Weight
621 lbs 281 kg

Overview

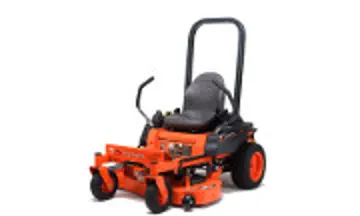

Kubota Z231KW tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Original price was $3,969 in 2021
Kubota Z231KW Engine
21.5HP Kawasaki 726cc 2-cyl gasoline
Fuel tank
3.6 gal 13.6 L
Engine details ...
Kubota Z231KW Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Two-post fixed ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
48.5 inches 123 cm
Weight
621 lbs 281 kg
Front tire
11x4-5
Rear tire
18x7.5-14
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery CCA
300
Battery volts
12
References
Z231KW references literature
Z200 Series published in 2019, by Kubota

Engine

Kubota Z231KW tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower

Engine Detail — 726 cc / 44.3 ci Gasoline

Manufacturer
Kawasaki FR651V
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
726 cc 44.3 ci
Bore/Stroke
3.071x2.992 inches 78 x 76 mm
Power
21.5 hp 16.0 kW
Starter
electric
Starter volts
12
Oil capacity
2.3 qts 2.2 L

Transmission

Kubota Z231KW tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower

Transmission — Hydro-Gear ZT2200

Transmission
Hydro-Gear ZT2200
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil capacity
1.6 qts 1.5 L
Z231KW ZT2200 belt-driven hydrostatic speeds

Dimensions

Kubota Z231KW tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower
Kubota Z231KW Tires
Lawn/turf front
11x4-5
Lawn/turf rear
18x7.5-14
Dimensions
Wheelbase
48.5 inches 123 cm
Length
74.4 inches 188 cm
Width
42.4 inches 107 cm
Height (ROPS)
65.3 inches 165 cm
Weight
621 lbs 281 kg
Front tread
24.3 inches 61 cm
Rear tread
34.8 inches 88 cm

Attachments

Kubota Z231KW tractor photo
2019 - Z200 SeriesZero-turn mower
2019 -
Z200 Series
Zero-turn mower
2019 -
Z200 Series
Zero-turn mower
42" Mower deck
Type
mid-mount Kubota RCK42P-122Z
2-blade with manual lift
Cutting width
42 inches 106 cm
Overall width
55.1 inches 139 cm
Cut height
1.5 to 4.25 inch 3 to 10 cm

Photos

Kubota Z231KW tractor photo

Kubota Z231KW tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota Z231KW based on its 21.5 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z231KW.

Estimated Continuous Field Runtime: 3.2 hrs

Approximately 3.2 hours of continuous field operation at ~75% rated power on a full tank (3.6 gal / 13.6 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota Z231KW Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z231KW.

Converted Equivalents:

Horsepower (HP)21.5 hp
Kilowatts (kW)16 kW
Metric Horsepower (PS / CV)21.8 PS

Direct Competitor Comparison

Compare Kubota Z231KW against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota Z231KW

Engine Power:Gasoline (listed): 21.5 hp / 16.0 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota B2050

Engine Power:19.7
Production Years:2014 - 2024
MahindraMarket Competitor

Mahindra eMax 20S

Engine Power:19.4
Production Years:2017 - 2026
YanmarMarket Competitor

Yanmar F15D

Engine Power:19.5
Production Years:1983 - 1986
KiotiMarket Competitor

Kioti LB1914

Engine Power:19.5
Production Years:1995 - 2008
