Kubota ZD1021

The Kubota ZD1021 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 898 cc 54.8 ci engine. The listed engine power is Diesel (gross): 21.6 hp / 16.1 kW. Transmission: infinite forward and reverse. Operating weight: 1389 lbs 630 kg.

Engine Power
Diesel (gross): 21.6 hp / 16.1 kW
Fuel & Capacities
6.1 gal 23.1 L
Transmission
infinite forward and reverse
Operating Weight
1389 lbs 630 kg

Overview

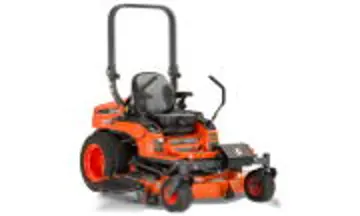

Kubota ZD1021 tractor photo
2016 - ZD1000 SeriesZero-turn mower
2016 -
ZD1000 Series
Zero-turn mower
2016 -
ZD1000 Series
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Kubota ZD1021 Engine
21.6HP Kubota 898cc 3-cyl diesel
Fuel tank
6.1 gal 23.1 L
Engine details ...
Kubota ZD1021 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
hydraulic wet disc
Dimensions & Tires
Wheelbase
54.3 inches 137 cm
Weight
1389 lbs 630 kg
Front tire
13x6.5-6
Rear tire
24x12.0-14
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
14
Charging volts
14
Battery CCA
430
Battery volts
12
References
ZD1021 references literature
ZD Series published in 2015, by Kubota
ZD Series published in 2019, by Kubota

Engine

Kubota ZD1021 tractor photo
2016 - ZD1000 SeriesZero-turn mower
2016 -
ZD1000 Series
Zero-turn mower
2016 -
ZD1000 Series
Zero-turn mower

Engine Detail — 898 cc / 54.8 ci Diesel

Manufacturer
Kubota D902
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
898 cc 54.8 ci
Bore/Stroke
2.83x2.90 inches 72 x 74 mm
Power (gross)
21.6 hp 16.1 kW
Rated RPM
3200
Starter
electric
Starter volts
12

Transmission

Kubota ZD1021 tractor photo
2016 - ZD1000 SeriesZero-turn mower
2016 -
ZD1000 Series
Zero-turn mower
2016 -
ZD1000 Series
Zero-turn mower

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
ZD1021  hydrostatic speeds

Dimensions

Kubota ZD1021 tractor photo
2016 - ZD1000 SeriesZero-turn mower
2016 -
ZD1000 Series
Zero-turn mower
2016 -
ZD1000 Series
Zero-turn mower
Kubota ZD1021 Tires
Lawn/turf front
13x6.5-6
Lawn/turf rear
24x12.0-14
Dimensions
Wheelbase
54.3 inches 137 cm
Length
88 inches 223 cm
Width
55.3 inches 140 cm
Height (ROPS)
74.4 inches 188 cm
56.3 inches*With ROPS folded. 143 cm
Weight
1389 lbs 630 kg
Front tread
40.6 inches 103 cm
Rear tread
38.6 inches 98 cm

Attachments

Kubota ZD1021 tractor photo
2016 - ZD1000 SeriesZero-turn mower
2016 -
ZD1000 Series
Zero-turn mower
2016 -
ZD1000 Series
Zero-turn mower
60" Mower deck
Type
mid-mount Kubota RCK60P-1000Z
3-blade with hydraulic lift
Cutting width
60 inches 152 cm
Overall width
73.8 inches 187 cm
Cut height
1 to 5 inch 2 to 12 cm

Photos

Kubota ZD1021 tractor photo

Kubota ZD1021 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota ZD1021 based on its 21.6 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota ZD1021.

Estimated Continuous Field Runtime: 5.4 hrs

Approximately 5.4 hours of continuous field operation at ~75% rated power on a full tank (6.1 gal / 23.1 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota ZD1021 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota ZD1021.

Converted Equivalents:

Horsepower (HP)21.6 hp
Kilowatts (kW)16.1 kW
Metric Horsepower (PS / CV)21.9 PS
